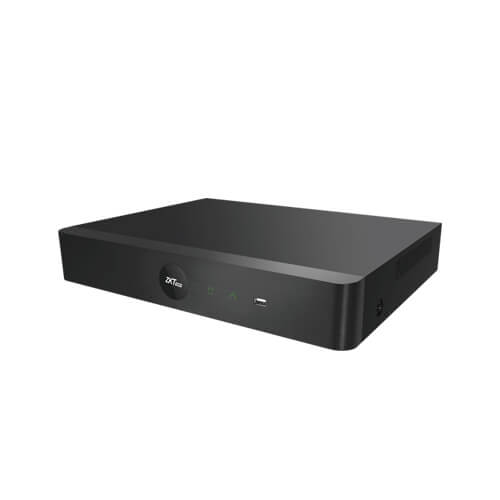

ZKTECO 16-ch NVR Z8516NFR

Features

• H.265+ / H.265 / H.264+ / H.264 Decoding
• Support 16CH 4K Resolution Preview and Playback
• Support HDMI up to 4K output
• DHCP, FTP, DNS, DDNS, NTP, UPNP, RTSP etc.
• ONVIF Profile S Compatible
• Cloud Service, P2P
• Mobile phone remote monitoring (iOS, Android)
• Multi-browser access (IE, Chrome, Firefox, Safari)

Specifications

SYSTEM

• Processor: Multi-core Embedded Processor
• Operation System: Embedded Linux

IVA ALARM

• Local IVA Functions: Target Counting, Object Detection, Intrusion, Tripwire
• Regular Detection: Motion Detection / Video Tampering / Video Loss

I/O PORT AND STORAGE

• Network Interface: 1 RJ-45 port (10/100Mbps)
• USB: 2 x USB 2.0
• HDMI: 1 x 4K HDMI
• VGA: 1 x VGA
• Alarm Input: N/A
• Alarm Output: N/A
• HDD: 2 SATA, up to 8TB capacity for each HDD
• RAID: N/A

PLAYBACK AND BACKUP

• Playback Channel: 16
• Search Mode: IVA Search / Time / Motion Detection
• Playback Function: Play, Stop, Play forward, Play backward, 30 seconds forward, 30 seconds backward, Fast play, Slow play, Single frame play, Hide / Show the time bar, Backup, Snapshot, Full screen
• Backup Mode: USB device / Network

VIDEO / AUDIO

• Max. IPC Input: 16
• Audio Compression: G.711a
• Two-way Talk: N/A

RECORDING

• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Recording Resolution: 8MP / 5MP / 3MP / 1080P / 960P / 720P
• Incoming Bandwidth: 80Mbps
• Bitrate: 16K ~ 8Mpbs
• Record Mode: Manual / External Alarm / Motion / Scheduled / IVA Alarm

NETWORK

• Network Protocol: TCP/IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPoE, UPnP, NTP, P2P
• Max. Online Users: 5
• Mobile Application: AntarView Pro
• Interoperability: Onvif Profile S, SDK

POWER

• Power Supply: DC 12V 3A
• Consumption: ≤20W (Without HDD)

GENERAL

• Working Temperature: -10℃ ~ +55℃
• Working Humidity: 10 ~ 90%
• Dimensions: 325mm * 246mm * 50mm
• Net Weight: 3KG
