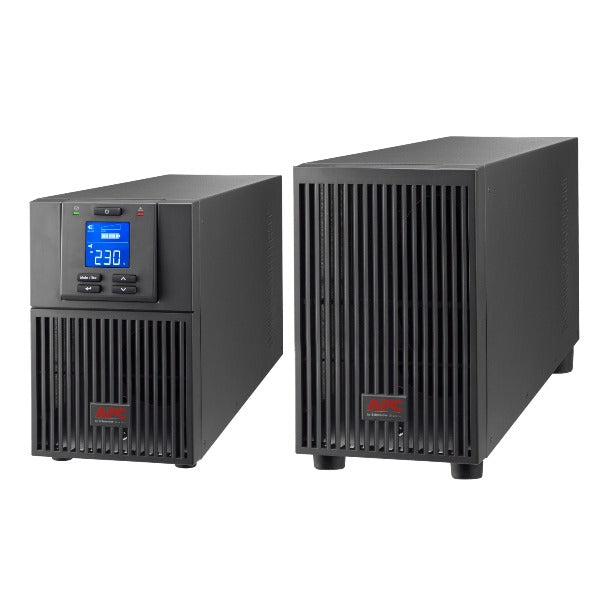

APC Easy UPS On-Line SRV, Ext. Runtime, 1000VA, 3 IEC Sockets, 230V With External Battery, SRV1KiL

APC Easy UPS On-Line SRV, Ext. Runtime, 1000VA, 3 IEC Sockets, 230V With External Battery, SRV1KiL

Regular price 1,986,000.00 TZS
Regular price Sale price 1,986,000.00 TZS
Sale Sold out
18% Vat Inclusive. Shipping calculated at checkout.

Low stock: 4 left

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

  • Output power capacity: 800Watts / 1.0kVA
  • Output Connections: (3) IEC 320 C13
  • Nominal Output Voltage: 230V
  • Nominal Input Voltage: 230V
  • Input Connections: IEC-320 C14
  • Cord Length: 1.5meters
  • Pack includes: Basic RS-232 cable, CD with software, Country-specific detachable power cord, Qty 1 - DC Cable, USB cable, User Manual
  • Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault.
  • Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
  • ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Intelligent SmartSlot: Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
  • LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Serial connectivity: Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
  • USB connectivity: Provides management of the UPS via a USB port (not available on all models).
  • Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
  • Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • USB connection: Use your PC to access additional power protection and management features for your UPS via a USB Port.
  • Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
  • Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used.
  • ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Double conversion on-line topology: Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
  • Audible alarms: Provides notification of changing utility power and UPS power conditions
  • Disconnected battery notification: Warns when a battery is not available to provide backup power.
  • Predictive failure notification.: Provides early-warning fault analysis ensuring proactive component replacement.
  • Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.



  • Max Configurable Power (Watts): 800Watts / 1.0kVA
  • Output Voltage: Configurable for 220 : 230 or 240 nominal output voltage
  • Efficiency at Full Load: 88.0 %
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Load Crest Factor: 3 : 1
  • Topology: Double Conversion Online
  • Waveform type: Sine wave
  • Bypass: Internal Bypass (Automatic and Manual)


  • Input frequency: 40 - 70 Hz
  • Input voltage range for main operations: 160 - 280V
  • Input voltage adjustable range for mains operation: 110 - 285 (half load)V
  • Number of Power Cords: 1
  • Efficiency at Full Load: 88.0 %

Batteries & Runtime

  • Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time: 4hour(s)
  • Battery Charge Power (Watts): 129Watts
  • Battery Volt-Amp-Hour Capacity: 516
  • Extended Run Options: Extra battery pack included

Communications & Management

  • Interface Port(s): DB-9 RS-232, USB
  • Control panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  • Available SmartSlot™ Interface Quantity: 1


  • Height: 238MM, 23.8CM
  • Width: 290MM, 29.0CM
  • Depth: 400MM, 40.0CM
  • Net Weight: 24.0KG


  • Operating Temperature: 0 - 40 °C
  • Operating Relative Humidity: 0 - 95 (non-condensing) %
  • Operating Elevation: 0-3000meters
  • Storage Elevation: 0-15000meters
  • Audible noise at 1 meter from surface of unit: 50.0dBA
