ZKTECO SC800 RFID Card & Pin Code Access Control Terminal
571,000.00 TZS
Tax included.
Shipping calculated at checkout.
Estimated Shipping Widget will be displayed here!

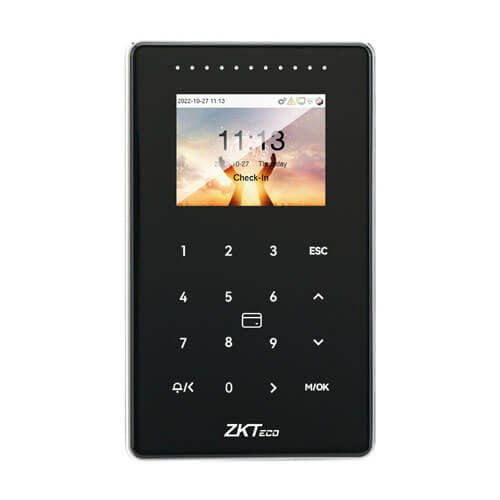

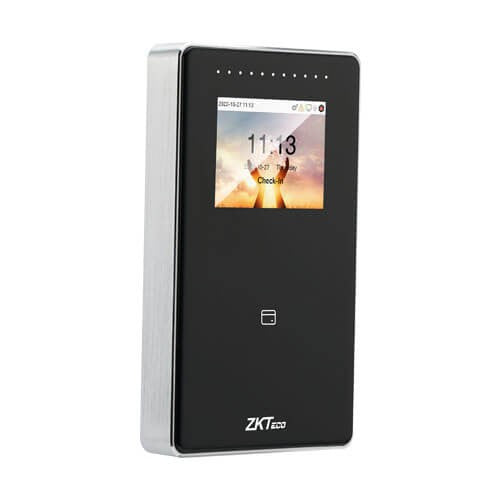

SC800 is a Linux-based and waterproof RFID Access Control terminal that is designed for outdoor application. This terminal adopts a metal midframe housing and a 2.5D tempered glass panel, supporting IP65 waterproof and IK04 vandal proof. It has a 2.4 inch color screen and a hidden touch keypad to enhance the touchless unlocking experience.
SC800 offers the Multi-tech RFID module that supports 125kHz and 13.56MHz card, support HID Prox and HID iclass Multi-Tech RFID Module. In addition, SC800 supports Access Control push communication protocol and it is compatible with ZKBioAccess IVS software. This terminal also includes a Wiegand Input port to connect the external proximity reader and can be act as controller’s external reader using a Wiegand Output port.
SC800 offers the Multi-tech RFID module that supports 125kHz and 13.56MHz card, support HID Prox and HID iclass Multi-Tech RFID Module. In addition, SC800 supports Access Control push communication protocol and it is compatible with ZKBioAccess IVS software. This terminal also includes a Wiegand Input port to connect the external proximity reader and can be act as controller’s external reader using a Wiegand Output port.
SPECS
- Display: 2.4 inch TFT LCD Color Screen
- Operation System: Linux
- Card Capacity: 50,000
- Logs Capacity: 200,000
- User Password: 6 Digits
- RFID: Standard
- Communication: TCP / IP, Wiegand, RS485, OSDP (Ver2.1.7)
- Wired Network: 10 / 100 Mbps, Auto MDI/MDI-X

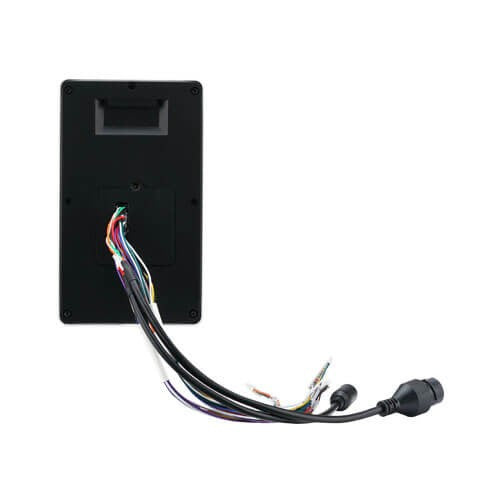

- Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
- Auxiliary Interface: 1 AUX input
- Indication Light: Breathing light: White, Status light: Red / Green
- Hardware: 1GHz Dual Core CPU, DDR2 64M, Flash 256M
- Data Protection: AES-256 Encryption
- Keypad: Hidden Touch Keypad
- Wiegand Signal: Wiegand In / Out
- Standard Functions: ID card, Web sever, Automatic Status Switch, Self-Service Query, DST, 9 Digit User ID, Scheduled Bell, Anti-passback, HTTPS, Protocol convert (AC push to TA push)
- Power Supply: DC 12V 3A
- Operating Temperature: -10°C to 55°C (14°F to 131°F)
- Dimensions: 143*85*19.8mm (L*W*D)
- Operating Humidity: 10% to 90% RH
- Protocol: A & C Push (default)
- Supported Software: ZKBioAccess
- ZKBioAccess Software: We provide ZKBio CVAccess software with charges mentioned in the options provided (One time purchase)
