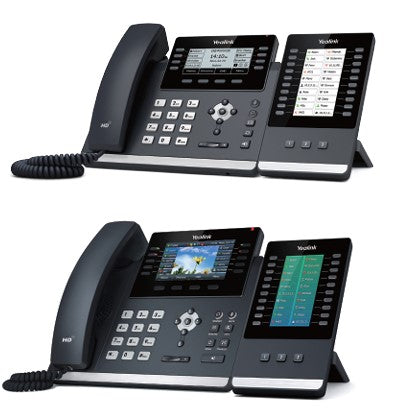

YEALINK EXP43 Color Expansion Module For T43U, T46U, T48U IP Phones

The Yealink EXP43 Color Expansion Module for Yealink T43U/T46U/T48U IP phones, is designed to expand the functional capability of your SIP phone to a whole new level. It features a large 4.3-inch color-screen LCD, giving you a vivid visual experience. In addition, it provides you with a simple user interface and advanced call handling capabilities. For example, three pages of 20 flexible button shown on the display can be programmed up to 60 various features. The functionality of Yealink T43U/T46U/T48U IP phones will also be extended by the EXP43, you can set the provided multifunctional line keys as BLF, speed dial, call forward, transfer, call park, call pickup, etc. The Yealink EXP43 Color Expansion Module is an ideal solution for receptionists, administrative assistants and contact center workers and gives you the ability to monitor contacts and manage a large volume of calls with ease.

Features

• Colorful interface adapts to phone model
• Dedicated page view buttons
• First expansion module powered by the host phone
• Programmable keys can be used for advanced functionality

Specifications

• Screen: 4.3″ 272×480 Pixel color LCD
• Keys: 20 Physical keys, dual color LED, 40 additional keys via page view
• Modules: Up to 3 expansion modules per phone (PSU’s required for expansion modules 2 & 3)
• Stand: Adjustable stand
• USB port (2.0 compliant): For data in and out
• USB port (2.0 compliant): For wired/wireless USB headset, Wi-Fi through WF40/WF50, USB call recording through USB flash drive
• Max power consumption (PSU): 1.5W
• Dimensions (W*D*H*T): 196.5mm*124.0mm*137.5mm*42.6mm
• Applies to Yealink models: T43U/T46U/T48U
• Operating temperature: 0~40°C (+32~104°F)
• Operating humidity: 10~95%
• Package contents: Yealink EXP43 Color Expansion Module, Stand, Connecting Sheet, USB Cable, Screwdriver, Screws, Quick Start Guide
