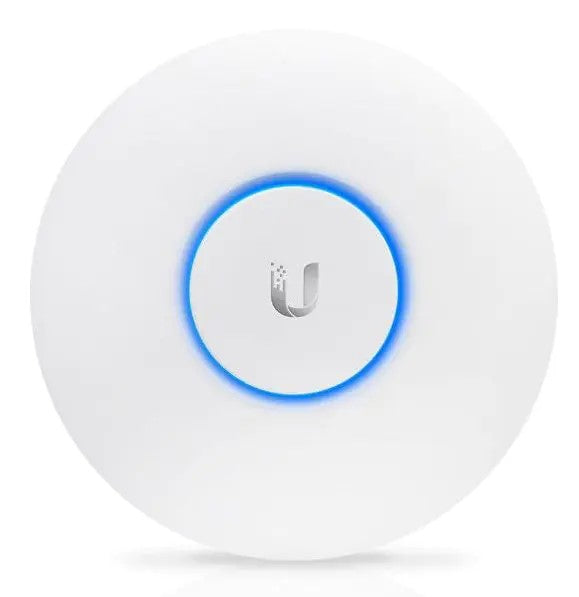

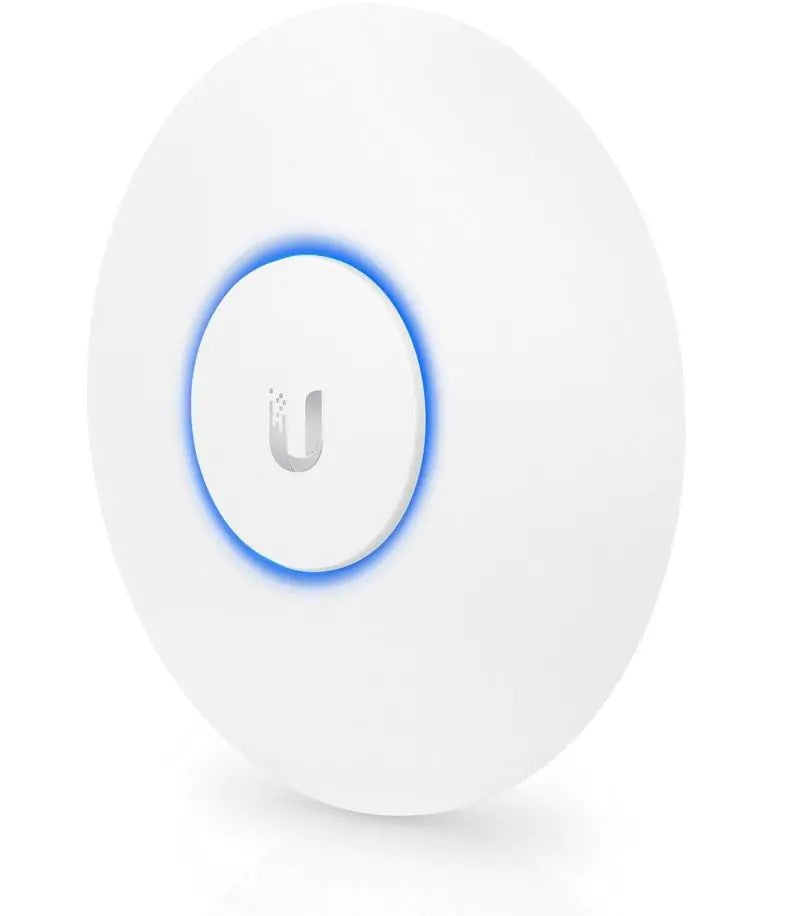

UBIQUITI Unifi Dual Band WiFi 5 Indoor/Outdoor Access Point AC Pro UAP-AC-PRO

Dual-band WiFi 5 access point designed to support high-density networks and critical system applications.

Quick Features:

• WiFi 5 bands (3x3 MIMO)
• 140 m² (1,500 ft²) coverage
• Balanced antenna pattern for enhanced mounting versatility
• Powered using PoE

Adopt the UAP-AC-PRO in Minutes with Your UniFi Network Application and:

• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalize the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app

SPECS

Physical

• Dimensions: 196.7 x 196.7 x 35 mm
• Weight Without Mounting Kit: 350 g
• Weight With Mounting Kit: 450 g

Hardware

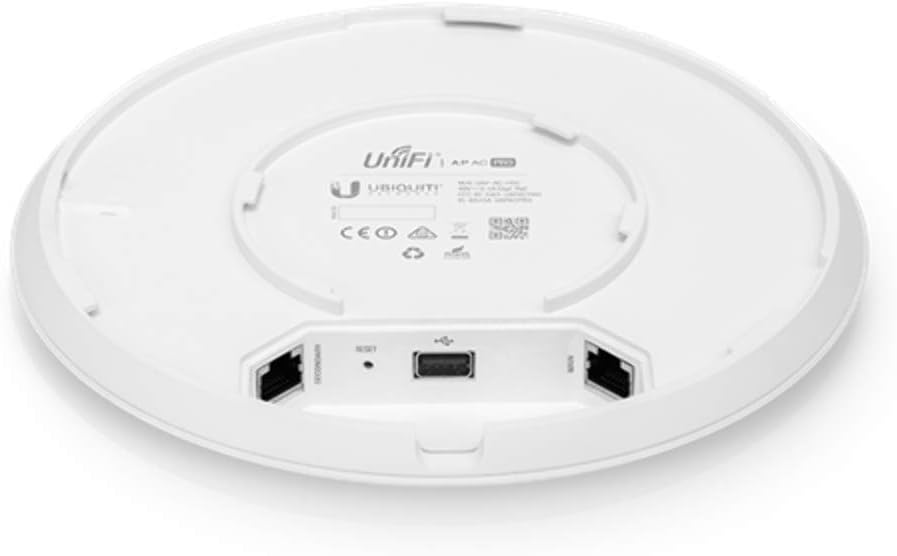

• Networking Interface: (2) GbE RJ45 ports
• Button: Reset
• Management Interface: Ethernet, Bluetooth
• Max. TX power 2.4 GHz/ 5 GHz: 22 dBm/ 22 dBm
• MIMO 2.4 GHz/ 5 GHz: 3 x 3/ 3 x 3
• Throughput rate 2.4 GHz/ 5 GHz: 450 Mbps/ 1300 Mbps
• Antenna gain: 3 dBi
• Power Method: PoE, 48V Passive PoE
• Power Supply: UniFi PoE switch, 48V, 0.5A PoE adapter (Included)
• Supported Voltage Range: 44 to 57VDC
• Maximum Power Consumption: 9W

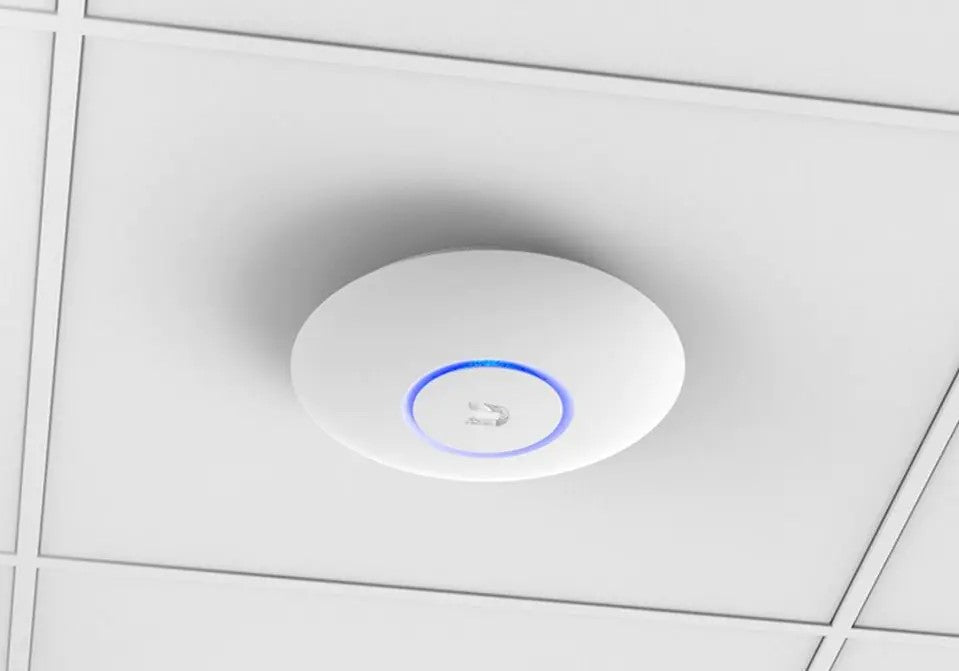

• Mounting: Wall/Ceiling (Kits Included)
• Operating Temperature: -10 to 70° C (14 to 158° F)
• Operating Humidity: 5 to 95% Noncondensing

Software

• WiFi Standards: 802.11 a/b/g/n/ac
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• BSSID: Up to Four per Radio
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• Power Save: Supported
• WMM: Voice, Video, Best Effort, and Background
• Concurrent Clients: 250+

Supported Data Rates (Mbps)

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
• 802.11ac: 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
