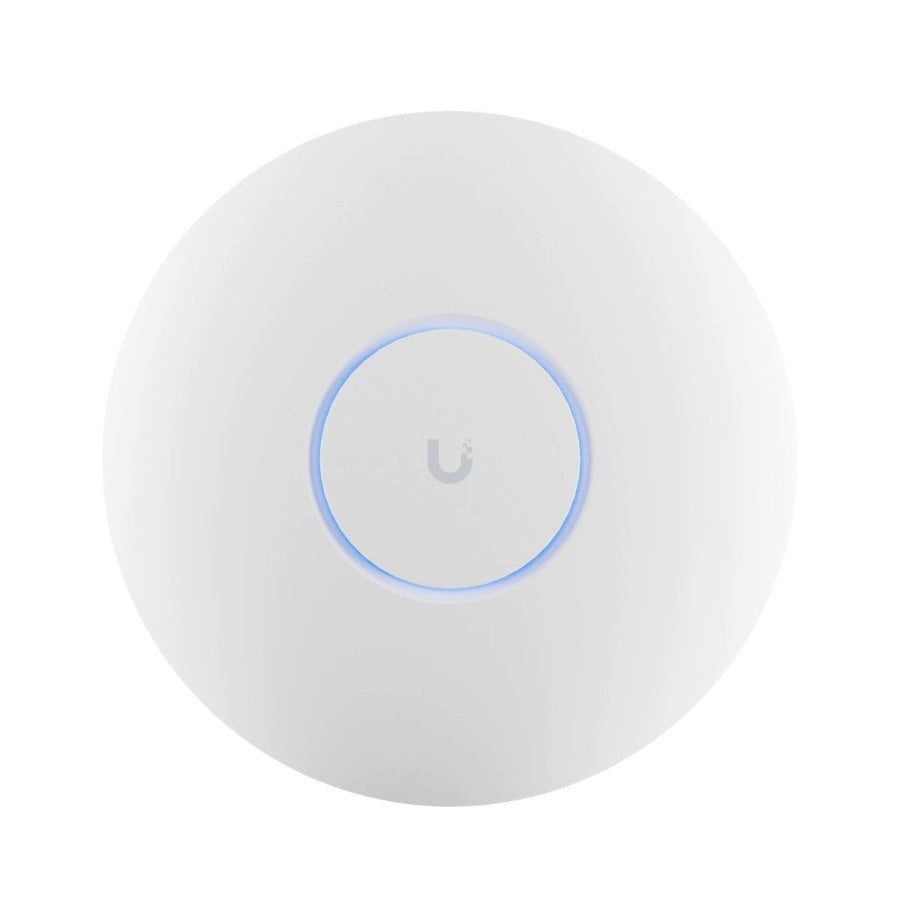

UBIQUITI Unifi Dual Band Indoor Wifi 7 Access Point U7-PRO

Build your Wi-Fi 7 network with the best

Compact, dual-band WiFi 7 access point with flexible mounting options.

Quick Features

• 300+ connected devices
• Wi-Fi 7 with 6 GHz support
• Powered using PoE+
• 140 m² (1,500 ft²) coverage

SPECS

Physical

• Dimensions: Ø206 x 46 mm
• Weight Without Mounting Kit: 510 g
• Weight With Mounting Kit: 680 g
• Enclosure materials: Polycarbonate
• Mount materials: Stainless steel (SUS304), galvanized steel (SGCC)
• Waterproofing: No

Hardware

• Networking Interface: (1) 1/2.5 GbE RJ45 port
• Management interface: Ethernet
• Button: Reset
• Power Method: PoE+
• Power Supply: UniFi PoE switch (not included)
• Supported voltage range: 44—57V DC
• Max. Power Consumption: 21 W
• Max.TX Power 2.4 GHz: 22 dBm
• Max.TX Power 5 GHz: 26 dBm
• Max.TX Power 6 GHz: 23 dBm
• MIMO 2.4 GHz / 5 GHz / 6 GHz: 2 x 2 / 4 x 4 / 2 x 2
• Antenna gain 2.4 GHz / 5 GHz / 6 GHz: 4 dBi / 6 dBi / 5.8 dBi
• LEDs: White/blue
• Button: Factory reset

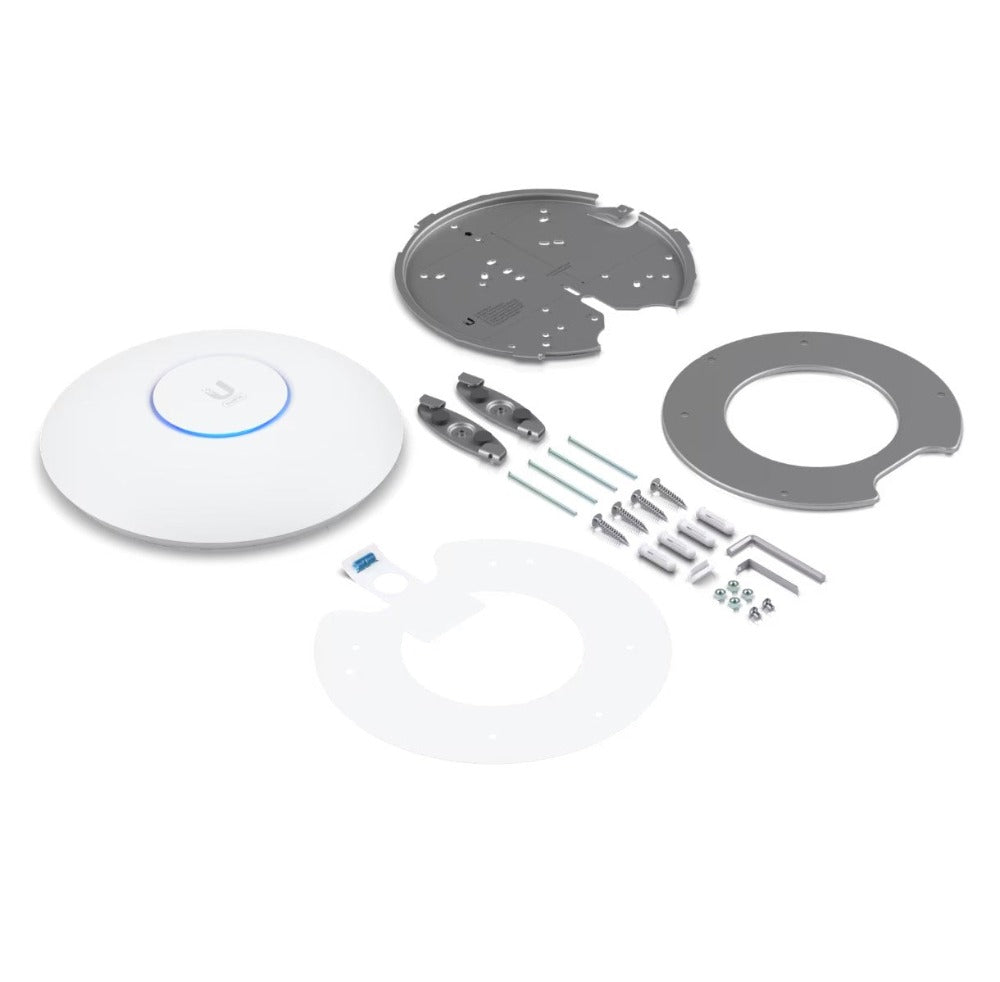

• Mounting: Wall/ ceiling (included)
• Operating Temperature: -30 to 60° C
• Operating Humidity: 5 to 95% Noncondensing

Software

• WiFi Standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
• BSSID: 8 per Radio
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• Concurrent Clients: 300+
• Application requirements: UniFi Network Version 8.0.26 and later, UniFi OS Version 3.2 and later

Supported Data Rates (Mbps)

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
• 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
• 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/ 40/ 80/ 160/ 240/ 320)
