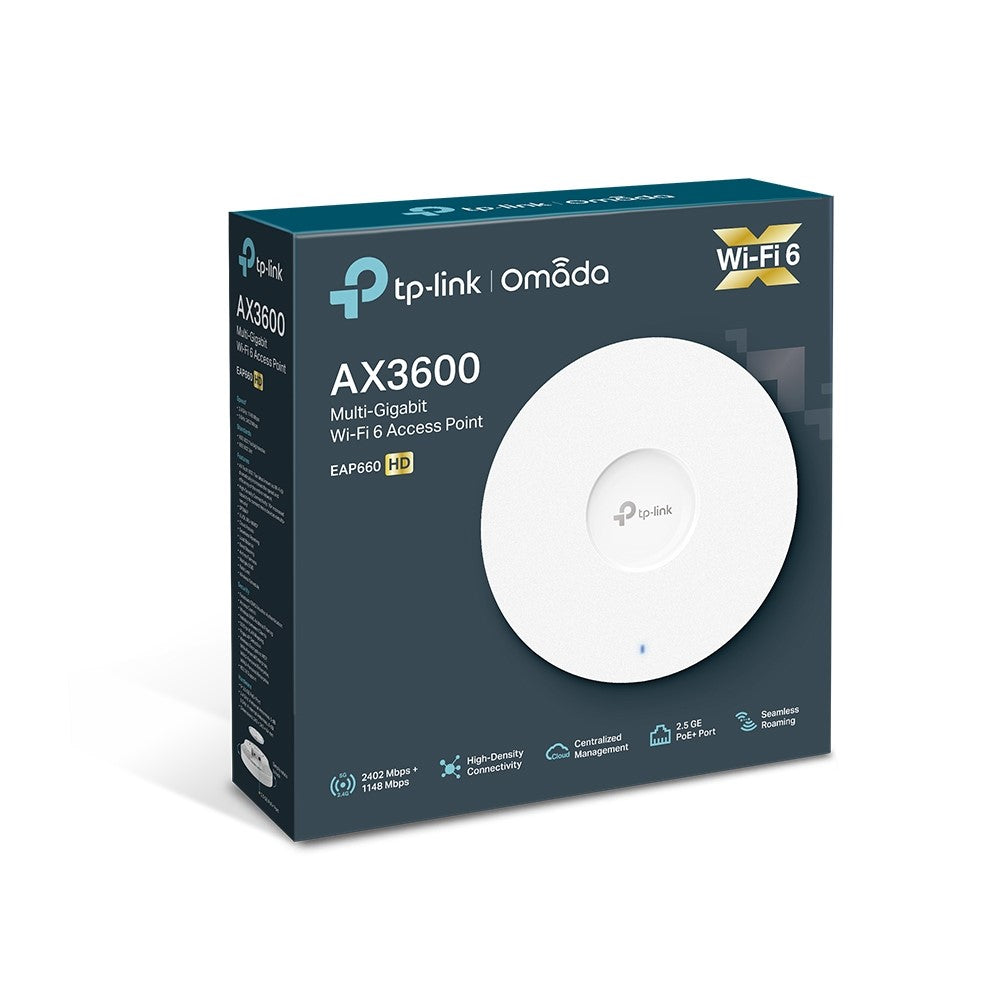

TP-LINK AX3600 HD Multi-Gigabit, Ceiling Mount, Wi-Fi 6, Access Point EAP660HD

High-Density Connectivity with 4× Increased Capacity

Blazing Fast Speed with 8 Spatial Streams

Optimized Wired Performance with 2.5 GE PoE+ Port

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Omada SDN - Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Seamless Roaming

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Secure Guest Network with SMS Login

Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS authentication simplifies the captive portal even further to simplify connectivity and power up your business

SPECS

HARDWARE FEATURES

• Interface: 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
• Button: Reset
• Power Supply: 802.3at PoE or 12 V DC
• Power Consumption: 18.5 W
• Dimensions ( W x D x H ): 9.6 × 9.6 × 2.5 in. (243 × 243 × 64 mm)
• Internal Omni Antenna: 2.4 GHz: 4 x 4 dBi, 5 GHz: 4 x 5 dBi
• Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

• Wireless Client Capacity: 1,000+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 2402 Mbps, 2.4 GHz: Up to 1148 Mbps
• Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power CE: <20 dBm(2.4 GHz, EIRP), <23 dBm(5 GHz, EIRP)
• Transmission Power FCC: <26 dBm (2.4 GHz), <26 dBm (5 GHz)

MANAGEMENT

• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
• Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1,v2c, v3
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

• Package Contents: EAP660HD, Power Adapter, Mounting Kits, Installation Guide
• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Operating Humidity: 10–90% RH non-condensing
