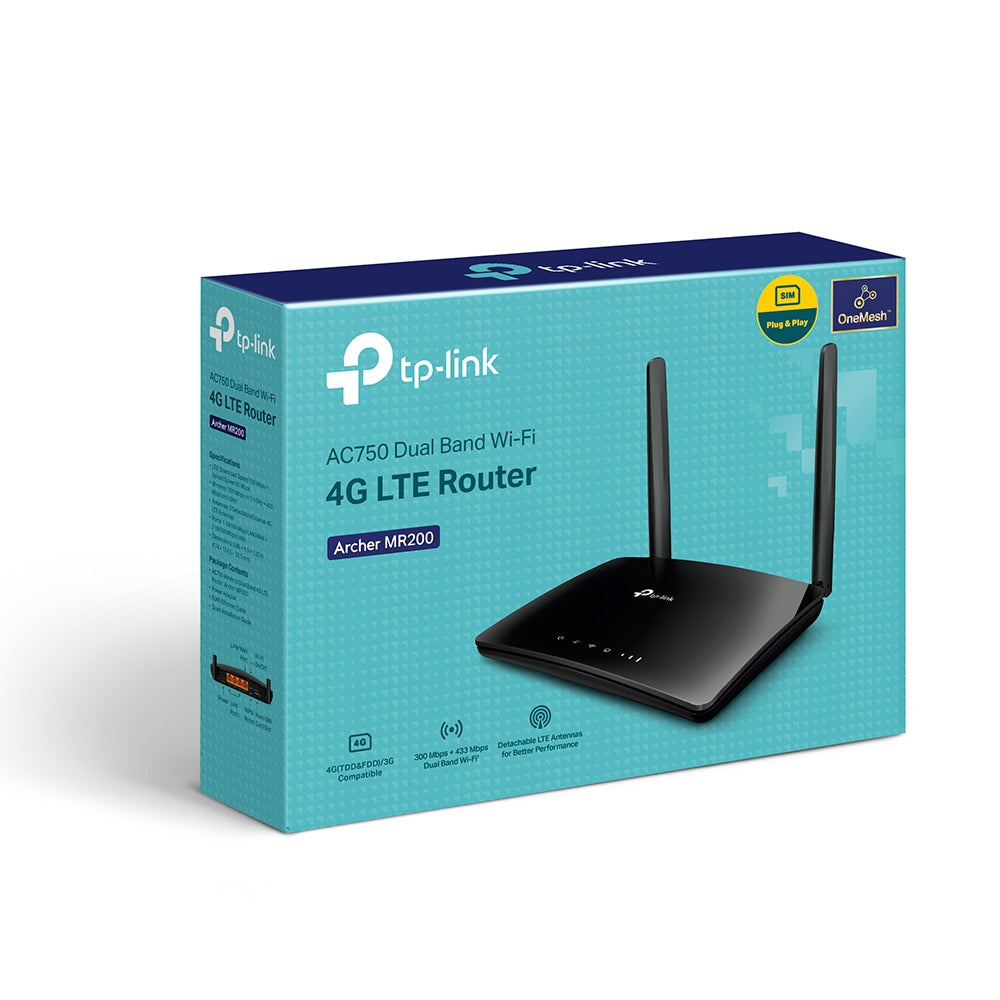

TP-LINK Archer MR200 AC750 Wireless Dual Band 4G LTE Router

• Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps
• Powerful, integrated antennas provide stable wireless connections and better coverage
• Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
• Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4GHz band and 433 Mbps on the 5GHz band
• Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type

Share Your 4G LTE Network

Take full advantage of your cutting-edge 4G LTE network with the Archer MR200, which allows you to share network with multiple devices so you can enjoy uninterrupted HD movies, rapid file downloads that won't freeze up. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.

Got SIM Card? Then Plug and Play!

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Internet Access for up to 64 Devices Simultaneously

The Archer MR200 can easily share a 3G/4G connection with up to 64 wireless devices like tablets, laptops and mobile phones at the same time. It can also provide internet access for desktop computers via the LAN ports.

Wi-Fi Where You Need It

The Archer MR200 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR200 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR200 has you covered.

Support TP-Link OneMesh™

Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
*OneMesh Range Extender or Powerline Adapter sold separately.

Personalize Your Home Network

Archer MR200 provides a wealth of advanced tools for personalized management.

• Parental Controls: Block inappropriate content and set daily limits for how much time your children spend online with Parental Controls.
• QoS: Prioritizes devices to give faster performance where you need it.
• Guest Network: Guest Network creates a separate Wi-Fi for guests, ensuring your privacy is secure.

Available WAN Connection

The WAN/LAN port enables Archer MR200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.

Easy Management

Set up the Archer MR200 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control from any Android or iOS device. Control your home network whenever and wherever you are.

SPECS

HARDWARE FEATURES

• Interface: 3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Nano SIM Card Slot
• Buttons: WPS/RESET Button, Wi-Fi ON/OFF Button
• External Power Supply: 12V/1A
• Dimensions: ( W x D x H ): 174 × 124.5 × 33.5 mm
• Antenna: 2 Detachable External 4G LTE Antennas

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz
• Reception Sensitivity 5 GHz: 11a 54M: -78 dBm, 11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm, 11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm, 11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm
• Reception Sensitivity 2.4 GHz: 11g 54M: -74 dBm, 11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm, 11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm
• Transmit Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
• WAN Failover: Yes
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Network Type 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)
• Network Type TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
• Network Type 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)

SOFTWARE FEATURES

• Quality of Service: Prioritizes network traffic by device or application
• Operating Modes: 3G/4G Router, Wireless Router
• WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
• Management: Access Control, Local Management, Remote Management, reboot schedule
• DHCP: Server, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, NO-IP, TP-Link DDNS
• Access Control: None
• Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
• Protocols: Supports IPv4 and IPv6
• Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1
• VPN Server: PPTP VPN, OpenVPN

OTHERS

• Package Contents: AC750 Wireless Dual Band 4G LTE Router Archer MR200, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide
• System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser, Nano SIM Card
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
