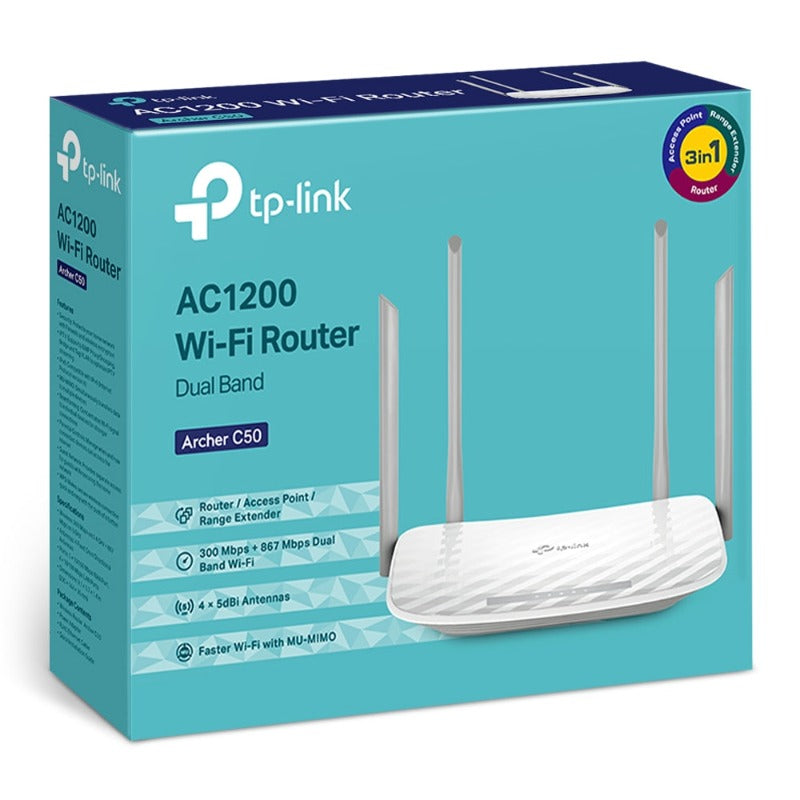

TP-Link Archer C50 AC1200 Wireless Dual Band Router
- Support smooth 4K streaming with AC1200 Wi-Fi
- 4 external antennas provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
- Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Supports Access Point mode to create a new Wi-Fi access point
High-Speed Dual Band Wi-Fi for Better Connections
The Archer C50 lets your PC or laptop enjoy connections 3x faster than Wireless N with Wireless AC technology. With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the Archer C50 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
Connect to the Ethernet to instantly create a private wireless network and share internet access to all your Wi-Fi devices.
Access Point Mode
Transform your existing wired network to a wireless one.
Range Extender Mode
Boost the existing wireless coverage in your room.
4 Antennas & Beamforming for Maximum Coverage
Equipped with four external antennas, Archer C50 creates stronger and more reliable networks for all to enjoy in your home. Beamforming technology concentrates the Wi-Fi signal towards your connected devices, providing better Wi-Fi range and network performance.
Easy Parental Control
Supervise children and staff with responsible access, controlled by parents or administrators. Use key words to easily set up a black list and limit the level of web access.
Guest Network Access
Allow guests to join your Wi-Fi network while protecting your privacy. Make sharing easy, maintain security. Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. Easily share your facebook account to anyone who connects to your network.
Connect More Devices Simultaneously
Archer C50 helps your devices achieve optimal performance by making communication more efficient with MU-MIMO technology. Two simultaneous data streams, allow all connected devices to achieve faster speeds than standard AC routers.
Easy Setup and Use
Set up the Archer C50 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
3 Bedroom Houses
4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Concentrates wireless signal strength towards clients to expand WiFi range
Allocate devices to different bands for optimal performance
Simultaneously communicates with multiple MU-MIMO clients
|Working Modes||Router Mode
Access Point Mode
Range Extender Mode
|Ethernet Ports||1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Power On/Off Button
|Power||9 V ⎓ 0.85 A|
|Network Security||SPI Firewall
IP & MAC Binding
Application Layer Gateway
|Guest Network||1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
|Parental Controls||URL Filtering
|WAN Types||Dynamic IP
|Quality of Service||QoS by Device|
|NAT Forwarding||Port Forwarding
DHCP Client List
Check Web Emulator>
|Dimensions (W×D×H)||9.1 × 5.7 × 1.5 in
(229.9 × 144.2 × 36.9 mm)
|Package Contents||Wi-Fi Router Archer C50
RJ45 Ethernet Cable
Quick Installation Guide
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
|Certifications||FCC, CE, RoHS|
|Environment||Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|WiFi Transmission Power||CE EIRP:
<30dBm(2.4GHz & 5GHz)
|WiFi Reception Sensitivity||5GHz:
11a 54M: -73dBm
11ac VHT20 MCS8: -68dBm
11ac VHT40 MCS9: -64dBm
11ac VHT80 MCS9: -60dBm
11g 54M: -76dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm
