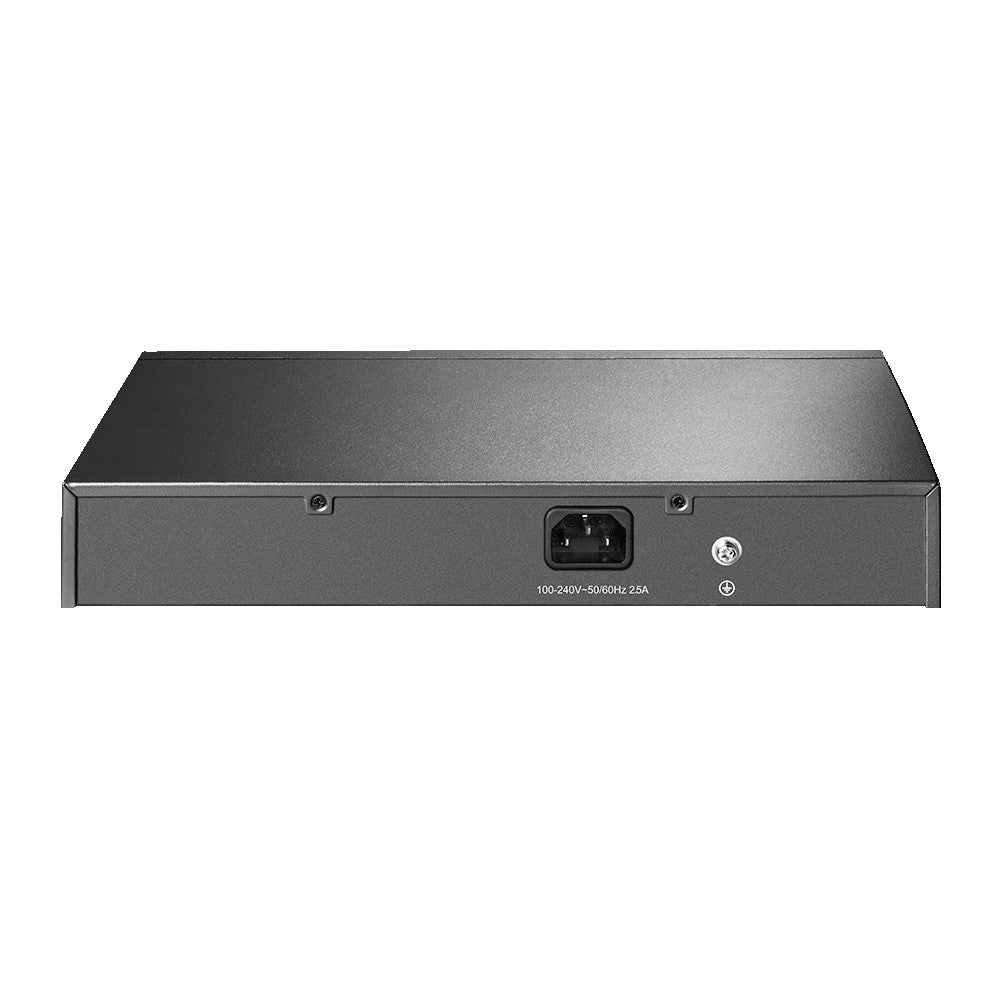

TP-LINK 8-Port Gigabit Desktop Switch with 8-Port PoE+ TL-SG1008MP

How This Product Works

All 8 ports of TL-SG1008MP support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are no electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Overload Arrangement

TL-SG1008MP has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 153W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function

Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4, 5 and 7 are using 30W (maximum power per port is 30W, the system power is 153W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 153W limit., This means Port 1, 2, 4 and 5 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.

Easy To Use

TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your home or office network.

Specs

HARDWARE FEATURES

• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-T: UTP category 5/ 5e/ 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
• Interface: 8 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Fan: 1
• Physical Security Lock: No
• Power Supply: 100-240VAC, 50/60Hz
• Packet Forwarding Rate: 11.904 Mpps
• PoE Ports (RJ45): Standard - 802.3 af/at compliant, PoE Ports - Ports 1 to 8, Power Supply - 153 W
• Mac Address Table: 4K
• Buffer Size: 1.5Mbits
• Jumbo Frame: 16 KB
• Switching Capacity: 16 Gbps
• Dimensions ( W x D x H ): 294×180×44 mm
• Max Power Consumption: 8.57W(220V/ 50Hz. no PD connected), 173.65W(110V/ 60Hz. with 153W PD connected)
• Max Heat Dissipation: 29.22BTU/h(no PD connected), 592.15BTU/h(with 153W PD connected)
• Transfer Method: Store and Forward
• Advanced Functions: Compatible With IEEE 802.3af/at Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS

• Package Contents: TL-SG1008MP, Power Cord, Installation Guide, Rubber Feet
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Operating Humidity: 10%~90% non-condensing
