TP-LINK 48-Port Gigabit Desktop/Rackmount Switch TL-SG1048

TP-LINK Green Technology

This new generation TL-SG1048 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, most of the packaging material can be recycled.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

High Performance

The TL-SG1048 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Specs

HARDWARE FEATURES

• Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3x
• Interface: 48 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan: No
• Physical Security Lock: No

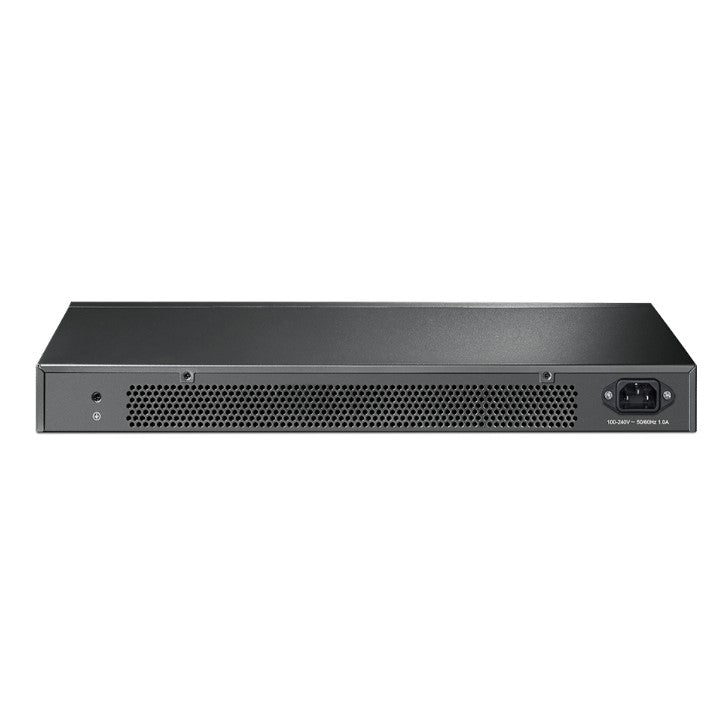

• Power Supply: 100-240VAC, 50/60Hz
• Mounting: 19 Inch, 1U Rack mountable
• Dimensions ( W x D x H ): 440 x 220 x 44 mm
• Max Power Consumption: 32.3W
• Max Heat Dissipation: 110.2 BTU/h

SOFTWARE FEATURES

• Transfer Method: Store and Forward
• Jumbo Frame: 12 KB
• Switching Capacity: 96 Gbps
• Packet Forwarding Rate: 71.4 Mpps
• MAC Address Table: 16K
• Buffer Memory: 12 MB

OTHERS

• Package Contents: 48-Port Gigabit Desktop Switch TL-SG1048, Power Cord, Installation Guide, Rackmount Kits, Rubber Feet
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Operating Humidity: 10%~90% non-condensing
