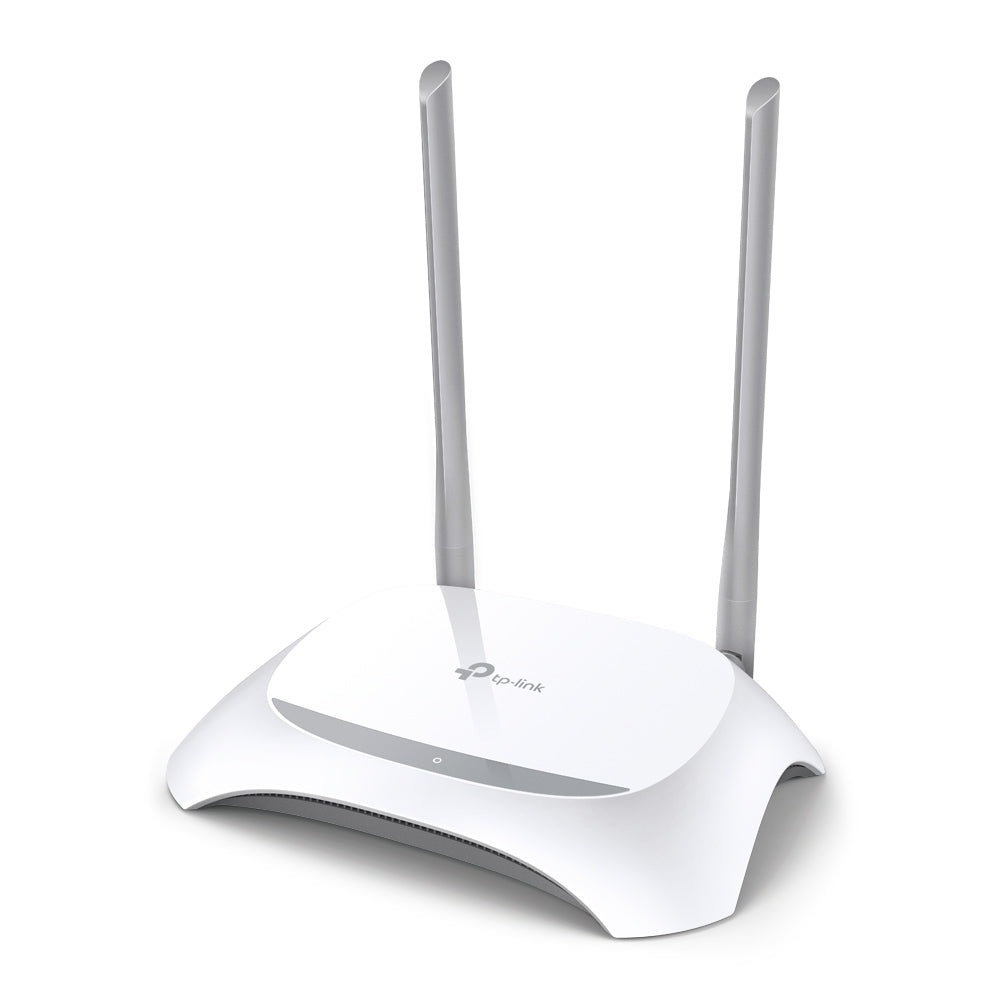

TP-link 300Mbps Wireless N Speed Router TL-WR840N

• 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
• Supports Access Point mode to create a new Wi-Fi access point
• Supports Range Extender mode to boost the existing wireless coverage in your room
• Parental Controls manage when and how connected devices can access the internet
• IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
• compatible with IPv6 (Internet Protocol version 6)
• Guest Network provides separate access for guests while securing the home network

300Mbps Wireless N Speed - Fast Download Speed

TP-Link’s TL-WR840N is a high speed solution that is compatible with IEEE 802.11b/g/n. Based on 802.11n technology, TL-WR840N gives users wireless performance at up to 300Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.

Easy Setup and Use

Set up the TL-WR840N in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

Specs

WIRELESS

• Standards: Wi-Fi 4, IEEE 802.11n/b/g 2.4 GHz
• WiFi Speeds: N300, 2.4 GHz: 300 Mbps (802.11n)
• WiFi Range: 2 Bedroom Houses, 2× Fixed Antennas
• WiFi Capacity: Legacy
• Working Modes: Router Mode, Access Point Mode, Range Extender Mode, WISP Mode

HARDWARE

• Processor: Single-Core CPU
• Ethernet Ports: 1× 10/100 Mbps WAN Port, 4× 10/100 Mbps LAN Ports
• Buttons: Reset Button
• Power: 9 V ⎓ 0.6 A

SECURITY

• WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)
• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
• Guest Network: 1× 2.4 GHz Guest Network

SOFTWARE

• Protocols: IPv4, IPv6
• Parental Controls: URL Filtering, Time Controls
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV: IGMP Proxy, IGMP Snooping
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: NO-IP, Comex, DynDNS
• Management: Tether App, Webpage

PHYSICAL

• Dimensions (W×D×H): 7.2 × 5.0 × 1.4 in (182 × 128 × 35 mm)
• Package Contents: Wi-Fi Router TL-WR840N, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide

OTHER

• System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing

TEST DATA

• WiFi Transmission Power: CE: <20dBm(2.4GHz), FCC: <30dBm
• WiFi Reception Sensitivity: 270M: -68dBm@10% PER, 130M: -68dBm@10% PER, 108M: -68dBm@10% PER, 54M: -68dBm@10% PER, 11M: -85dBm@8% PER, 6M: -88dBm@10% PER, 1M: -90dBm@8% PER
