TP-LINK 10-Port Gigabit Desktop Switch with 8-Port PoE+, TL-SG1210P

FEATURES

• 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
• With 8 PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at compliant PDs and expands office network
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
• Up to 250 m data and power transmission range under Extend Mode
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
• Easy to use, with no configuration and installation needed

SPECIFICATIONS

HARDWARE FEATURES

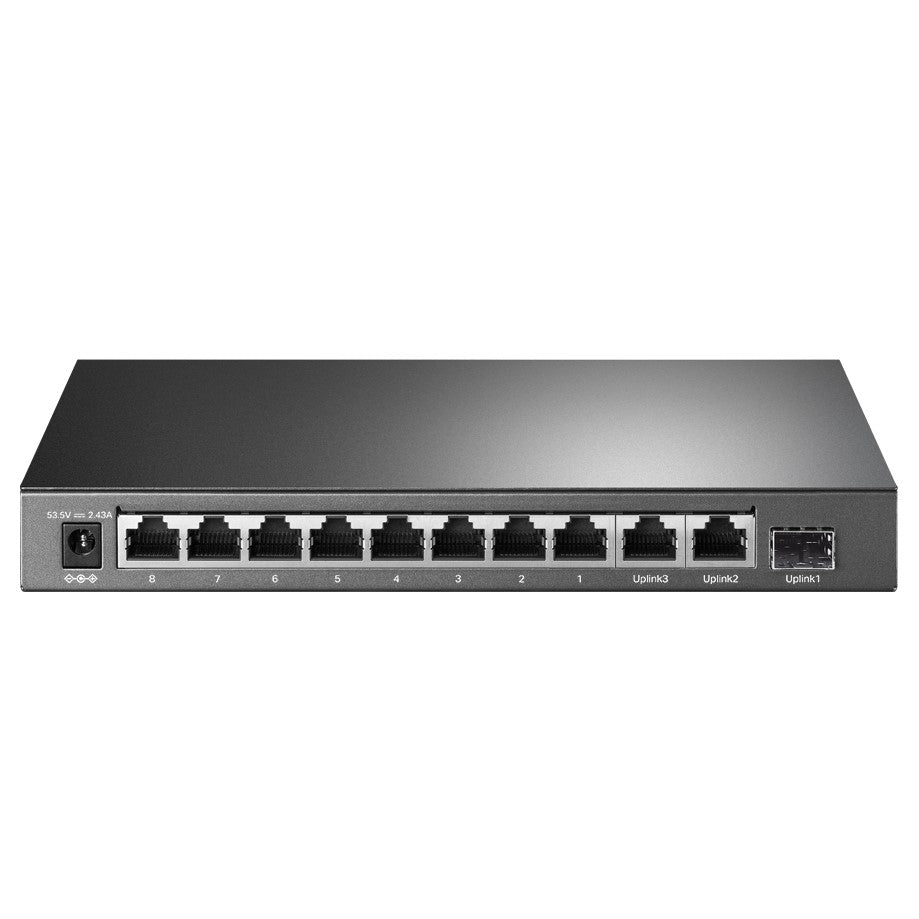

• Interface: 8 PoE+ 10/100/1000Mbps RJ45 Ports, 1 10/100/1000Mbps RJ45 Port, 1 Gigabit SFP Slot
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-X MMF, SMF
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• Power Supply: External Power Adapter(Output: 53.5VDC / 1.31A)
• Packet Forwarding Rate: 14.88 Mpps
• PoE Ports (RJ45): Standard: 802.3at/802.3af compliant
• PoE Ports: Port 1- Port 8
• PoE Power Budget: 63W
• Mac Address Table: 4K
• Jumbo Frame: 16 KB
• Switching Capacity: 20 Gbps
• Dimensions ( W x D x H ): 209 × 126 × 26 mm
• Max. Power Consumption: 7.0 W (220/50Hz. no PD connected), 77.24 W (220/50Hz. with 63W PD connected)
• Max. Heat Dissipation: 23.87 BTU/h (no PD connected), 263.39 BTU/h (with 63W PD connected)


SOFTWARE FEATURES

• Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs, EEE802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping, Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission), Priority Mode Button (Ports 1–2), Isolation Mode Button (Ports 1–4 / 5-8), PoE Auto Recovery (Ports 1-8)
• Transmission Method: Store-And-Forward


OTHERS

• Certification: CE, FCC, RoHS
• Package Contents: TL-SG1210P, Power Adapter, Installation Guide
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10% ~ 90% non-condensing
