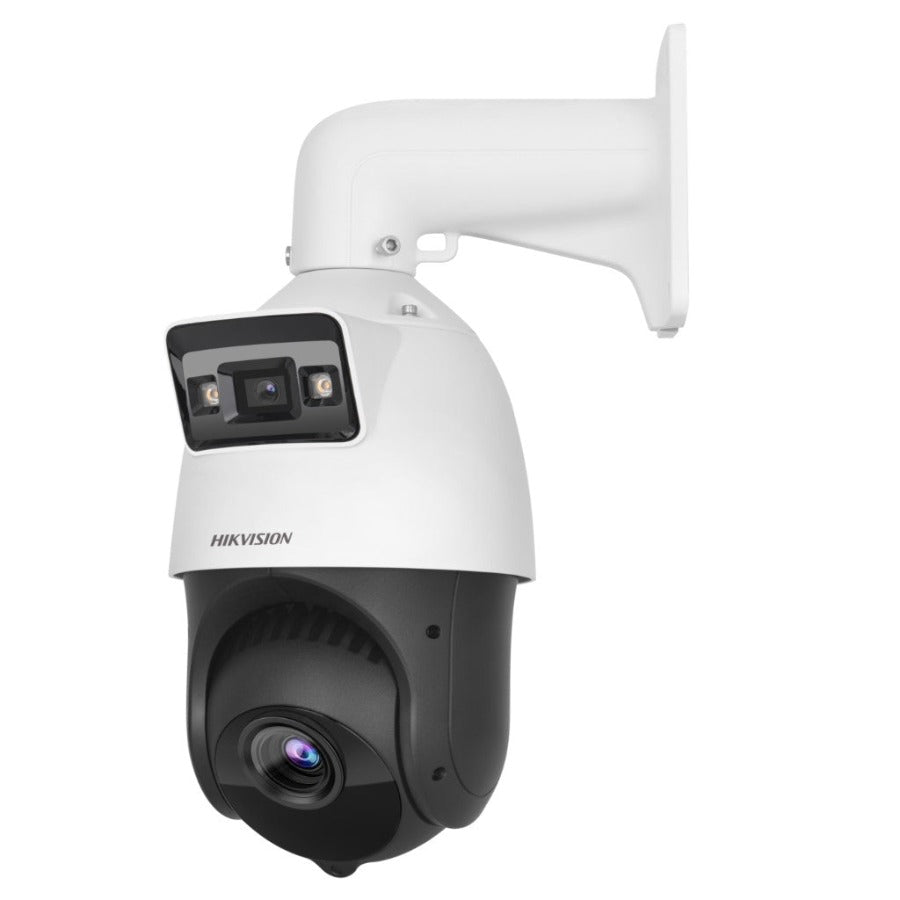

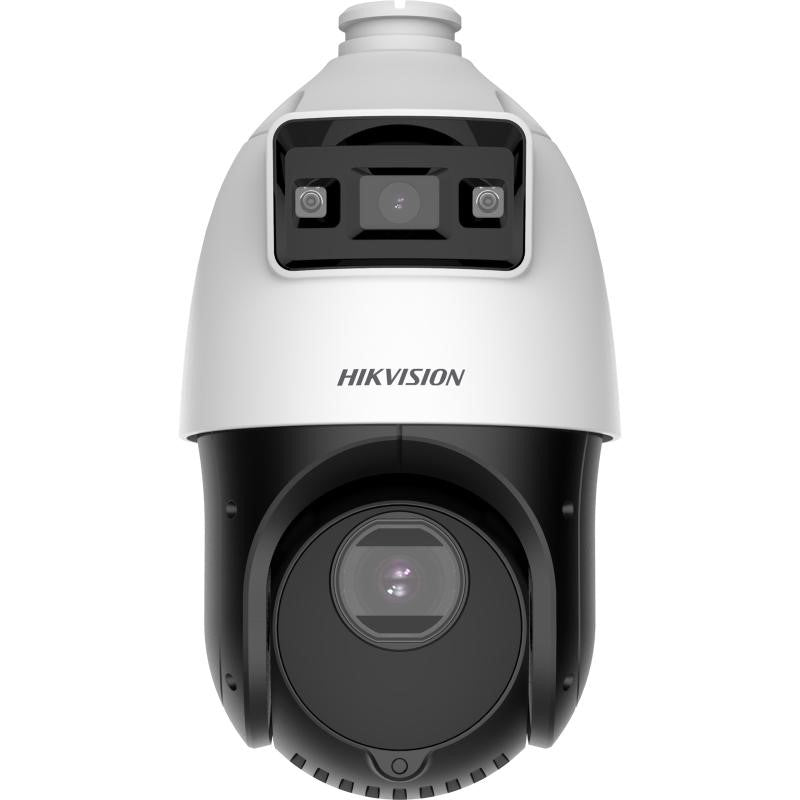

HIKVISION TandemVu 4 MP, 4 Inch, 15X Zoom, Color & IR Network Speed Dome PTZ Network Security Camera With Wall Mount Bracket 2SE4C415MWG

Quick features

• Captures a large area and great details at the same time
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 15× optical zoom and 16× digital zoom
• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• Expansive night view with up to 100 m IR distance & 30 m white light
• Supports 12V DC & PoE+
• Focuses on human and vehicle targets classification based on deep learning

Specifications

Camera

• Image Sensor: [Bullet channel]: 1/3" Progressive Scan CMOS, [PTZ channel]: 1/2.8" progressive scan CMOS
• Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
• Min. Illumination: [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1 s to 1/30,000 s
• Day & Night: ICR
• Zoom [PTZ channel]: 15 × optical, 16 × digital
• Slow Shutter: Yes

Lens

• Focal Length: [Bullet channel]: 2.8 mm, [PTZ channel]: 4.8 to 72 mm, 15 × optical
• FOV: [Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°，Diagonal field of view: 113.3°, [PTZ channel]: Horizontal field of view: 55° to 4° (wide-tele), Vertical field of view: 33° to 2.2° (wide-tele), Diagonal field of view: 61.5° to 4.6° (wide-tele)
• Focus: Semi-auto, manual, |auto
• Aperture: [Bullet channel]: F1.0, [PTZ channel]: F1.6
• Zoom Speed: [PTZ channel]: approx. 2.3 s

Illuminator

• Supplement Light Type: [PTZ channel]: IR,  [Bullet channel]: White Light
• Supplement Light Range: [PTZ channel]: up to 100m, [Bullet channel]: up to 30m
• Smart Supplement Light: Yes

Pan/Tilt/Zoom

• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan Speed: Pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
• Tilt Speed: Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Pan: Yes
• Presets: 300
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans
• Power-Off Memory: Yes
• Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Preset Freezing: Yes
• Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

• Main Stream: [Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream: [Bullet channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240), [PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream: [Bullet channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240), [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression: H.265/H.264/MJPEG
• Video Bit Rate: 32 kbps to 16 mbps
• H.264 Type: Baseline profile/Main profile/High profile
• H.265 Type: Main profile
• Scalable Video Coding (SVC): Yes
• Region Of Interest (ROI): 8 fixed regions for each stream

Audio

• Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
• Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Network Storage: NAS (NFS, SMB/CIFS), ANR
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users
• Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
• Client: iVMS-4200, Hik-Connect
• Web Browser: Chrome 57.0+, Firefox 52.0+, Safari 12+, IE 10+


• Image Parameters Switch: Yes
• Image Settings: Sharpness, saturation, brightness, contrast
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ＞52dB
• Defog: Digital Defog
• Image Stabilization: EIS
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
• Regional Focus: Yes
• Regional Exposure: Yes

Interface

• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Alarm: 1 input, 1 output
• Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
• Reset: Yes

Events

• Basic Event: Motion detection, video tampering alarm, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, abnormal Reboot), alarm input and output
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection
• Alarm Linkage: [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

• Face Capture: [Bullet channel] no, [PTZ channel] yes

General

• Demist: Yes, by heating glass
• Power: 12 VDC, PoE+
• Power Consumption And Current: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
• Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• Material: ADC12
• Dimensions: Ø 210 mm × 344.7 mm
• Weight: Approx. 3 kg
• Package includes: Wall mount bracket

Approvals

• Protection: IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
