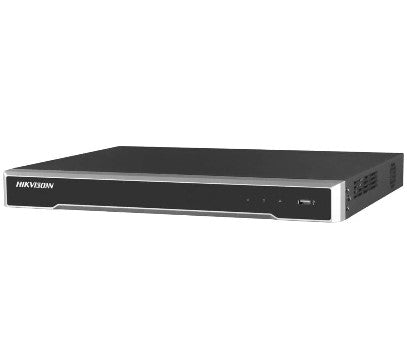

HIKVISION Pro Series 16-ch 16 PoE 4k 1U NVR DS-7616NI-Q2/16P

Quick features

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 160 Mbps incoming bandwidth

Specifications

Motion Detection 2.0

• Human/Vehicle Analysis: 4

Video And Audio

• IP Video Input: 16-ch
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 80 Mbps
• HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
• Video Output Mode: HDMI/VGA simultaneous output

Decoding

• Decoding Format: H.265+/H.265/ H.264+/H.264
• Recording Resolution: 8 MP/ 6 MP/ 5 MP/ 4 MP/ 3 MP/ 1080p/ UXGA / 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF

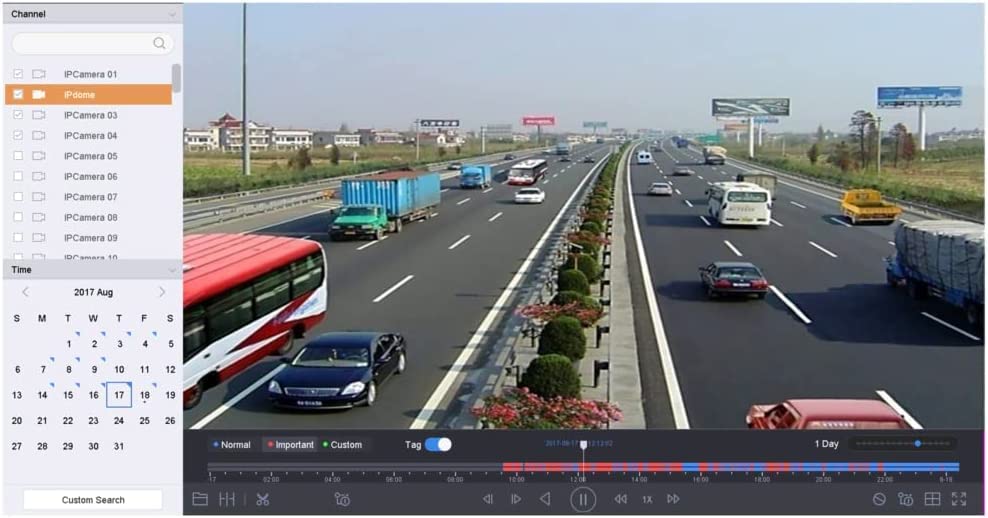

• Synchronous Playback: 16-ch
• Decoding Capability: 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

Network

• Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface


PoE

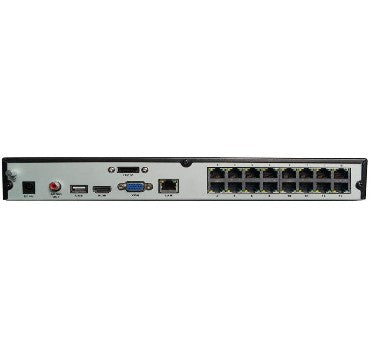

• Interface: 16-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 150 W
• Standard: IEEE 802.3 af/at

Auxiliary Interface

• SATA: 2 SATA interfaces
• Capacity: Up to 8TB capacity for each disk
• Alarm In/Out: N/A
• USB Interface: 2 × USB 2.0

General

• Power Supply: 100-240V～, 50/60Hz, 3.2A MAX
• Consumption: ≤ 15 W
• Working Temperature: -10 to +55º C (+14 to +131º F)
• Chassis: 1U chassis
• Dimensions (W × D × H): 385 × 315 × 52 mm
