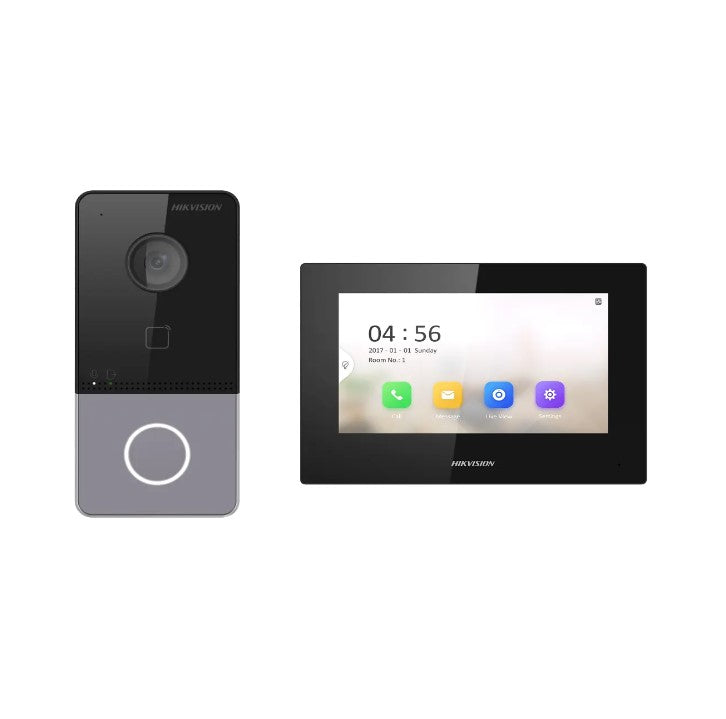

HIKVISION IP Entrance Intercom Kit DSKIS605P

 Experience the utmost in convenience and security with the HIKVISION IP Intercom Kit. Enjoy the latest in advanced technology with this IP intercom kit that offers hassle-free installation for a complete home security system. Offering intuitive operations, premium convenience, and a luxurious feel, this IP intercom kit is the perfect choice for keeping your family safe and sound.

Features

• Indoor Station
• User friendly design
• 7-inch colorful touch screen with resolution 1024 × 600
• Standard PoE
• Views live video of door stations and linked cameras
• Villa Door Station
• 2 MP HD Camera
• Noise suppression and echo cancellation
• Low illumination
• Access control functions
• Tamper-proof
• Configuration remotely via Web
• 2.4 GHz Wi-Fi

Specs

Door Station/System Parameters

• Operation System: Embedded Linux operation system
• Operation Mode: Single-button
• Flash: 16 M, 32 M
• RAM: 256 M

Door Station/Video Parameters

• Camera: 2MP HD camera
• Resolution: Main stream: 1920 × 1080p, 720p, Sub stream: 704 × 576
• Night Vision: Low illumination IR supplement mode (3 m)
• WDR: True WDR
• Field Of View: Horizontal: 129°, Vertical: 75°
• Video Compression Standard: H.264
• Stream: Main stream: 1080p@30fps, 720p@25fps, Sub stream: D1@25fps
• Motion Detection: Support
• BLC: Support
• DNR: Support
• Anti-Flicker Frequency: 50 Hz, 60 Hz

Door Station/Audio Parameters

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Audio Quality: Noise suppression and echo cancellation
• Audio Compression Standard: G.711 U
• Audio Compression Rate: 64 Kbps
• Audio Intercom: Two-way audio communication

Door Station/Network Parameters

• Network Protocol: TCP/IP, RSTP
• Wired Network: 10/100 Mbps Ethernet

Door Station/Device Interfaces

• RS-485: 1
• Alarm Input: 4
• Debugging Port: 1
• Grounding: 1
• TAMPER Switch: 1

Door Station/General

• Power Consumption: ＜ 10 W
• Working Temperature: -40° C to +53° C(-40° F to 127.4° F)
• Working Humidity: 10% to 95%
• Dimensions: 138 mm × 65 mm × 27 mm
• Installation: Surface mounting
• Protection Level: IP65
• Button: 1
• Indicator: 2
• Power Supply: IEEE802.3af, standard PoE, 12 VDC

Indoor Station/System Parameters

• Operation System: Embedded RTOS operation system
• Memory: 64 MB
• Flash: 16 MB

Indoor Station/Display Parameters

• Display Screen: 7-inch TFT LCD
• Display Resolution: 1024 × 600
• Operation Method: Capacitive touch

Indoor Station/Audio Parameters

• Audio Input: Build-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Audio Quality: Noise suppression and echo cancellation
• Audio Compression Standard: G.711U, G.711A
• Audio Compression Rate: 64 Kbps

Indoor Station/Network Parameters

• Wired Network: 10/100 Mbps self-adaptive
• Protocol: TCP/IP, SIP, RTSP

Indoor Station/Device Interfaces

• Network Interface: RJ45, standard PoE for power supply
• RS-485: 1(Reserved)
• Alarm Input: 8 zones
• Relay Output: 2(Reserved)
• Power Input: 2 pins

Indoor Station/General

• Power Supply: 12 VDC or standard PoE
• Power Consumption: ≤ 6 W
• Working Temperature: -10 °C to 50 °C (-14 °F to 122 °F)
• Working Humidity: 0% to 90%
• Dimensions (W × H × D): 200 mm × 140 mm × 15.1 mm
• Installation: Wall mounting
