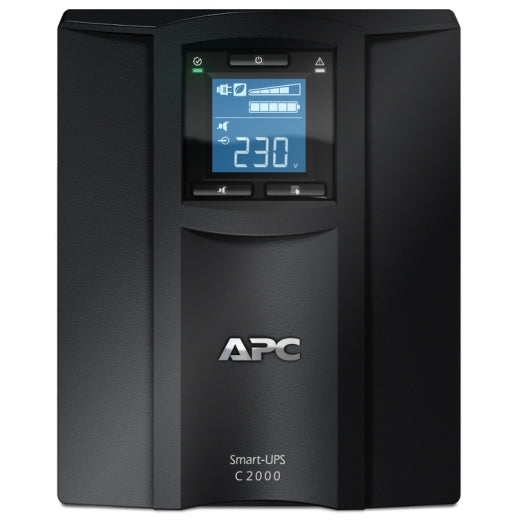

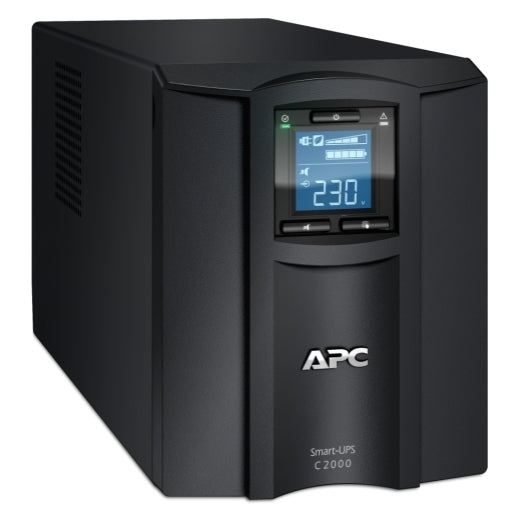

APC Smart-UPS C 2000VA, 6 IEC Sockets, 1 IEC C19 Socket, LCD, 230V, SMC2000I
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs, etc.
- Output power capacity: 1.3kWatts / 2.0kVA

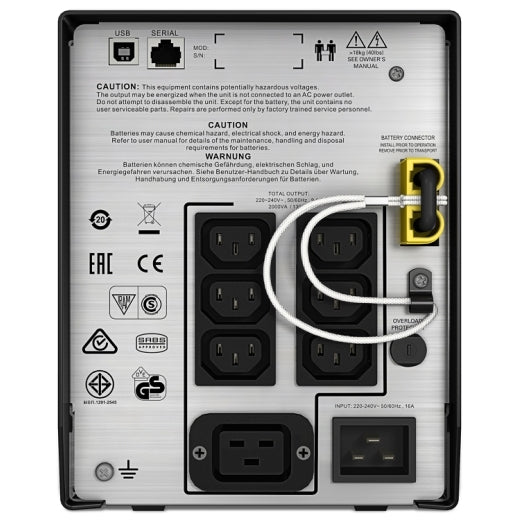

- Output Connections: (6) IEC 320 C13 (Battery Backup), (1) IEC 320 C19 (Battery Backup)
- Nominal Output Voltage: 230V
- Nominal Input Voltage: 230V
- Input Connections: IEC-320 C20
- Pack includes: CD with software, Documentation CD, USB cable
Features
- Cold-start capable: Provides temporary battery power when the utility power is out.
- Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency: Reduces utility costs, generates less heat.
- LCD Status Display: Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
- Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.
- Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Disconnected battery notification: Warns when a battery is not available to provide backup power.
- Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.
- Audible alarms: Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- LED status indicators: Quickly understand unit and power status with visual indicators.
- Serial connectivity: Provides management of the UPS via a serial port.
- USB connectivity: Provides management of the UPS via a USB port (not available on all models).
- Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
- Disconnected battery notification: Warns when a battery is not available to provide backup power.
- Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement.
- Resettable circuit breakers: Enables a quick recovery from overload events.
- Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points: Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Specifications
Output
- Max Configurable Power (Watts): 1.3kWatts / 2.0kVA
- Output Voltage Distortion: Less than 5% at full load
- Output Frequency (sync to mains): 50 Hz
- Topology: Line Interactive
- Waveform type: Sine wave
Input
- Input frequency: 47 - 63 Hz
- Input voltage range for main operations: 180 - 287V
- Input voltage adjustable range for mains operation: 170 - 300V
- Other Input Voltages: 220, 240
Batteries & Runtime
- Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
- Typical recharge time: 3 hour(s)
- Replacement Battery: APC RBC148
- Expected Battery Life (years): 3
- RBC Quantity: 1
- Battery Charge Power (Watts): 166Watts
- Battery Volt-Amp-Hour Capacity: 499
Communications & Management
- Interface Port(s): USB
- Control panel: Multi-function LCD status and control console
- Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
- Surge energy rating: 300Joules
- Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
- Height: 216MM, 21.6CM
- Width: 170MM, 17.0CM
- Depth: 440MM, 44.0CM
- Net Weight: 27.5KG
Environmental
- Operating Temperature: 0 - 40 °C
- Operating Relative Humidity: 0 - 95 %
- Operating Elevation: 0-3000meters
- Audible noise at 1 meter from surface of unit: 45.0dBA
