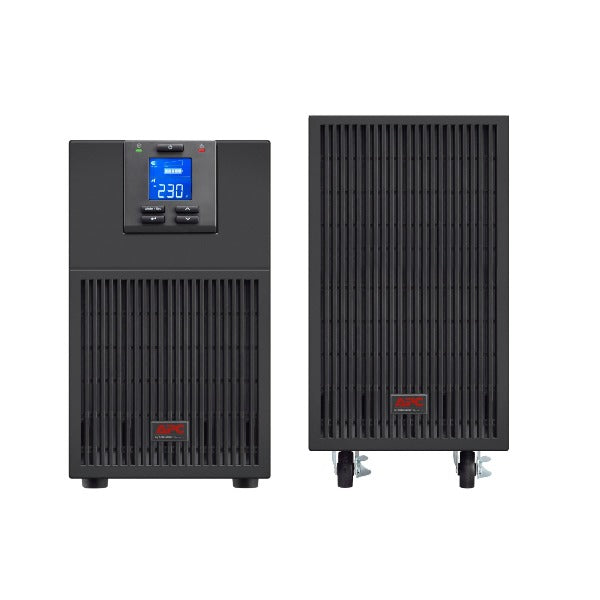

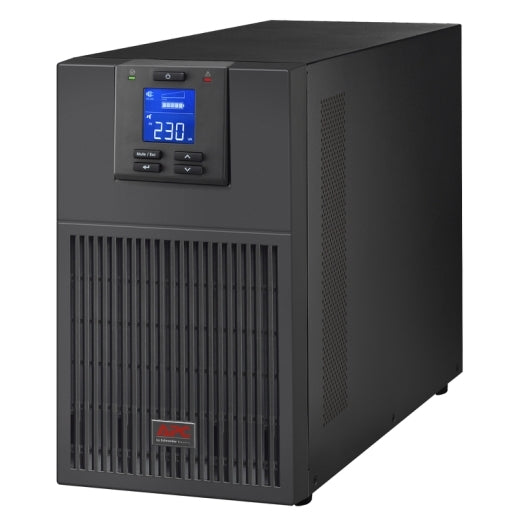

APC Easy UPS On-Line SRV Ext. Runtime 10kVA 10000VA, Hard wire 3-wire(1P+N+E) outlet, 230V with External Battery Pack SRV10KIL

• Output power capacity: 10.0kWatts / 10.0kVA
• Nominal Output Voltage: 230V
• Nominal Input Voltage: 230V

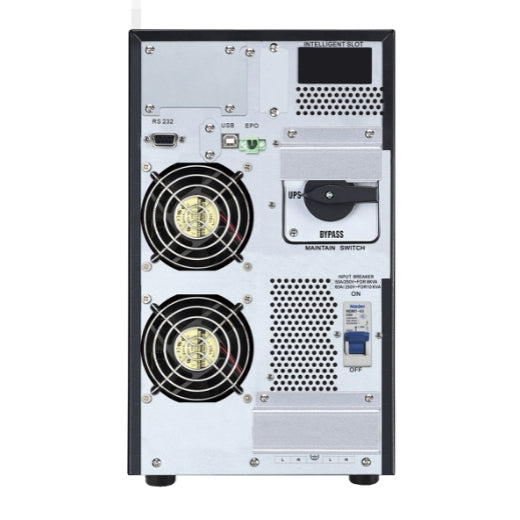

• Input Connections: Hard wire 3-wire (1P + N + E)
• Intelligent Card Slot: Yes

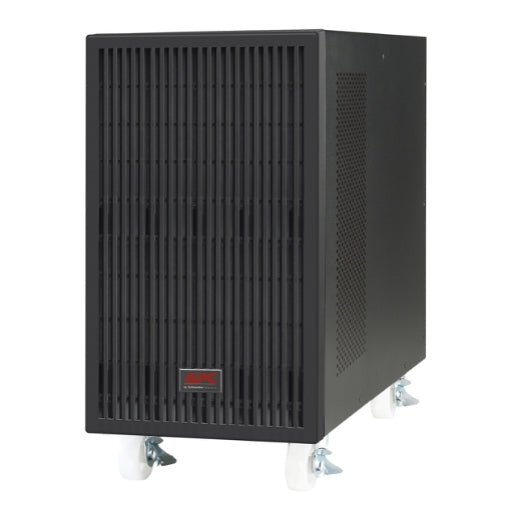

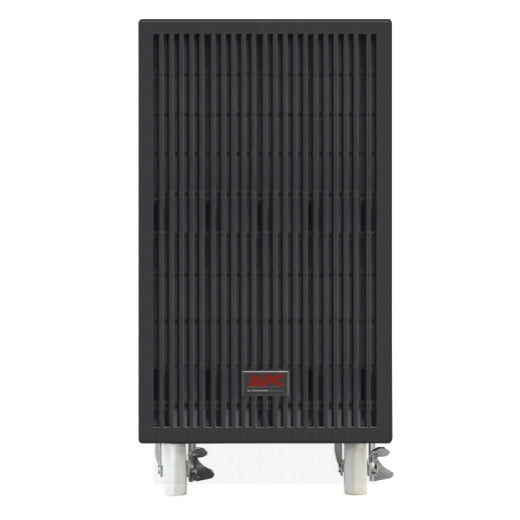

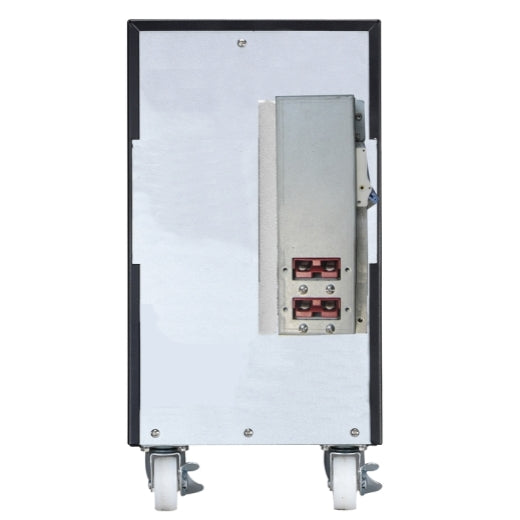

• External Battery Pack: 1

Features

• Automatic internal bypass: Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.
• Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
• ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
• EPO: Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
• Input Power Factor Correction: This product has a power factor corrected input side ensuring that the input power factor is always 1 regardless of load and mains voltage. A power factor of 1 minimizes installation costs by allowing the use of smaller cables and smaller fuses.
• Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
• Intelligent SmartSlot: Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.

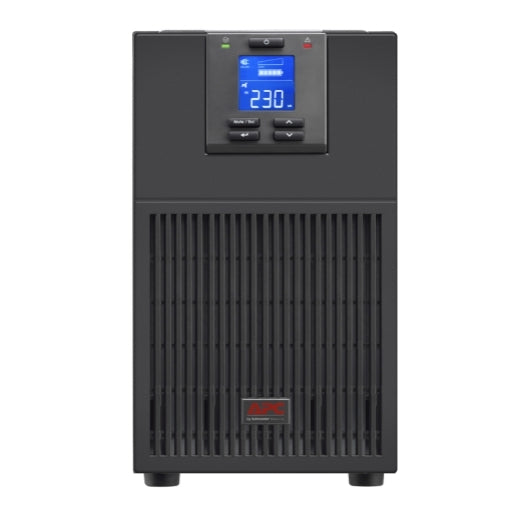

• LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
• Serial connectivity: Provides management of the UPS via a serial port.
• USB connectivity: Provides management of the UPS via a USB port (not available on all models).
• Serial connectivity: Provides management of the UPS via a serial port.
• SmartSlot: Customize UPS capabilities with management cards.
• LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
• LED Indicators: Provide easy-to-read status of the unit and utility power conditions.
• Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
• Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement.
• Disconnected battery notification: Warns when a battery is not available to provide backup power.
• Audible alarms: Provides notification of changing utility power and UPS power conditions
• Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
• Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
• Management Software: Allows you to easily monitor your utility power and manage your UPS.
• Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used.
• ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
• Input Power Factor Correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
• High efficiency: High efficiency rates that remain stable even at lower operating power levels
• Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
• Double conversion on-line topology: Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
