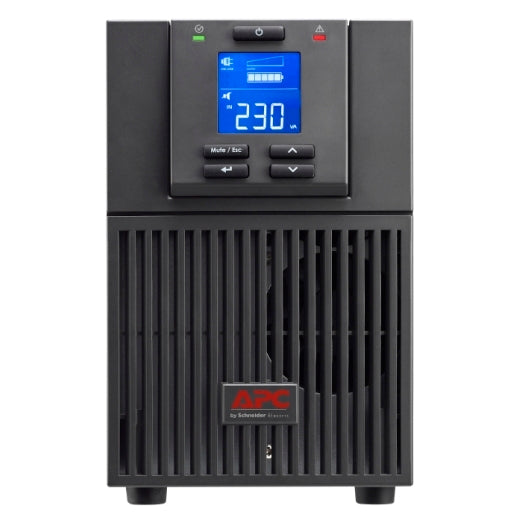

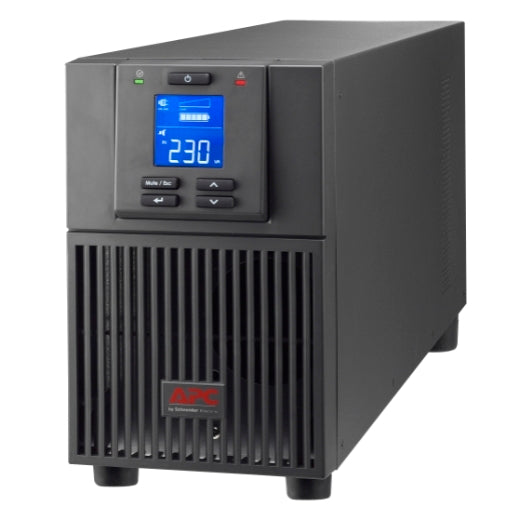

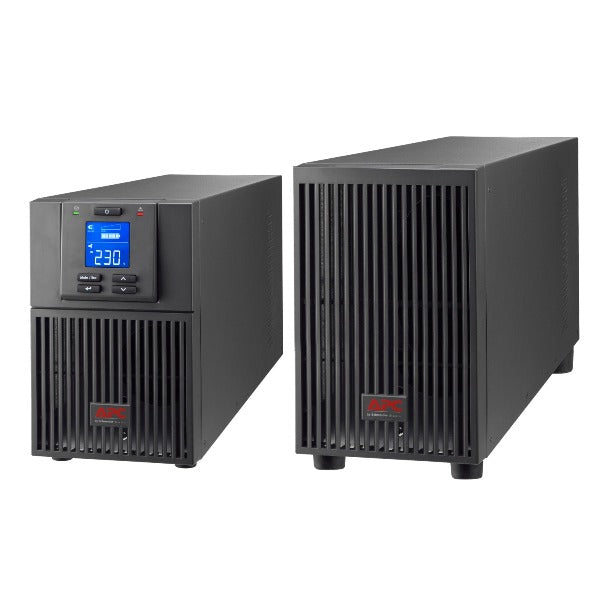

APC Easy UPS On-Line, Ext. Runtime, SRV 3kVA 3000VA, 6x IEC C13 + 1x IEC C19 outlets, 230V, with External Battery Pack SRV3KIL
APC Easy UPS On-Line, Ext. Runtime, SRV 3kVA 3000VA, 6x IEC C13 + 1x IEC C19 outlets, 230V, with External Battery Pack SRV3KIL
Regular price
4,215,700.00 TZS
Regular price
Sale price
4,215,700.00 TZS
Unit price
per
18% Vat Inclusive.
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
- Output power capacity: 3.0kWatts / 3.0kVA
- Nominal Output Voltage: 230V
- Nominal Input Voltage: 230V

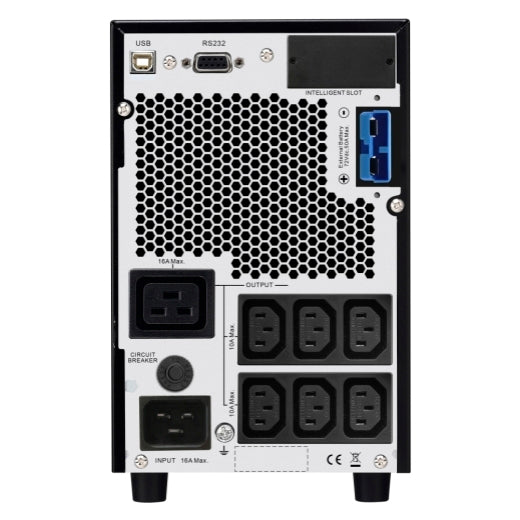

- Output Connections: 6x IEC C13 + 1x IEC C19 outlets

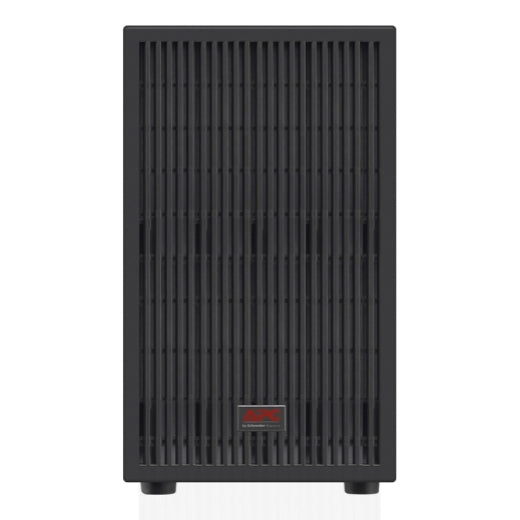

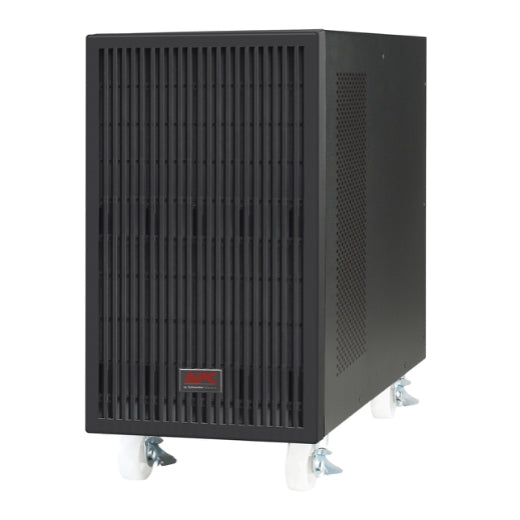

- External Battery Pack: 1
- Pack includes: (1) DC cable, Basic UPS signaling RS-232 cable, CD with software, Country-specific detachable power cord, USB cable, User manual
Features
- Automatic internal bypass: Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.
- ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Input Power Factor Correction: This product has a power factor corrected input side ensuring that the input power factor is always 1 regardless of load and mains voltage. A power factor of 1 minimizes installation costs by allowing the use of smaller cables and smaller fuses.
- Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Intelligent SmartSlot: Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
- LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Serial connectivity: Provides management of the UPS via a serial port.
- USB connectivity: Provides management of the UPS via a USB port (not available on all models).
- Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
- SmartSlot: Customize UPS capabilities with management cards.
- LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
- LED Indicators: Provide easy-to-read status of the unit and utility power conditions.
- Network manageable: Provides remote power management of the UPS over the network.
- Serial connectivity: Provides management of the UPS via a serial port.
- Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Input Power Factor Correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
- High efficiency: High efficiency rates that remain stable even at lower operating power levels
- Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Management Software: Allows you to easily monitor your utility power and manage your UPS.
- Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Double conversion on-line topology: Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
- ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Specifications
Output
- Max Configurable Power (Watts): 2.4kWatts / 3.0kVA
- Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
- Efficiency at Full Load: 88.0 %
- Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
- Other Output Voltages: 220, 240
- Load Crest Factor: 3 : 1
- Topology: Double conversion online
- Waveform type: Sine wave
- Transfer Time: 4 ms typical
- Bypass: Internal bypass (automatic and manual)
Input
- Input frequency: 40 - 70 Hz
- Input voltage range for main operations: 100 - 280 Adjustable (half load)V
- Number of Power Cords: 1
- Efficiency at Full Load: 88.0 %
- Other Input Voltages: 220, 240
Batteries & runtime
- Battery type: Lead-acid battery
- Typical recharge time: 4 hour(s)
- Battery Charge Power (Watts): 234 Watts
- Extendable Run Time: 1
- Battery Volt-Amp-Hour Capacity: 939
- Runtime: : View runtime Graph
Communications & Management
- Interface Port(s): DB-9 RS-232, USB
- Control panel: Multifunction LCD status and control console
- Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Available SmartSlot™ Interface Quantity: 1
Physical
- Height: 336MM, 33.6CM
- Width: 425MM, 42.5CM
- Depth: 425MM, 42.5CM
- Net Weight: 45.9KG
Environmental
- Operating Temperature: 0 - 40 °C
- Operating Relative Humidity: 0 - 95 (Non-condensing) %
- Operating Elevation: 0 - 3048meters
- Storage Temperature: -20 - 50 °C
- Storage Elevation: 0 - 15240meters
