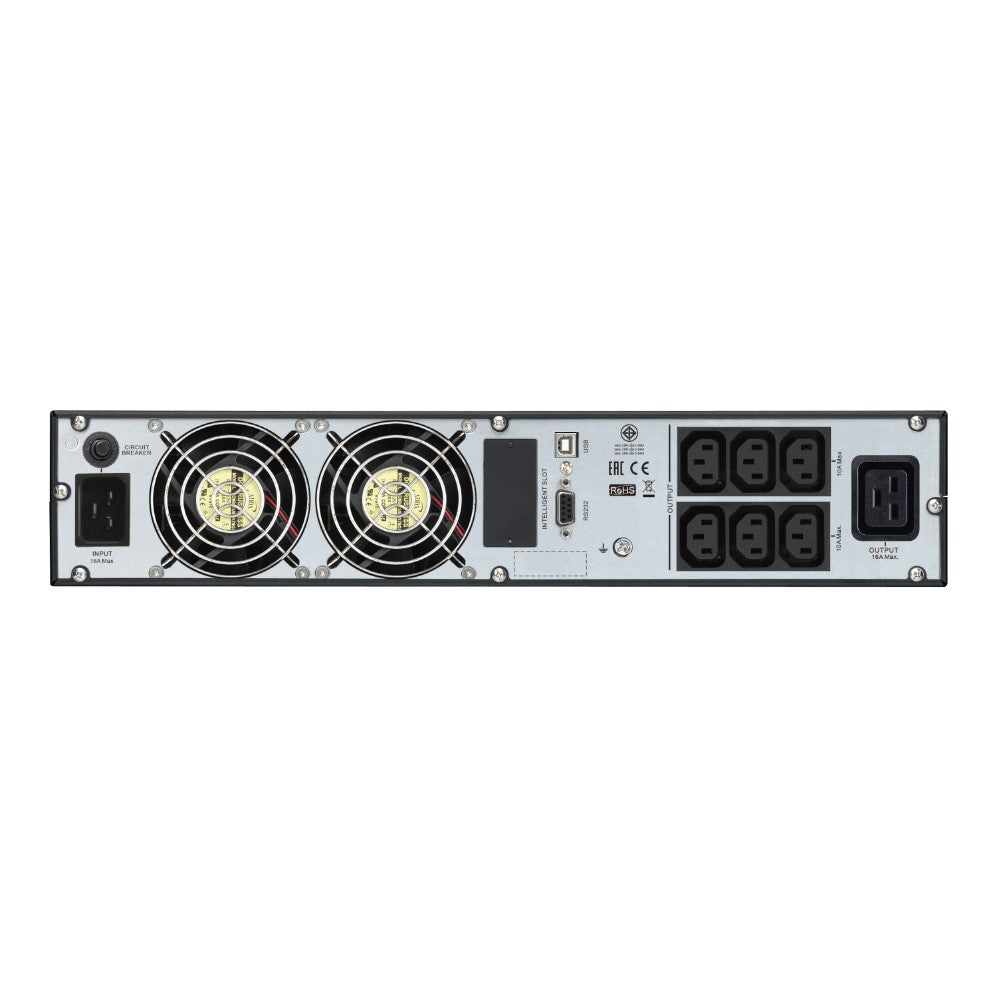

APC Easy UPS On-Line, 3kVA / 3000va, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot Without Rail Kit SRV3KRI

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Key Features

• Output power capacity: 2400 Watts / 3.0 kVA (3000 VA)

• Rack Height: 2U
• Nominal Output Voltage: 230V
• Nominal Input Voltage: 230V
• Output Connections: (6) IEC 60320 C13, (1) IEC 60320 C19

• Input Connections: IEC 60320 C20

TECHNICAL SPECS

Output

• Max Configurable Power (Watts): 2400 Watts
• Max Configurable Power (VA): 3000 VA
• Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
• Efficiency at Full Load: 88.0 %
• Output Voltage Distortion: 3 %
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
• Output Voltages: 220 V, 240 V
• Load Crest Factor: 3 : 1
• Bypass type: Internal bypass (automatic and manual)
• Waveform type: Sine wave

Input

• Input frequency: 40 - 70 Hz Auto sensing
• Input voltage range for main operations: 110 - 285 50 % load, 160 - 280 Full load
• Efficiency at Full Load: 88.0 %
• Other Input Voltages: 220 V, 240 V

Batteries & Runtime

• Battery type: Lead-acid battery
• Typical recharge time: 4 hour(s)
• Nominal Battery Voltage: 72 V
• Replacement Battery: APCRBCV202
• Runtime: 4 min max

Communications & Management

• Control panel: Multifunction LCD status and control console

• Interface Port(s): DB-9 RS-232, USB
• Available slots: 1

Surge Protection and Filtering

• Surge energy rating: 600 Joules

Physical

• Height: 8.6 CM
• Width: 43.7 CM
• Depth: 63.2 CM
• Net Weight: 27.6 KG
• Shipping weight: 28.4 KG

Environmental

• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 (Non-condensing) %
• Operating Elevation: 0 - 3000meters
• Storage Temperature: -15 - 60 °C
• Storage Relative Humidity: 0 - 95 (Non-condensing) %
• Storage Elevation: 0 - 15000meters
• Audible noise at 1 meter from surface of unit: 50.0dBA
• Online thermal dissipation: 745.0BTU/hr
• Protection Class: IP20
