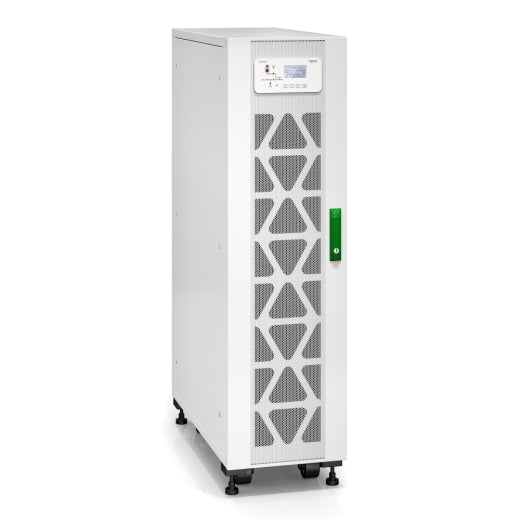

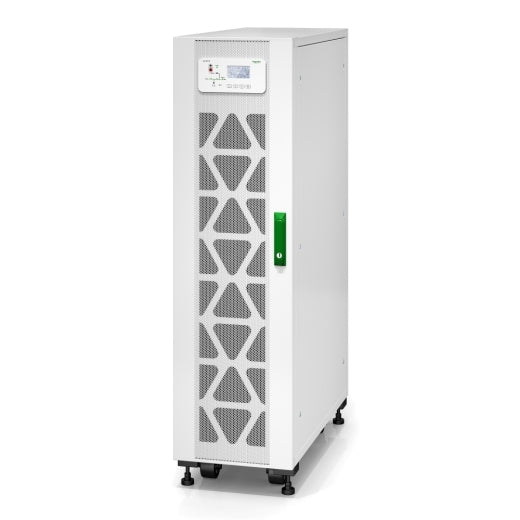

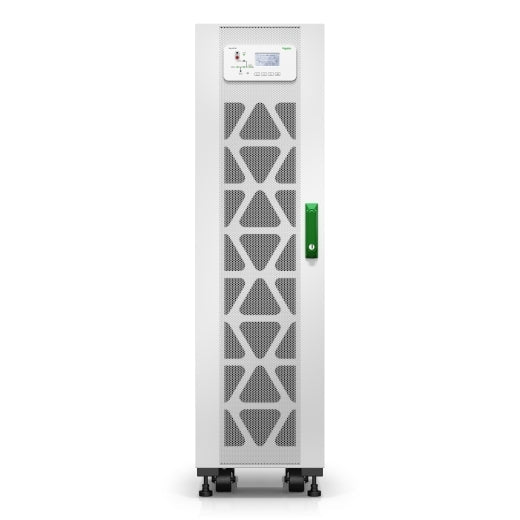

APC Easy UPS 3S 15kVA 15000va 400 V 3:3 UPS With Set of 3 Internal Batteries (INCLUDED) E3SUPS15KHB

APC Easy UPS 3S 15kVA 15000va 400 V 3:3 UPS With Set of 3 Internal Batteries (INCLUDED) E3SUPS15KHB

Regular price 30,130,000.00 TZS
Regular price Sale price 30,130,000.00 TZS
Sale Sold out
18% Vat Inclusive. Shipping calculated at checkout.

Out of stock

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied with a set of 3 internal batteries.

  • View advert: Click here to see the product video

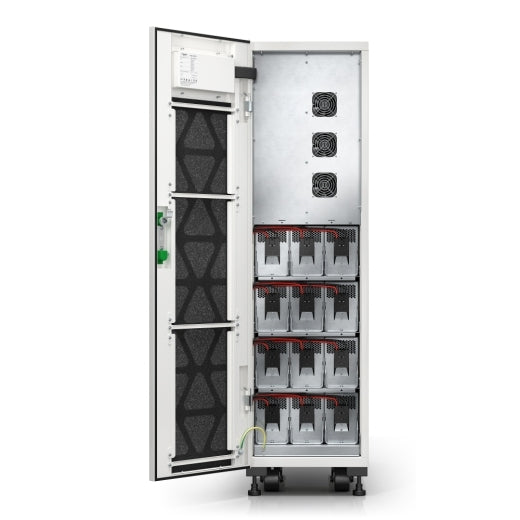

  • Includes: Set of 3 internal batteries, Dust filter, Installation guide
  • Not included: Any input/output cables and or wires NOT INCLUDED

Easy UPS 3S Features & Benefits

Protection

Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites.
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Replaceable dust filters
protect the UPS in harsh environments.


Convenience

Straightforward installation

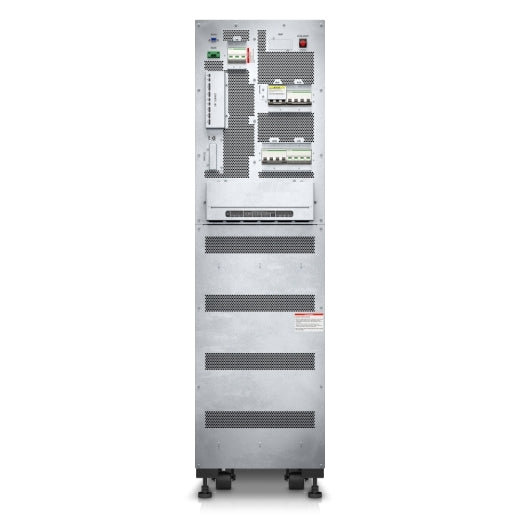

Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.

TECH SPECS


Output

  • Max Configurable Power (Watts): 15.0kWatts / 15.0kVA
  • Output Voltage Distortion: Less than 3 %
  • Output Frequency (sync to mains): 50 Hz Sync to mains, 60 Hz Sync to mains
  • Other Output Voltages: 380 V, 415 V
  • Overload Operation: 130-150% for 1 minute and 125-130% for 10 minutes
  • Topology: Double conversion online
  • Output Voltage THD: < 3% linear load
  • Output Voltage Tolerance: +/- 1.5 %


Input

  • Input frequency: 45 - 65 Hz
  • Maximum Input Current: 28.0A
  • Input voltage range for main operations: 304 - 477V
  • Input Total Harmonic Distortion: Less than 3 % for full load
  • Other Input Voltages: 380 V, 415 V
  • Input Power Factor at Full Load: 0.99


Batteries & Runtime

  • Battery type: VRLA - E3SBT4 X 4pcs (INCLUDED)
  • Nominal Battery Voltage: 240 V
  • Battery Slots Empty: 3
  • End of Discharge Battery Voltage: +/- 198 V DC
  • Maximum Available Short Circuit Current: 10kAmps
  • Efficiency: View Efficiency Graph
  • Runtime Chart: View runtime chart


Communications & Management

  • Interface Port(s): E3S_Parallel, E3S_TempSensor

Physical

  • Height: 1400MM, 140.0CM
  • Width: 380MM, 38.0CM
  • Depth: 928MM, 92.8CM
  • Net Weight of UPS: 112.0KG
  • Shipping weight of UPS: 145.0KG

Environmental

  • Operating Temperature: 0 - 40 °C
  • Operating Relative Humidity: 0 - 95 (Non-condensing) %
  • Operating Elevation: 0 - 1015.05meters
  • Storage Temperature: -15 - 40 °C
  • Storage Relative Humidity: 0 - 95 (Non-condensing) %
  • Storage Elevation: 0 - 15240 meters
  • Online thermal dissipation: 1880.0BTU/hr
  • Protection Class: IP20


Conformance

  • Approvals: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM
  • Standard warranty: 1 year on-site repair or replace with factory authorized Start-Up
  • Free setup (For Dar-es Salaam only): Our APC technicians will provide free installation at your site in Dar es Salaam
  • Setup for up-country: Not provided
