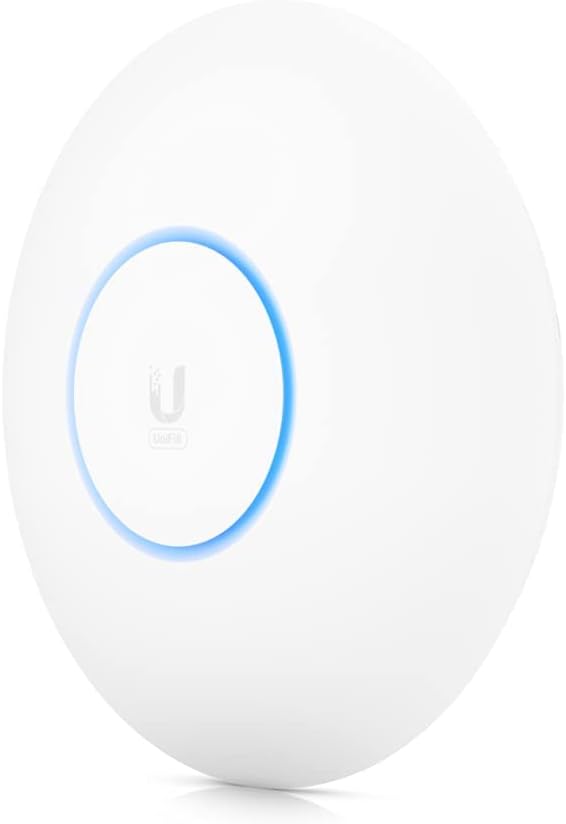

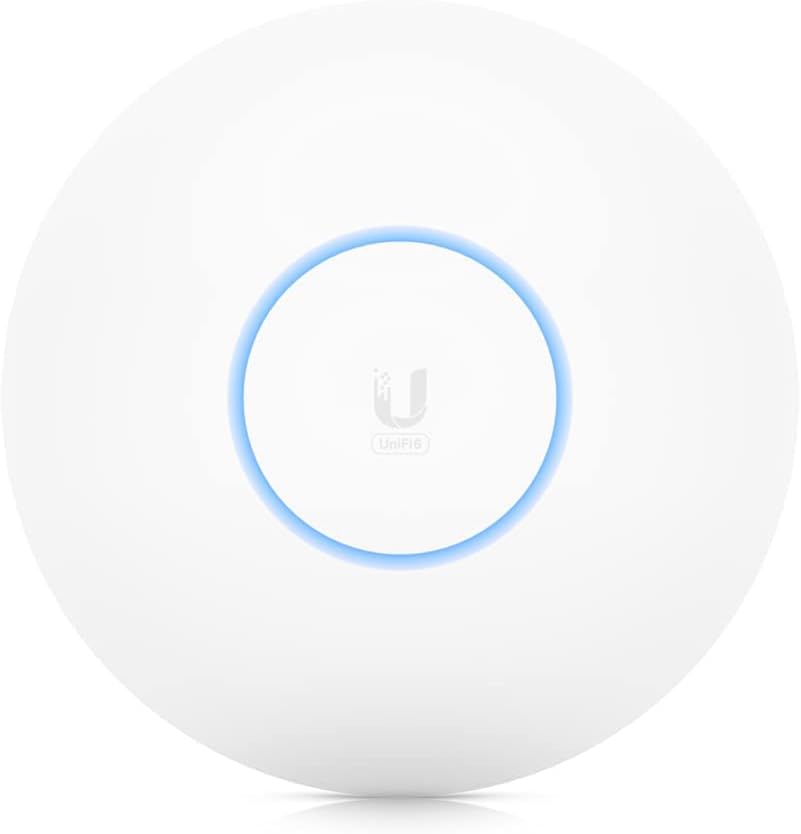

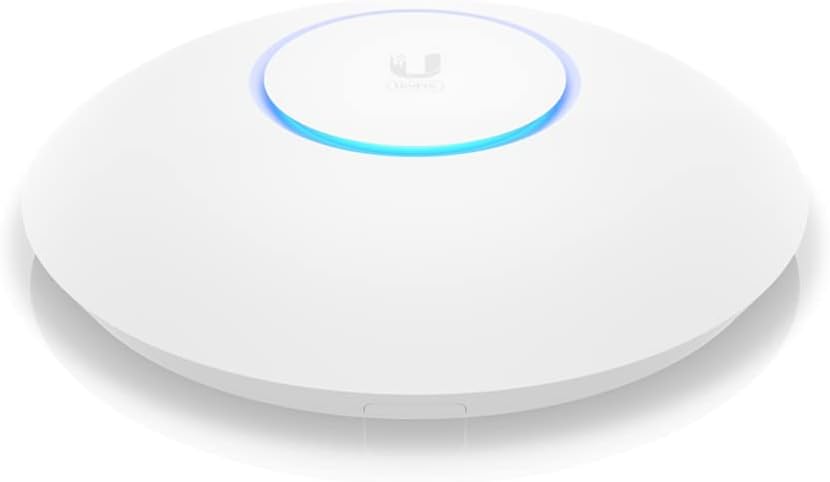

UBIQUITI Unifi Dual Band Long Range Indoor/Outdoor Wifi 6 Access Point U6-LR

U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments. It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).

Quick Features

• 350+ connected devices
• WiFi6 (4x4 MIMO)
• Powered using PoE
• 185 m² (2,000 ft²) coverage

SPECS

Physical

• Dimensions: Ø220 x 48 mm
• Weight Without Mounting Kit: 800 g
• Weight With Mounting Kit: 930 g
• Enclosure materials: Polycarbonate

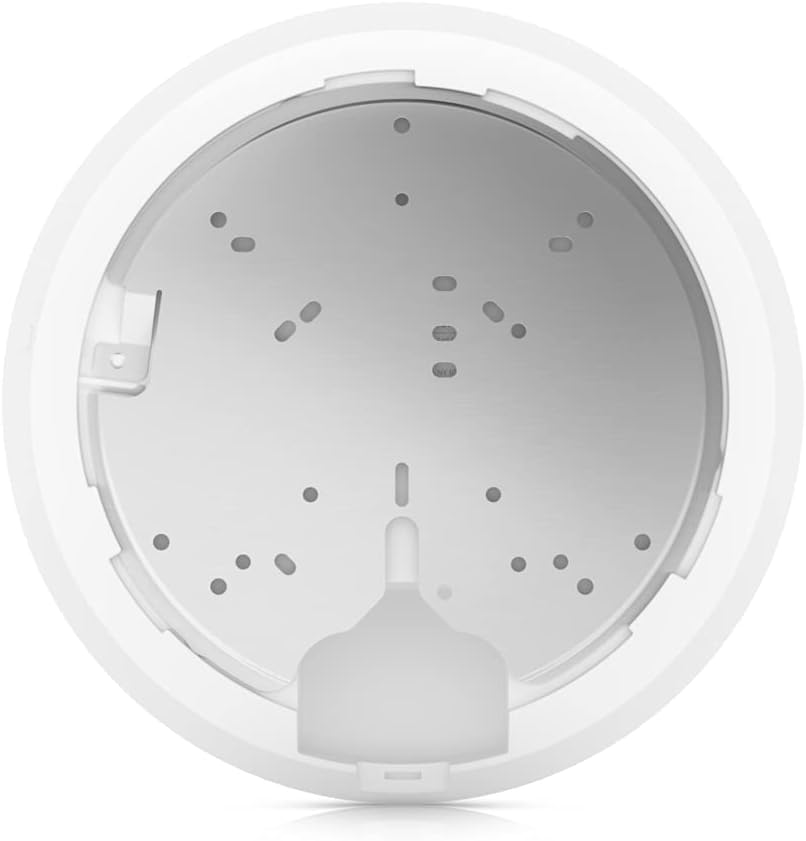

• Mount materials: Stainless steel (SUS304)
• Waterproofing: IP54

Hardware

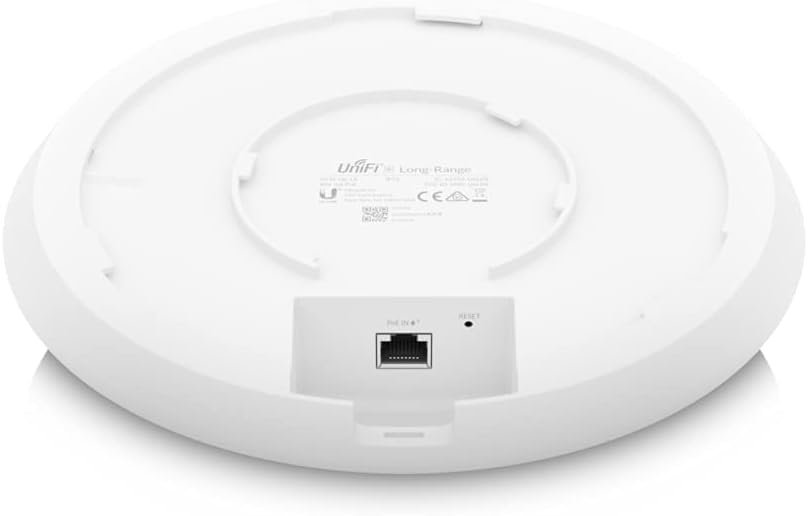

• Networking Interface: (1) GbE RJ45 port
• Management interface: Ethernet and bluetooth
• Button: Reset
• Power Method: PoE+, passive PoE (48V)
• Power Supply: UniFi PoE switch 48V, 0.5A PoE adapter (Not included)
• Supported voltage range: 44—57V DC
• Max. Power Consumption: 18.5 W
• Max.TX Power 2.4 GHz: 26 dBm
• Max.TX Power 5 GHz: 26 dBm
• MIMO 2.4 GHz / 5 GHz: 4 x 4 / 4 x 4
• Throughput rate 2.4 GHz / 5 GHz: 600 Mbps / 2400 Mbps
• Antenna gain 2.4 GHz / 5 GHz: 4 dBi / 5.5 dBi
• LEDs: White/blue
• Button: Factory reset

• Operating Temperature: -30 to 60° C
• Operating Humidity: 5 to 95% Noncondensing

Software

• WiFi Standards: 802.11 a/b/g/, WiFi 4/ WiFi 5/ WiFi 6
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID: 8 per Radio
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• Concurrent Clients: 350+
• Application requirements: UniFi Network Version 6.0.34 and later

Supported Data Rates (Mbps)

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
• 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
