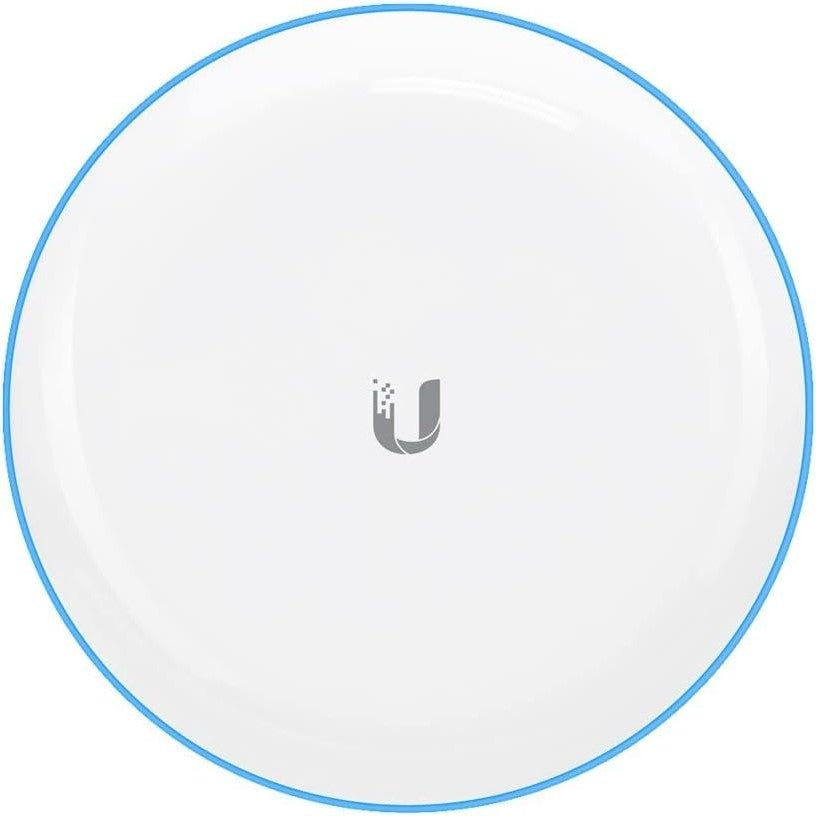

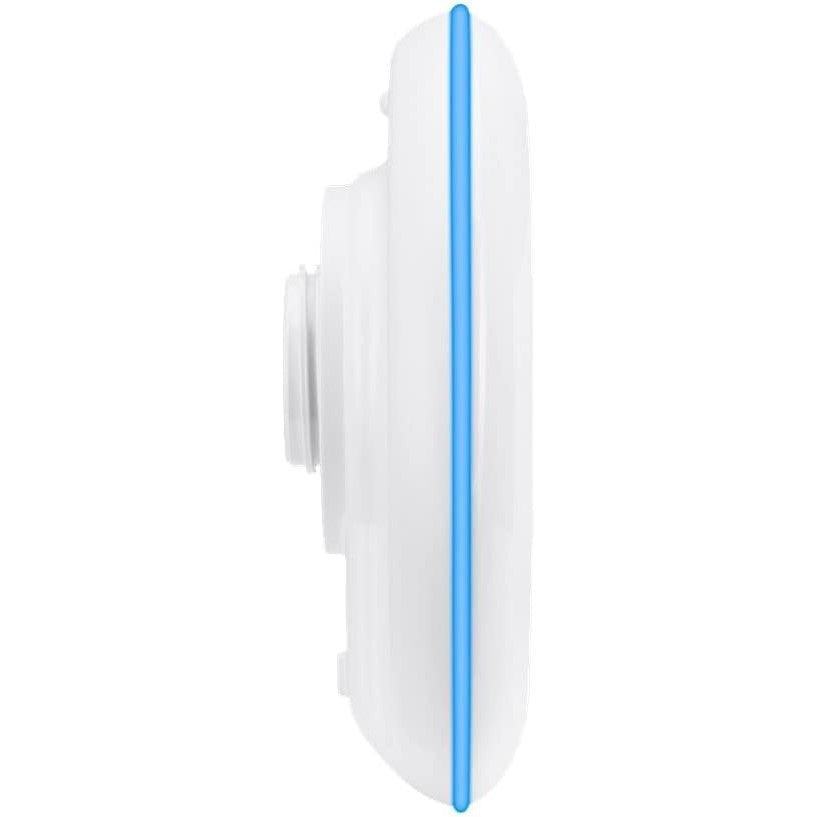

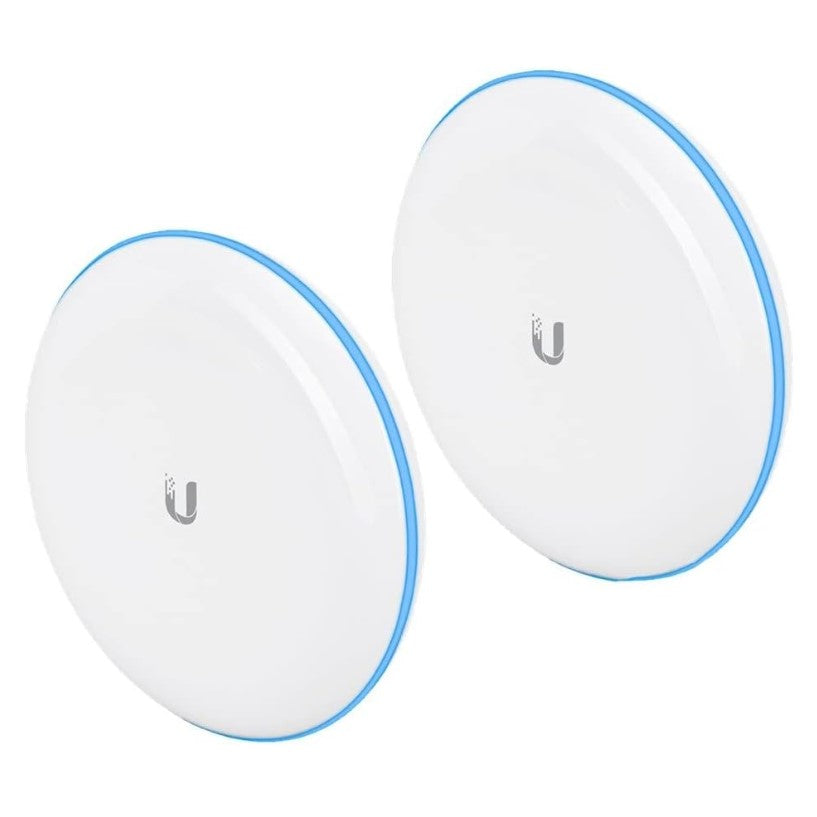

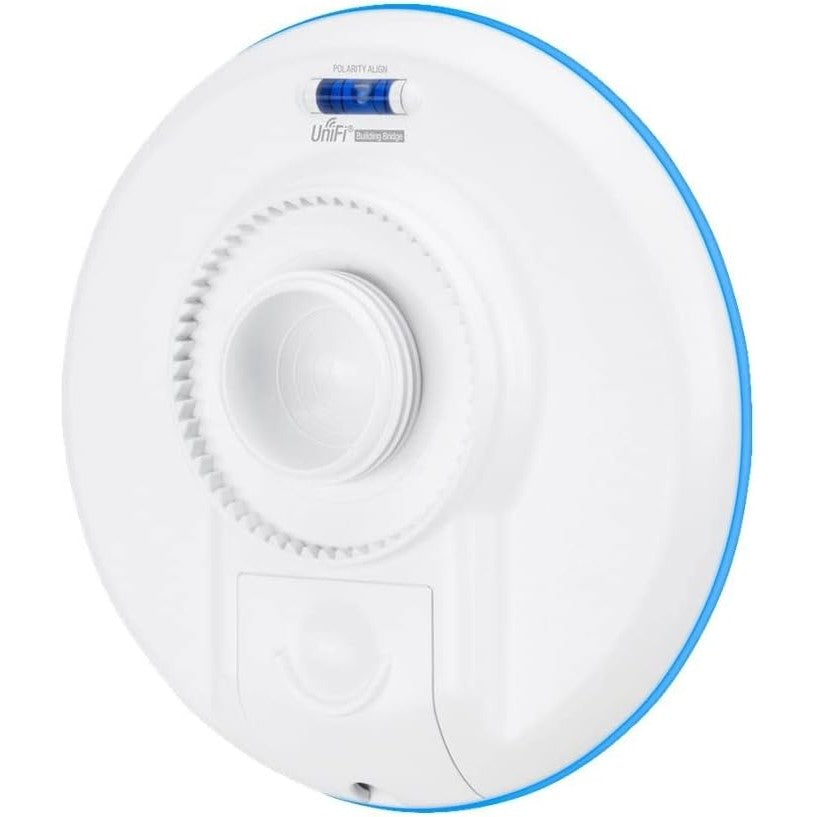

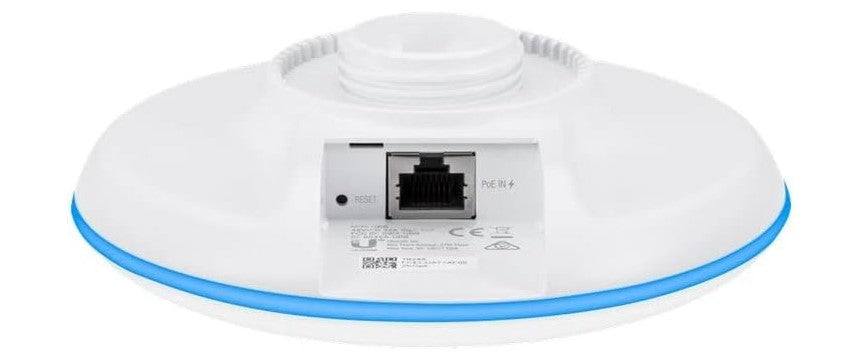

UBIQUITI Unifi 500m Building To Building Wireless Bridge, 2 Device Pack UBB

A 60 GHz wireless point-to-point bridge. The UBB creates a wireless link between two buildings. Overview. The UniFi Building-to-Building Bridge, model UBB, is the ideal solution for high-throughput connectivity with a range of up to 500 m.

Quick Features:

• 500 m (1,640 ft) maximum range
• 60 GHz & 5 GHz dual-radio redundancy
• Includes PoE power adapters
• Built-in LED alignment indicators
• Sold as 2-pack

SPECS

Physical

• Dimensions: Ø140 x 90 mm (Ø5.5 x 3.5")
• Weight: 376 g
• Enclosure material: UV-resistant polycarbonate
• Wind loading: 56 N at 200 km/h (12.6 lbf at 125 mph)

Hardware

• Networking interface: (1) GbE RJ45 port
• Management interface: Ethernet, Bluetooth
• Power method: PoE, Passive PoE, 48V
• Power supply: UniFi PoE switch, 48V, 0.32A Gigabit PoE adapter (Included)
• Max. power consumption: 11W
• GPS: Yes
• Max. TX power: 5 GHz: 25 dBm, 60 GHz: 32–36.5 dBm
• Throughput rate: 5 GHz: 866.6 Mbps, 60 GHz: 1.7 Gbps
• Antenna gain: 5 GHz: 10 dBi, 60 GHz: 17.2 dBi
• 60 GHz elevation beamwidth: 30°
• 60 GHz azimuthal coverage: ±60°
• LEDs: R/G/B
• Button: Factory-reset
• Mounting: Pole (Included)
• Ambient operating temperature: -40 to 70° C (-40 to 158° F)
• Ambient operating humidity: 5 to 95% noncondensing

Software

• WiFi standards: 802.11ac/ad
• Wireless security: WPA2 AES (Always On)
• Operating modes: PtP
