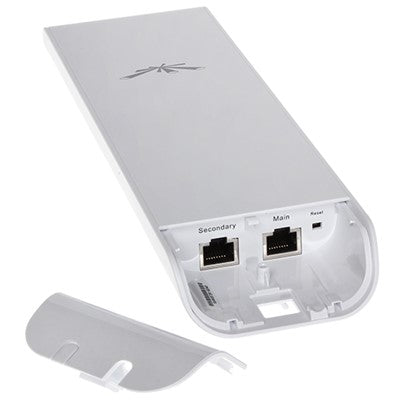

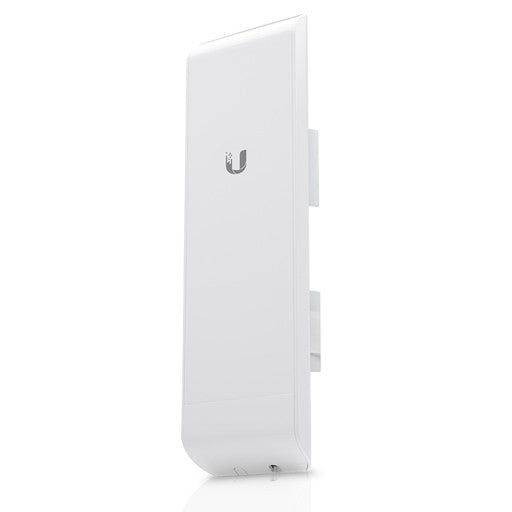

UBIQUITI airMAX NanoStation M5 Indoor/Outdoor 5GHz CPE NSM5

The Ubiquiti airMAX NanoStation M5 (NSM5) is an indoor/outdoor wireless CPE that exemplifies the cutting-edge in compact, low cost outdoor wireless communication devices, engineered to excel in a wide variety of applications including point-to-point (PtP) or point-to-multipoint (PtMP) networks with a up to 15km+ range depending on the setup.

Quick Features:

• 5 GHz frequency band
• Cost-effective, high-performance
• Plug-and-play integration with airMAX antennas

SPECS

Mechanical

• Dimensions: 294 x 31 x 80 mm
• Weight: 400 g
• Enclosure material: UV-stabilized plastic
• Mounting: Pole mount kit (Included)
• Wall mount: Not included

Hardware

• Networking interface: (2) 10/100 MbE RJ45 ports
• Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power supply: 24V, 0.5A PoE adapter (Included)
• Supported voltage range: 22–27V DC
• Max. power consumption: 8W
• Vibration test: ETSI300-019-1.4
• Ambient operating temperature: -30 to 75° C
• Ambient operating humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, ICC, RoHS

System

• Frequency: 5 GHz
• Operating frequency: 5170-5875 MHz
• Gain: 14.6-16.1 dBi
• Cross-pol isolation: 22 dB Min.
• Max. VSWR: 1.6:1
• Beamwidth: 43° (H-pol) / 41° (V-pol) / 15° (Elevation)
• Polarization: Dual linear
