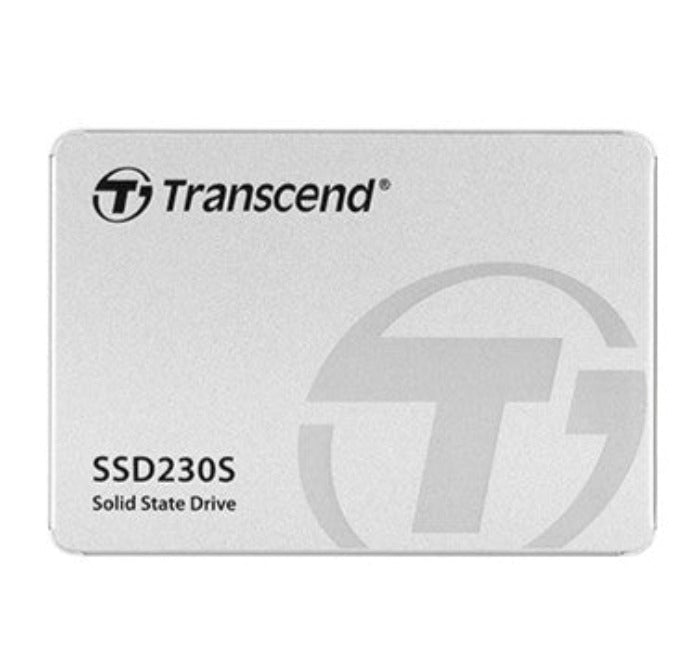

TRANSCEND 256 GB TB SATA III 2.5" SSD 6Gb/s SSD230S

Transcend's SATA III 6Gb/s SSD230S uses the latest 3D NAND technology that features vertical, stacked expansion of storage cells. By using high-quality flash memory and enhanced firmware algorithms, the SSD230S delivers greater performance and reliability.

3D expansion to break through limits

Unlike planar NAND memory, 3D NAND flash features memory cells stacked vertically in multiple layers. 3D NAND overcomes density limitations of 2D planar NAND, and delivers a higher level of performance and endurance.

Performance Boost for Everyday Computing

Taking full advantage of the SATA III 6Gb/s interface and built-in SLC caching technology, Transcend's SSD230S achieves exceptional transfer speeds of up to 560MB/s read and 520MB/s write.

Guaranteed Endurance and Reliability

Transcend's SSD230S offers great Terabytes Written (TBW) values (up to 2,240 TB) indicating the total amount of data you can write into the drive over its lifetime.

A better choice than HDD

Solid-state drives dominate the market for PC upgrades because they are faster and lighter than traditional hard disk drives. SSDs also consume less power, create less noise when in operation, and are more shock-resistant than hard drives.

RAID engine and LDPC coding

Detects and corrects transfer errors to prevent data corruption

Garbage Collection

Relocates existing data to release memory blocks

Wear-leveling

Distributes data evenly across memory cells to prolong SSD's lifespan

DevSleep

Intelligently shuts down SATA interface when not in use to prolong device's battery life

SSD Scope software

Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.

SPECS

• Dimensions: 100 mm x 69.85 mm x 6.8 mm
• Weight: 53 g

• Flash Type: 3D NAND flash
• Capacity: 256 GB

• Operating Temperature: 0°C (32°F) ~ 70°C (158°F)
• Operating Voltage: 5V±5%

• Sequential Read/Write (CrystalDiskMark) - by capacity 2.5" SSD: Up to 560/500 MB/s
• 4K Random Read/Write (IOmeter) - by capacity 2.5" SSD: Up to 65,000/85,000 IOPS
• Terabytes Written (TBW) - by capacity 2.5" SSD: 280 TBW
• Mean Time Between Failures (MTBF): 2,000,000 hour(s)
• Drive Writes Per Day (DWPD): 0.3 (3 yrs)

• Operating System: Microsoft Windows 7 or later, Linux Kernel 2.6.31 or later

• TRIM & NCQ Command: Yes
• S.M.A.R.T.: Yes
• DDR3 DRAM Cache: No
• Advanced Garbage Collection: Yes
• DevSleep Mode: Yes
• RAID Engine: Yes
• LDPC Coding: Yes
