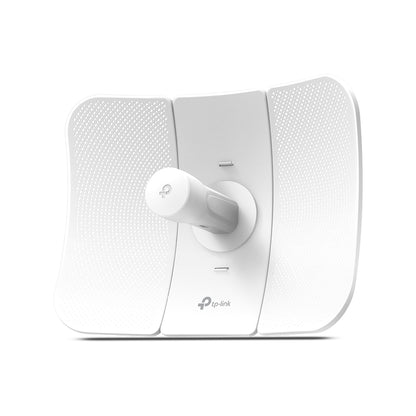

TP-link Pharos CPE610 5GHz 300Mbps 23dBi Long Range Outdoor CPE

• Up to 300Mbps on 5GHz wireless data rates
• 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
• Excellent beam directivity, improved latency and noise cancellation

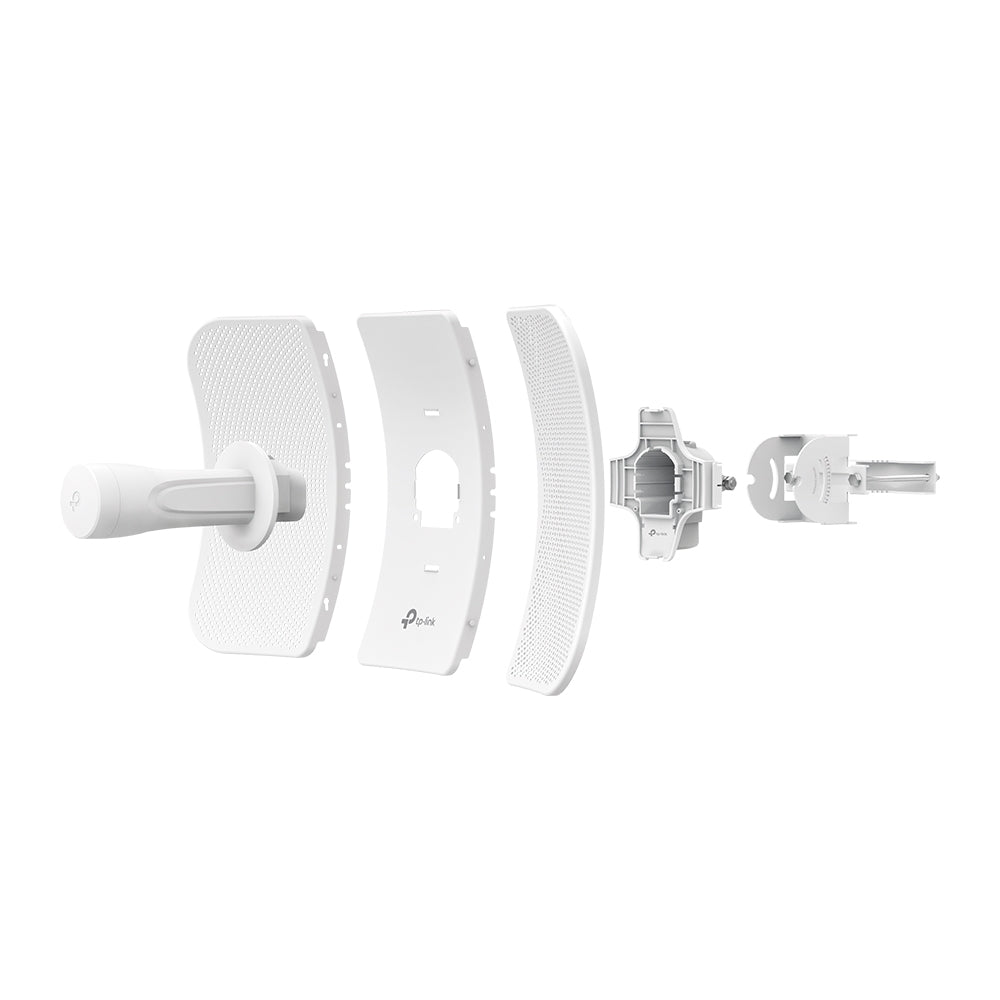

• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
• Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
• TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
• Pharos Control gives administrators a free, centralized management system
• Passive PoE supports to allow flexible deployment and convenient installation

2×2 MIMO MAXtream TDMA

23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission.

Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission

With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.

Pharos Control – Centralized Management System

CPE610 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.

SPECS

HARDWARE FEATURES

• Processor: 560MHz CPU, MIPS 74Kc
• Memory: 64MB DDR2 RAM,8MB Flash
• Interface: 1 10/100Mbps Shielded Ethernet Port (LAN/POE), 1 Reset Button
• Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
• Voltage range: 16-27VDC
• Power Consumption: 8.8 W (Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable)
• Dimensions ( W x D x H ): 14.4 x 11.0 x 8.1 in
• Antenna Gain: 23dBi
• Antenna Beam-width: 9°(Azimuth), 7°(Elevation)
• Protection: 15KV ESD Protection, 6KV Lightning Protection
• Enclosure Material: Outdoor PC stabilized plastic
• Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11a/n
• Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
• Wireless Speeds: Up to 300Mbps (40MHz,Dynamic), Up to 144.4Mbps (20MHz,Dynamic), Up to 72.2Mbps (10MHz,Dynamic), Up to 36.1Mbps (5MHz,Dynamic)
• Frequency: 5.15~5.85GHz
• Transmit Power: Max. 25dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES

• Network Configuration: WAN: Static/Dynamic/PPPoE/L2TP/PPTP, LAN: Static/Dynamic/DHCP, Forwarding: ALG/UPnP/Virtual Server/Port Trigger, Security: SPI Firewall/ Ping Forbidden/DoS Protection, Access Control, Static Routing, Bandwidth Control, IP & MAC Binding
• Wireless Configurations: Pharos MAXtream TDMA Technology, Selectable Channel Width: 5/10/20/40MHz, Auto Channel Selection, Transmit Power Control, Dynamic Frequency Selection(DFS), WDS Enable/Disable, Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption, SSID Broadcast Enable/Disable, Multi-SSID with VLAN Tagging(AP Mode only), Distance/ACK Timeout Setting, Wireless MAC Address Filter, Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
• Management: Discovery and Remote Management via Pharos Control application, HTTP/HTTPS Web-based management, System log, SNMP Agent(v2c), Ping Watch Dog, Dynamic DDNS, SSH Server
• System Tools: Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory, Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP, Spectrum Analyzer, Speed Test, Ping, Traceroute
• System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications, Hardware watch dog

POE ADAPTER FEATURES

• Dimensions(W x D x H): 4.3 x 2.2 x 1.3 in
• Interfaces: 1 AC Jack with Earth Ground, 1 10/100Mbps Shielded Ethernet Port (Power + Data), 1 10/100Mbps Shielded Ethernet Port (Data)
• Button: Remote Reset Button
• Power Status LED: Green
• Input: 100-240VAC, 50/60Hz
• Output: 24VDC, 0.5A Max: +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

OTHERS

• Package Contents: Outdoor Wireless CPE, 24V 0.5A Passive PoE Adapter, Pole Mounting Straps, AC Power Cord, Installation Guide
• Operating Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
