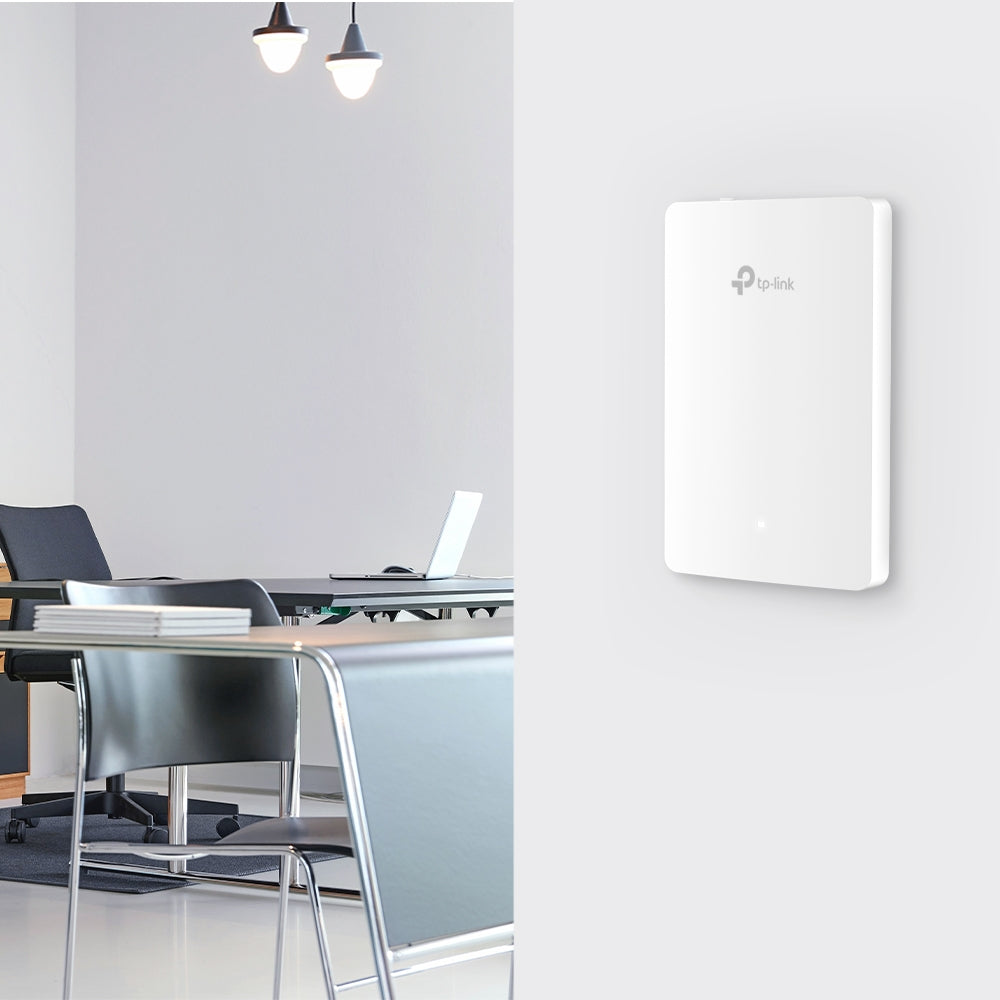

TP-LINK EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point

New Experience of Room Coverage with WiFi 6

What is WiFi 6? (also known as 802.11ax)

WiFi 6 is the next generation standard in WiFi technology. WiFi 6 also known as “AX WiFi" or "802.11ax WiFi” builds and improves on the current 802.11ac WiFi standard. WiFi 6 was originally built in response to the growing number of devices in the world. If you own a VR device, multiple smart home devices, or simply have a large number of devices in your household, then a WiFi 6 router might just be the best WiFi router for you. In this guide, we’ll go over Wi-Fi 6 routers and break down how they’re faster, increase efficiency, and are better at transferring data than previous generations.

Superior WiFi 6 Speeds

Meet the demands for smoother online activities and more device connections. The latest 802.11ax technologies such as 1024 QAM and Long OFDM Symbol allows the EAP to boost overall speeds up to 1775 Mbps.

High-Performance Connectivity for Better User Experience

The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.

Seamless Integrated into Omada SDN Platform

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

More than Speed, Security Matters

Safeguard your network and data against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.

Secure Guest Network with Up to 16 SSIDs

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Guest Network with Facebook Wi-Fi and SMS Login

Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks

With advanced enterprise security, WPA3 provides strengthened data security for previously unsecured and open WiFi hotspots.

Effortless Deployment with PoE Powered

With 802.3af/802.3at Power over Ethernet supported, there’s no need to install additional wiring in the building. Plug the existing Ethernet cables in, and you’re ready to go.

Full Gigabit Ports to Bridge Network

Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple Gigabits, allowing you to connect several devices to your gigabit network. One of the downlink ports offers PoE pass-through‡ to eliminate the need for that extra power port.

Quick, Simplified Installation

With an easy-to-install design, there is no need to spend time and money bringing someone in to install our EAP.

Easy Management with the Omada App

Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

SPECS

HARDWARE FEATURES

• Interface: Uplink: 1× 10/100/1000 Mbps Ethernet Port, Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input
• Physical Security Lock: Yes
• Button: Reset
• Power Supply: 802.3af/at PoE
• Power Consumption EU: 10W (802.3at PoE, PoE Out off)
• Dimensions ( W x D x H ): 143 × 86 × 20 mm
• Antenna: 2 Dual-Band Antennas, 2.4 GHz: 2× 3 dBi, 5 GHz: 2× 4 dBi
• Mounting: Wall Plate Mounting

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 1201 Mbps, 2.4 GHz: Up to 574 Mbps
• Wireless Functions: 16 SSIDs (Up to 8 SSIDs on each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Seamless Roaming, Beamforming, MU-MIMO, Rate Limit, Load Balance, Airtime Fairness, Band Steering, Reboot Schedule, Wireless Schedule, RADIUS Accounting, MAC Authentication, Wireless Statistics, Static IP/Dynamic IP
• Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT

• Omada App: Yes
• Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
• Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging: Syslog Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management: VLAN Yes
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

• Package Contents: AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall, Installation Guide, Mounting Kits
• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Operating Humidity: 10–90% RH non-condensing
