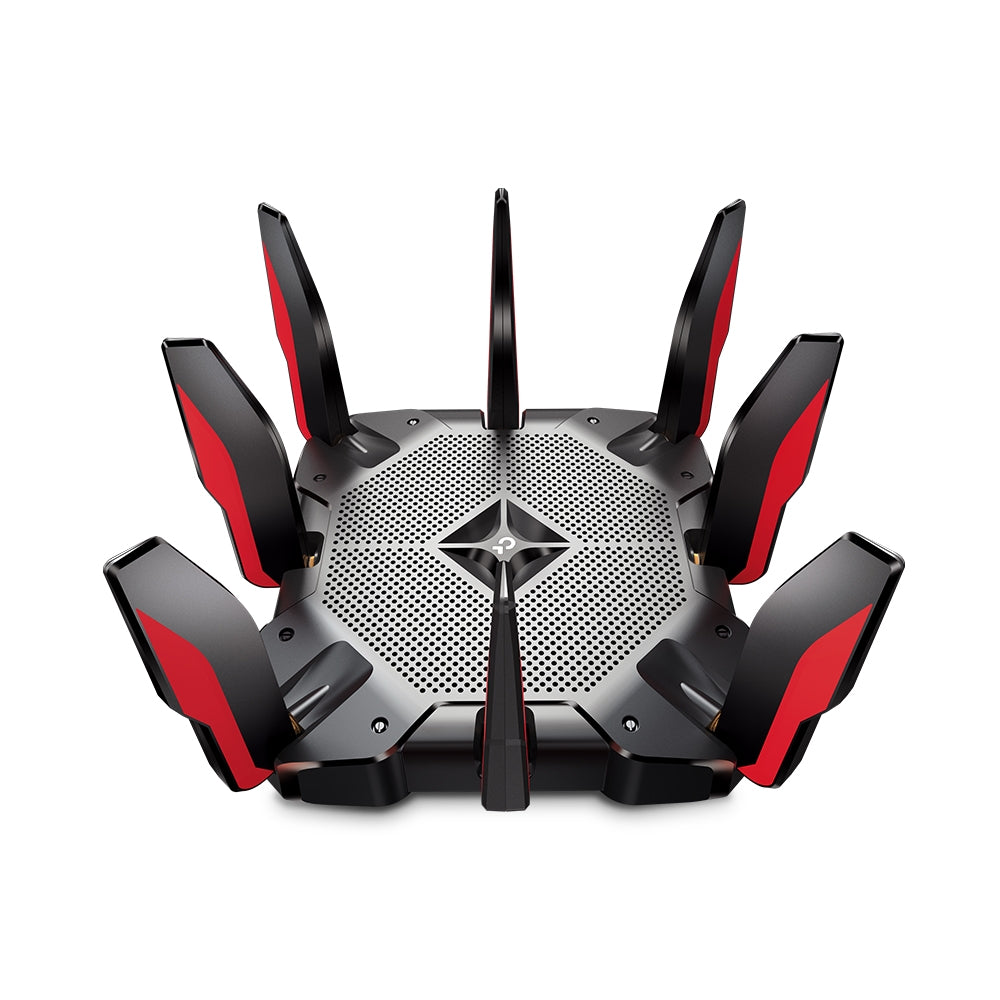

TP-LINK Archer AX11000 Next-Gen Tri-Band Gaming Router

• Ultra-Fast Wi-Fi for Extreme Gaming: AX11000 speed machine that delivers Wi-Fi Speeds Over 10 Gbps: 4804 Mbps (5 GHz Gaming) + 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)
• Game Accelerator: Detect and optimize gaming streams, to ensure your gaming stays immersive
• Game Protector: Keep your accounts and documents safe with a free lifetime subscription of Homecare™ security system.
• Game Statistics: Real-time latency, game duration and network resource allocation in a glance with fine-tuned UI.
• Ultra Connectivity: 2.5 Gbps WAN port and eight Gigabit LAN ports, 2 USB 3.0 in Type A and Type C provide extensive connectivity.
• Powerful Processing: 1.8 GHz Quad-Core CPU and 3 coprocessors ensure your network performance always at peak run.
• Highly Efficient: OFDMA increases the avg. throughput and reduces the lag.2
• Easy and Smart: Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.

ENTER THE 10 Gbps WI-FI ERA

Faster speed the router is, less congestion for gaming rigs. Armed with Wi-Fi 6, Archer AX11000 becomes the next-level speed machine that offers astonishing Wi-Fi speeds up to 10756 Mbps with an extended range.

LIGHTNING ATTACK TO DEFEAT LATENCY

More connected devices shall bring more fun rather than dragging the performance. Revolutionary OFDMA is introduced to improve average throughput by 4× and cut the latency. Take advantage of incredibly low latency to demolish your enemies, with your team crew together.

4x CAPACITY

• OFDMA: Multiple devices share one channel at same time
• MU-MIMO: Offers 4×4 connections to reduce wait time
• BSS COLOR: Keeps transmissions under overlapped signals

CRUSH THE LAG WIN THE GAME

GAME ACCELERATOR automatically detects and optimizes gaming streams, to ensure your gaming stays immersive, and keep your network as fast as your reaction speed.

KNOW YOUR NETWORK

GAME STATISTICS shows the real-time latency, game duration and system utilization at a glance in a refreshed dashboard with fine-tuned UI elements, puts total control at your fingertips.

KEEP ALL ELEMENTS SECURITY

GAME PROTECTOR keeps your accounts and system safe. This free lifetime subscription of the HomeCare™ security system delivers comprehensive antivirus protection that ensures your total security while gaming online.

GAME ON THE FAST LANE

• GAMING BAND: a dedicated gaming band for your game rigs, makes your online games and your families' Netflix 4K streaming no more competitor.
• DFS: Expands available channel automatically, get on the more vacant lane and boost the game.

BATTLE-TESTED HARDWARE

Equipped with 1.8 GHz Quad-Core CPU and 1 GB of RAM to handle huge throughput and crush the lag. Link Aggregation and USB 3.0 type C and type A ports ensure virtually any device can connect to your home network.

SPECS

WIRELESS FEATURES

• Standards: Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz
• WiFi Speeds: 5 GHz: 4804 Mbps (802.11ax, HE160), 2.4 GHz: 1148 Mbps (802.11ax)
• WiFi Range: 4-6 Bedroom House (8× Detachable High-Performance Antennas
  Multiple antennas form a signal-boosting array to cover more directions and large areas), Beamforming (Concentrates wireless signal strength towards clients to expand WiFi range), High-Power FEM (Improves transmission power to strengthen signal coverage), 4T4R (Multiple streams in the same band strengthen the fault tolerance in transmission)
• WiFi Capacity: Tri-Band (Allocate devices to different bands for optimal performance), 4×4 MU-MIMO (Simultaneously communicates with multiple MU-MIMO clients), OFDMA (Simultaneously communicates with multiple Wi-Fi 6 clients), Airtime Fairness (Improves network efficiency by limiting excessive occupation), DFS (Access an extra band to reduce congestion), 12 Streams (Connect your devices to more bandwidth)
• Working Modes: Router Mode, Access Point Mode

HARDWARE

• Processor: 1.8 GHz 64 Bit Quad-Core CPU

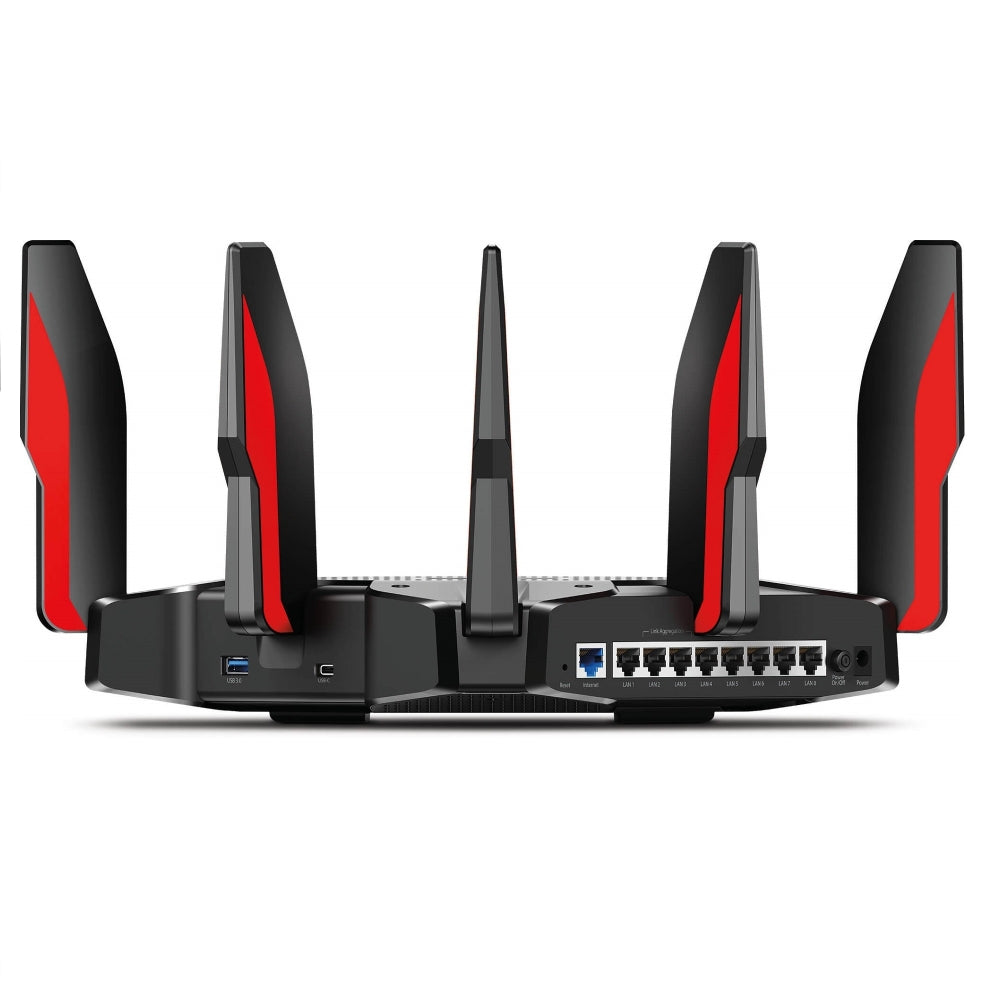

• Ethernet Ports: 1× 2.5 Gbps WAN Port, 8× Gigabit LAN Ports (Static Link Aggregation (LAG) available with 2× LAN ports)
• USB Support: 1× USB-C 3.0 Port, 1× USB-A 3.0 Port

• USB Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
• USB Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server
• Buttons: Wi-Fi On/Off Button, Power On/Off Button, LED On/Off Button, WPS Button, Reset Button
• Power: 12 V ⎓ 5 A

SECURITY

• WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeCare™ Antivirus (Malicious Site Checker, Port Intrusion Prevention, Infected Device Isolation, Notification and Log)
• Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
• VPN Server: OpenVPN, PPTP

SOFTWARE FEATURES

• Protocols: IPv4, IPv6
• Game Center: Game Accelerator (Detects and optimizes gaming streams to keep latency as low as possible), Game Statistics (Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail), Game Protector (Keep your accounts and system safe with HomeCare™ antivirus protection)
• Service Kits: HomeCare™
• OneMesh™ Supported: Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
• Parental Controls HomeCare™: Custom Profiles, Content Filtering, App Block, URL Filtering, Time Limit, Time Schedule (Bedtime), Log Insight
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: Game Accelerator QoS, QoS by Device, QoS by Application
• Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS
• NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: TP-Link, NO-IP, DynDNS
• Management: Tether App, Webpage

OTHERS

• Package Contents: Wi-Fi Router Archer AX11000, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
• System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
• Dimensions (W×D×H): 288 × 288 × 184 mm
