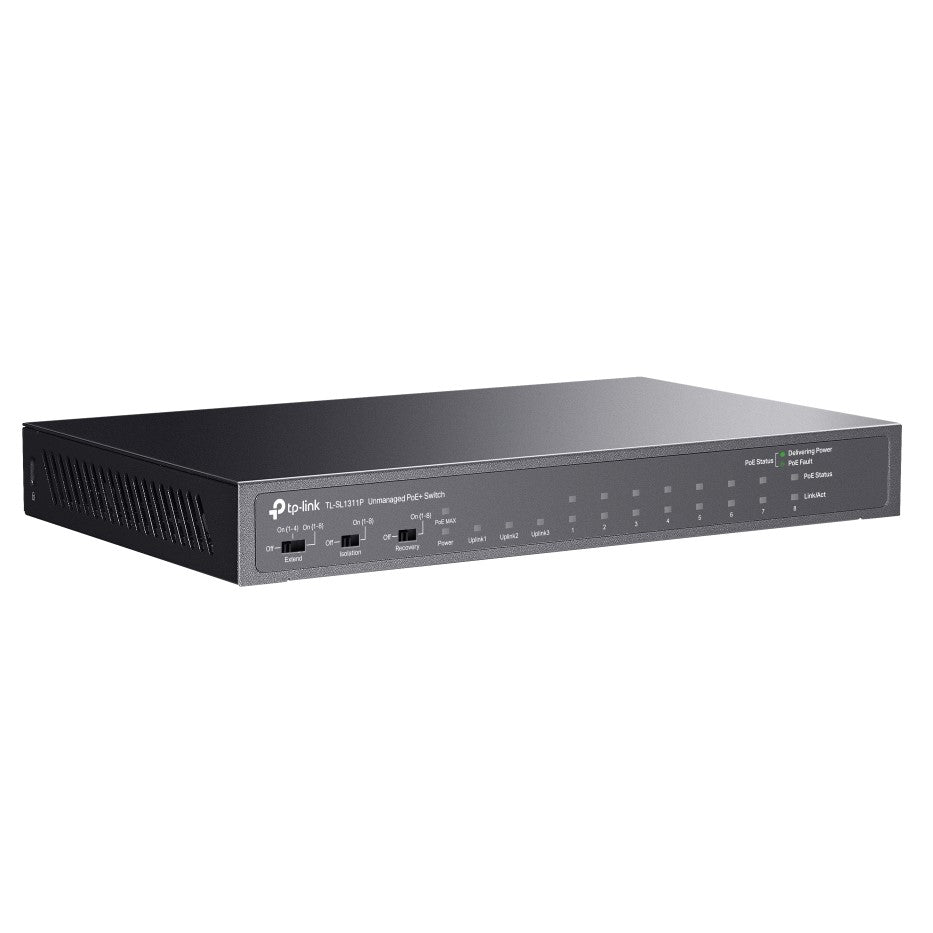

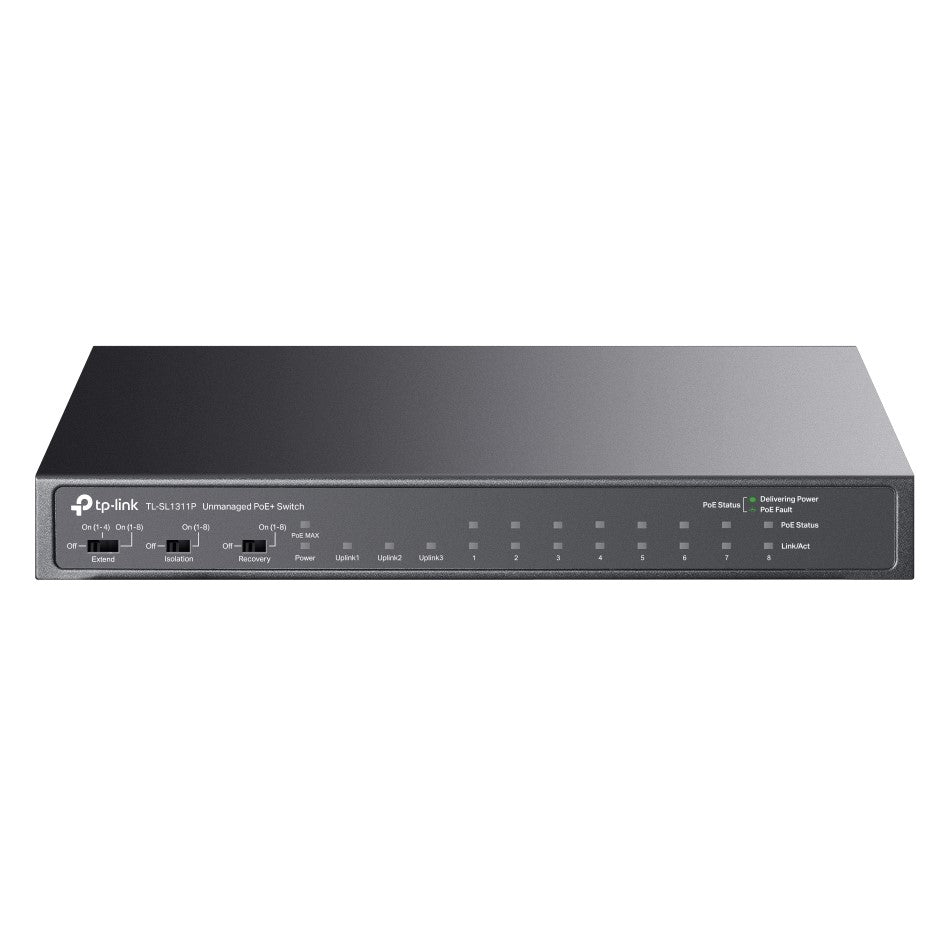

TP-LINK 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+, TL-SL1311P

FEATURES

• 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
• 8× PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 65 W for 8 PoE ports
• Up to 250 m data and power transmitting range under Extend Mode
• Isolation Mode allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Fanless Design reduces power consumption and works silently in its location
• Plug and play with no configuration required

SPECIFICATIONS

HARDWARE FEATURES

• Interface: 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port, AUTO Negotiation, AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• Power Supply: External Power Adapter(Output: 53.5VDC / 1.31A)
• Packet Forwarding Rate: 5.65 Mpps
• PoE Ports (RJ45): Standard: 802.3at/802.3af compliant
• PoE Ports: Port 1- Port 8
• PoE Power Budget: 65W
• Mac Address Table: 2K
• Jumbo Frame: 16 KB
• Switching Capacity: 7.6 Gbps
• Dimensions ( W x D x H ): 209 × 126 × 26 mm
• Max. Power Consumption: 5.1 W (220/50Hz. no PD connected), 77.32 W (220/50Hz. with 65W PD connected)
• Max. Heat Dissipation: 19.13 BTU/h (no PD connected), 263.70 BTU/h (with 65W PD connected)


SOFTWARE FEATURES

• Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs, Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission), Isolation Mode Button (Ports 1–8), PoE Auto Recovery Button (Ports 1–8), Mac Address Auto-Learning and Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Back pressure for Half-Duplex Mode
• Transmission Method: Store-And-Forward


OTHERS

• Certification: CE, FCC, RoHS
• Package Contents: TL-S:1311P, Power Adapter, Installation Guide
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10% ~ 90% non-condensing
