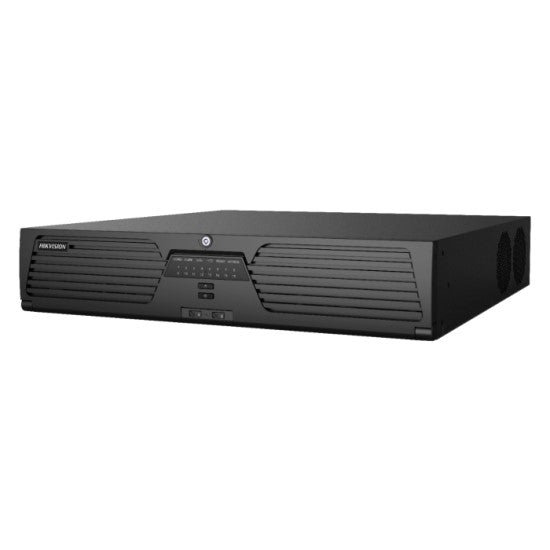

HIKVISION Ultra Series 64-ch, 2U, 4k, 8 SATA Interfaces, NVR DS-8664NI-I8

Quick features

• Up to 64 channel IP cameras can be connected
• Up to 12 MP high-definition live view, storage and playback
• Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
• 2 HDMI (different source) and 2 VGA (different source) interfaces
• 8 HDD can be used for continuous video recording
• Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

Specifications

Network

• Incoming/outgoing bandwidth: 320 Mbps, or 200 Mbps (when RAID is enabled)
• Remote connections: 128

General

• Power supply: 100 to 240 VAC, 50 to 60 Hz,200 W
• Consumption (without HDD): ≤ 30 W
• Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity: 10 to 90 %
• Dimensions (W × D × H): 445 × 470 ×90 mm
• Weight (without hard disk): ≤ 8 kg

Video/Audio input

• IP video input: 64-ch,Up to 12 MP resolution
• Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Video/Audio output

• Recording resolution: 12 MP/ 8 MP/ 6 MP/ 5 MP/ 4 MP/ 3 MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF
• CVBS output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• VGA 1 /HDMI 1 output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA 2 /HDMI 2 output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio output: 2-ch, RCA (2.0Vp-p, 1 KΩ)
• Decoding format: H.265+/H.265/H.264/H.264+/MPEG4
• Video resolution: 12 MP/ 8 MP/ 6 MP/ 5 MP/ 4 MP/ 3 MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF
• Synchronous playback: 16-ch
• Capability: 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Network management

• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

• SATA: 8 SATA interfaces for 8HDDs
• eSATA: 1 eSATA interface
• Capacity: Up to 10TB capacity for each HDD

Disk array

• RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
• Number of arrays: 4

External interface

• Network interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Serial port: RS-232; RS-485; Keyboard
• USB interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm in/out: 16/4
