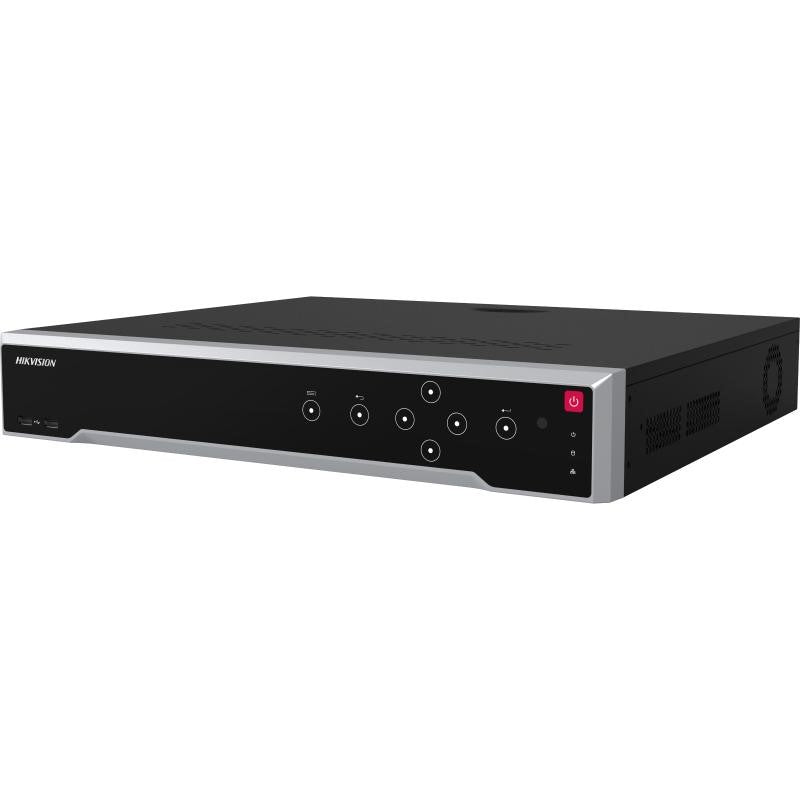

HIKVISION Ultra Series 64-ch, 1.5U, 8k, 4 SATA Interfaces, NVR DS-7764NI-M4

Quick features

• H.265+/H.265/H.264+/H.264 video formats
• Up to 64-ch IP camera inputs
• Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
• Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
• 2 HDMI and 1 VGA interfaces, 8K or dual 4K video outputs
• Up to 8-ch IP speakers can be connected

Specifications

Video And Audio

• IP Video Input: 64-ch
• Incoming Bandwidth: 400 Mbps
• Outgoing Bandwidth: 400 Mbps
• HDMI 1 Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• HDMI 2 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output Mode: HDMI1/ VGA simultaneous output, HDMI1/ HDMI2 independent output
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format: H.265+/H.265/H.264+/H.264
• Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous Playback: 16-ch
• Decoding Capability: 2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
• Dual-Stream Recording: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/ G.711alaw/ G.722/ G.726/ AAC/ MP2L2

Network

• Remote Connection: 128
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
• Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Camera Access Protocol: ONVIF(Version 2.5), RTSP

Auxiliary Interface

• eSATA: 1 eSATA interface
• SATA: 4 SATA interfaces
• Capacity: Up to 16 TB capacity for each disk
• Serial Interface: 2 RS-485 (half-duplex), 1 RS-232
• Alarm In/Out: 16/9
• USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered
• DC 12V: 12 VDC, 1 A power output

General

• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Consumption: ≤ 15 W (without HDD)
• Working Temperature: -10 to +55º C (+14 to +131º F)
• Chassis: 1.5U chassis, 19 inch rack mount
• Dimensions (W × D × H): 445 mm × 400 mm × 75 mm

Certification

• FCC: Part 15 Subpart B, ANSI C63.4-2014
• CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
