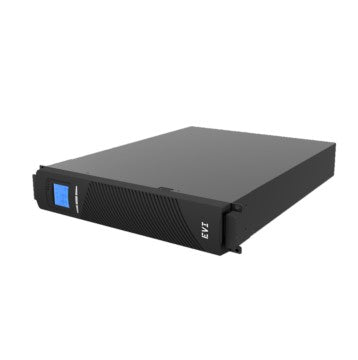

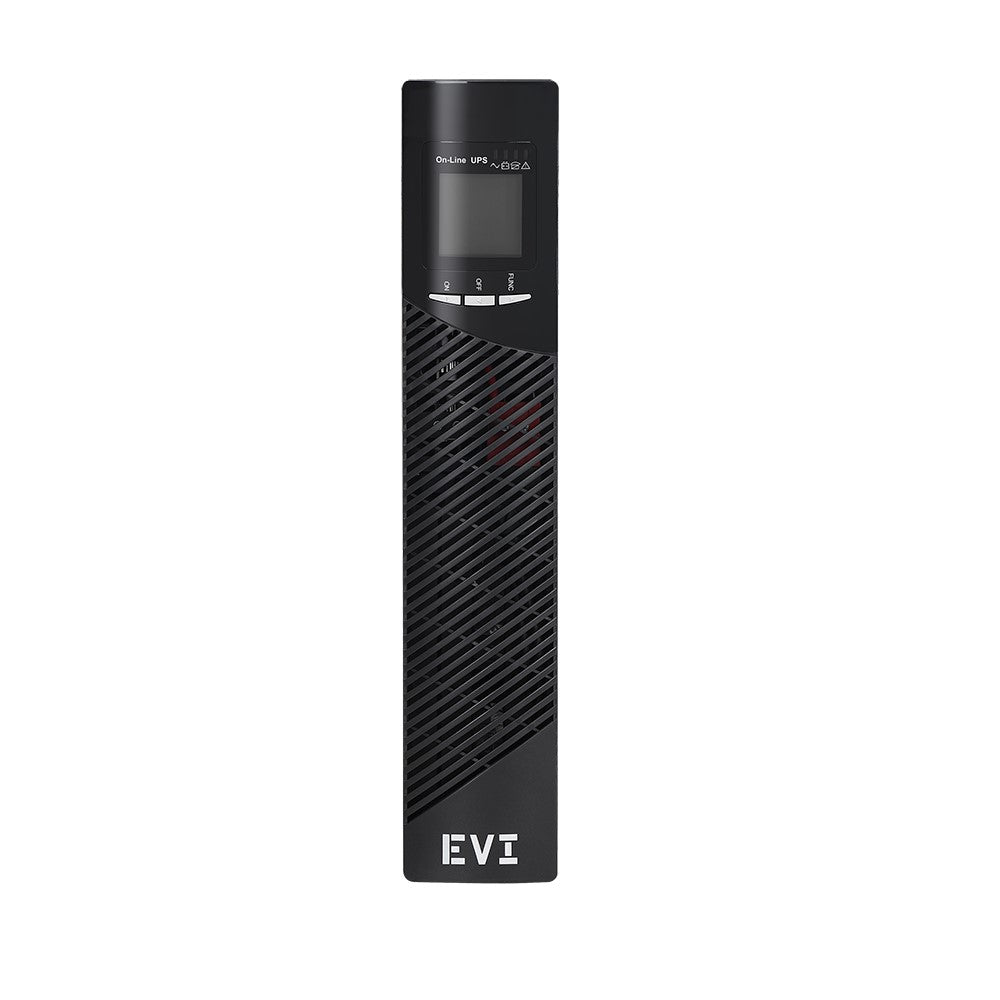

EVI UPS Online Rack/Tower, 2000VA, 2kVA 230V, USB Port, RS232 & SNMP Card Slot Outlets, UPS2000UC13OR

• Online double conversion
• Rack Mountable
• Wide input voltage range (110 ~ 300 Vac)
• Input power factor: 0.99 (With PFC)
• Output power factor: 1.0
• 50 Hz / 60 Hz frequency converter mode
• Emergency power off function (EPO)
• ECO mode support
• Optional Communication ports: SNMP, USB, RS232
• Smart battery charging design for optimized battery performance
• Selectable output voltage: 200, 208, 220, 230, 240 Vac

Technical Specifications

Power

• Maximum configurable power in VA: 2000 VA
• Max Configurable Power (Watts): 2000 Watts
• Phase: Single phase

Input

• Low voltage transfer to bypass:  160V @ 100-80% load, 120V @ 70-60% load, 110V @ 60-50% load
• High voltage transfer to bypass: 300V
• Input voltage range: 55-150V/ 110-300V @ 60% load, 80-145V/160-300V @ 100% load
• Operating frequency range: 40-70 Hz
• Power factor: 0.99
• Generator input: Supported
• Nominal voltage: 200/ 208/ 220/ 230/ 240 V

Output

• Output voltage: 200/ 208/ 220/ 230/ 240 V
• Power factor: 1
• Voltage regulation: 1%
• Voltage frequency on Battery mode: 50/60 Hz
• Voltage frequency on line mode: 47-53 Hz or 57-63 Hz
• Crest factor: 3:1
• Topology: Pure sinewave
• Transfer time: Battery mode 0, Inverter mode 4ms (typical)

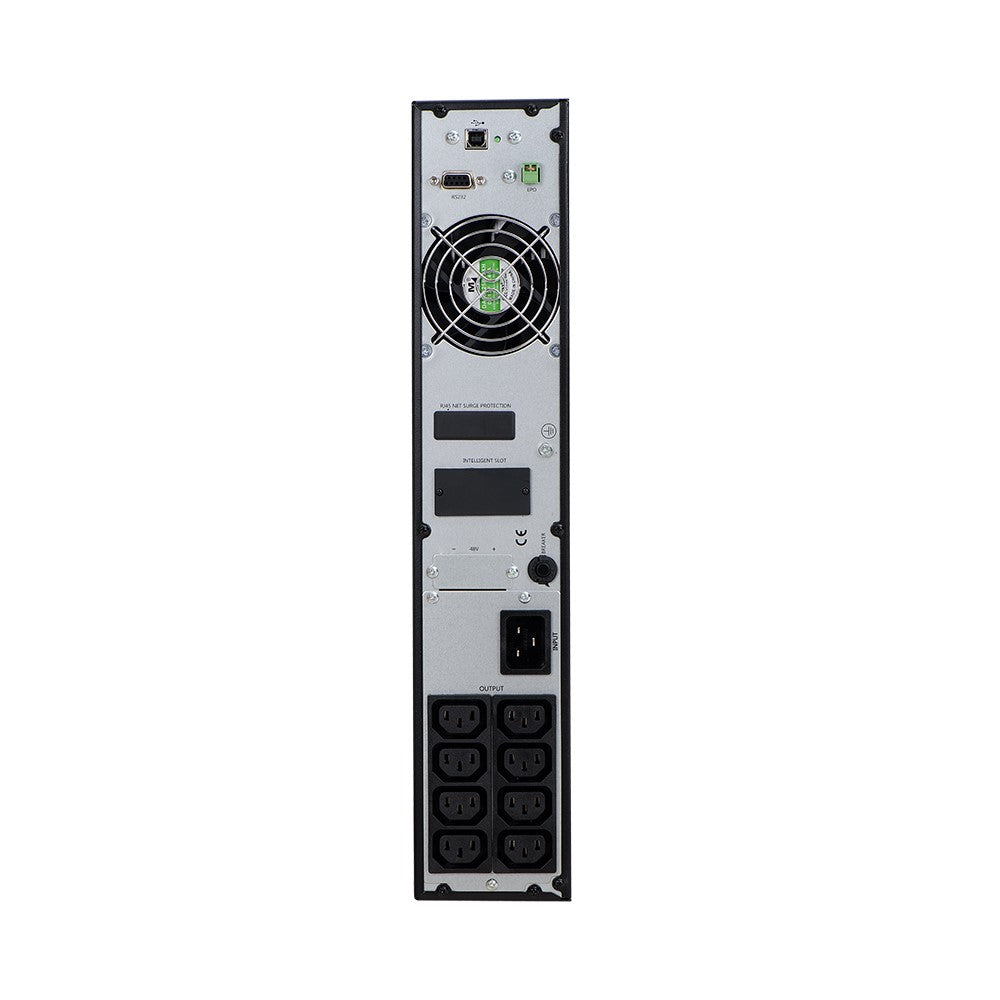

• Output outlets: USB Port, RS232 & SNMP Card Slot Outlets

Efficiency

• AC mode: 92%
• Battery mode: 88%

Battery

• Battery type: Lead-acid battery, 12V, 9Ah
• Number of batteries: 4
• Typical recharge time: 4 hours charge to 90% capacity
• Charging voltage: 54.7 vdc

System & operating features

• Short circuit: Hold whole system
• Overheat: Line mode: Switch to bypass, Backup mode: UPS will shut down
• Low battery: Alarm and switch off
• Alarms: Line failure, low battery, overload, system fault
• Operating Temperature: 0 - 40 °C
• Noise level: <50 dBA

Physical

• Dimensions: 440 x 460 x 86.5 mm
• Weight: 19.1kg
