EATON 9E Smart Online UPS, 6000VA, 230V, Hardwired/fixed Input, USB, RS232 Serial, 9E6000I

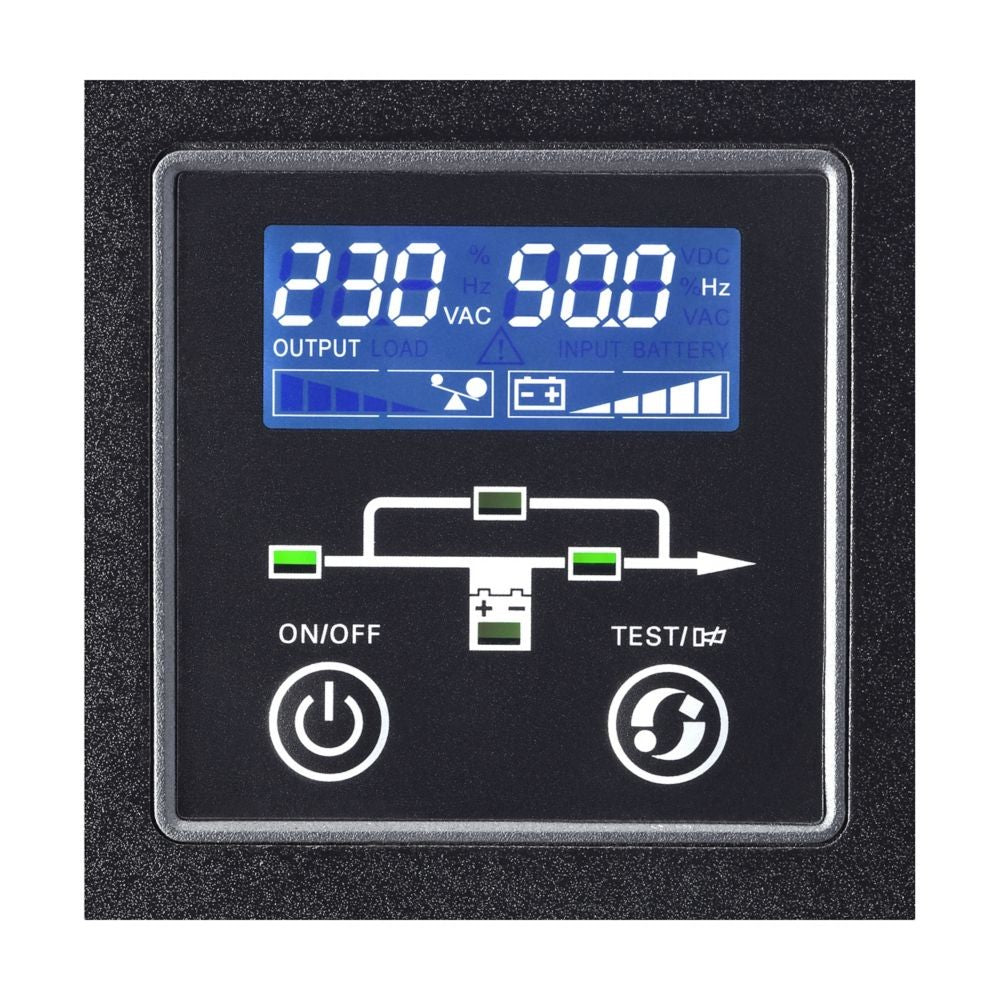

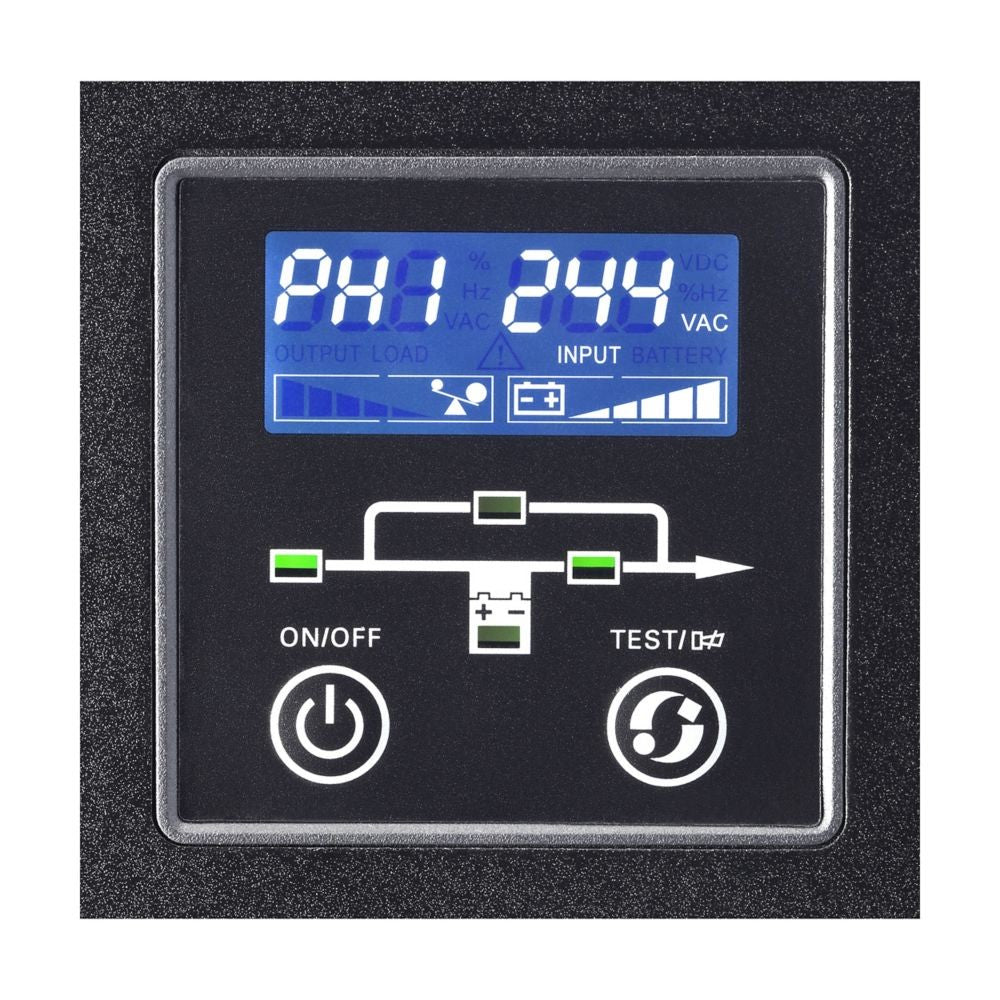

• Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interface
• Easily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (NOT supplied with this product)
• Integrate 9E into all software environments. The Eaton 9E is delivered with Eaton’s Intelligent Power™ Software and is compatible with all major OS including advanced integration in VMware vCenter and Microsoft Hyper-V
• Auto shutdown function

TECHNICAL SPECS

Physical

• Dimensions: 613 x 708 x 263 mm
• Net weight: 68 kg
• Mounting support: Floor
• Communication: USB, RS232 Serial
• Optional Communication: Smart slot (Not included)

Input

• Nominal frequency: 50/60 Hz ( 46/65 Hz working range)
• Input voltage without battery: 176V-276V
• Input nominal voltage: 230V default
• Input plug: Hardwired/fixed connection

Output

• Maximum configurable power in W: 4800 W
• UPS type: Online
• Output voltage range: 220V-240V
• Maximum configurable power in VA: 6000 VA
• Output sockets: Hardwired/ fixed connection

Environmental

• Ambient air temperature for operation: 0…40 °C
• Operating altitude: 0...3000 m

Batteries & Runtime

• Battery voltage: 12 V
• Battery capacity: 9.0 Ah x 15pcs
• Management: Automatic battery test, deep-discharge protection
• Approx. Runtime: Not available
