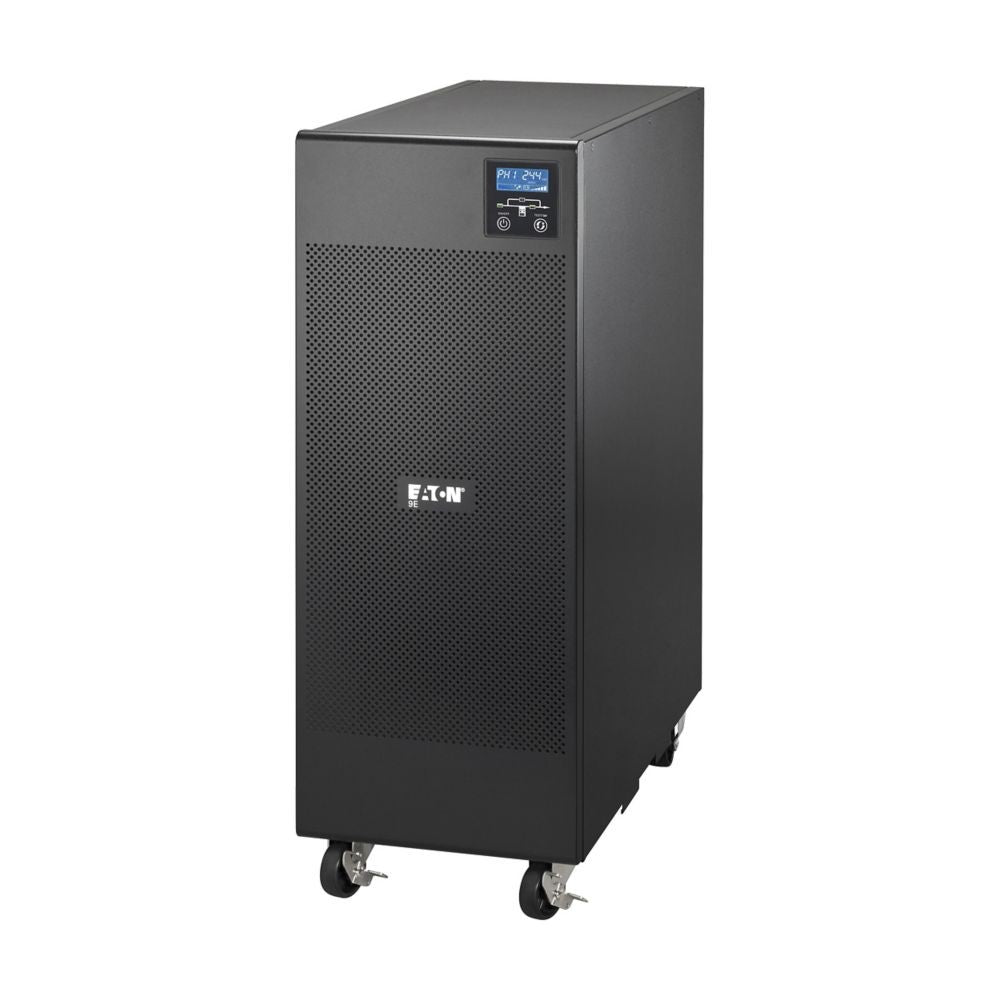

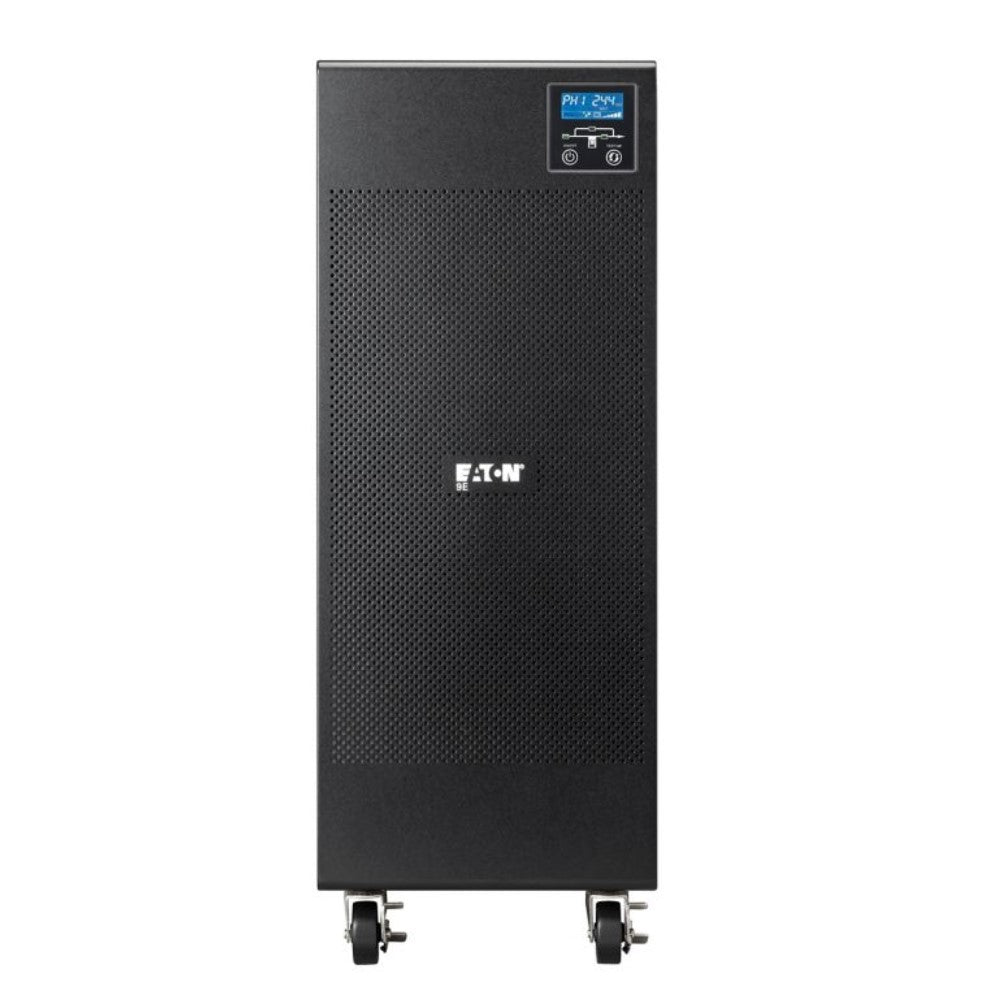

EATON 9E Smart Online UPS, 10000VA, 10kVA, 3/1 : 1 Phase, 230V, Hardwired/fixed Input, USB, RS232 Serial, With Internal Batteries, 9E10KI

• Single/Three phase input and Single phase output
• Tower model with internal batteries
• Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interface
• Easily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (NOT supplied with this product)
• Integrate 9E into all software environments. The Eaton 9E is delivered with Eaton’s Intelligent Power™ Software and is compatible with all major OS including advanced integration in VMware vCenter and Microsoft Hyper-V
• Auto shutdown function

TECHNICAL SPECS

Physical

• Dimensions: 612 x 708 x 263 mm
• Net weight: 85.4 kg
• Mounting support: Floor
• Communication: USB, RS232 Serial, Mini-terminal block for remote power off
• Optional Communication: Smart slot (Not included)

Input

• Nominal frequency: 50/60 Hz
• Input voltage range: 176V-276V
• Input nominal voltage: 400V/230V
• Input phase: 1 or 3
• Input plug: Hardwired/fixed connection

Output

• Maximum configurable power in W: 8000 W/ 8kWA
• UPS type: Online
• Output voltage range: 220V-240V
• Output phase: 1
• Maximum configurable power in VA: 10000 VA/ 10kVA
• Output sockets: Hardwired/ fixed connection

Environmental

• Ambient air temperature for operation: 0…40 °C
• Operating altitude: 0...3000 m

Batteries & Runtime

• Battery voltage: 12 V
• Battery capacity: 9.0 Ah x 20pcs
• Management: Automatic battery test, deep-discharge protection
• Approx. Runtime: Not available
