- Sku: apc-e3sups15kh
- Type: UPS Power Backup

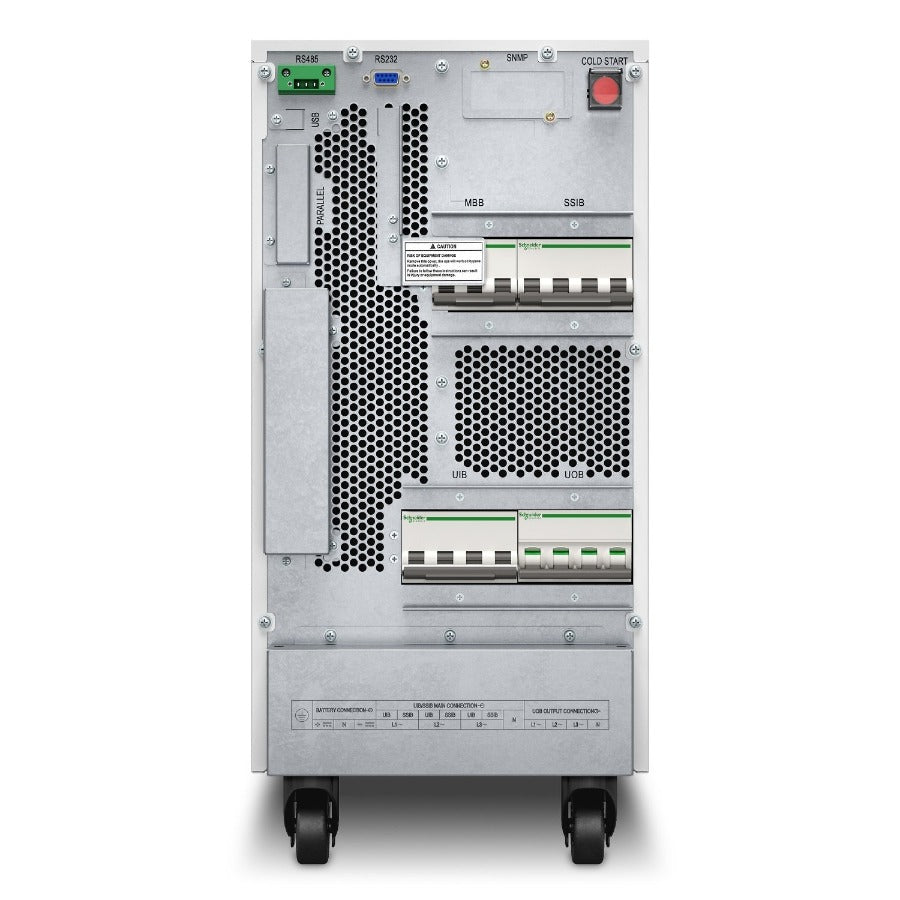

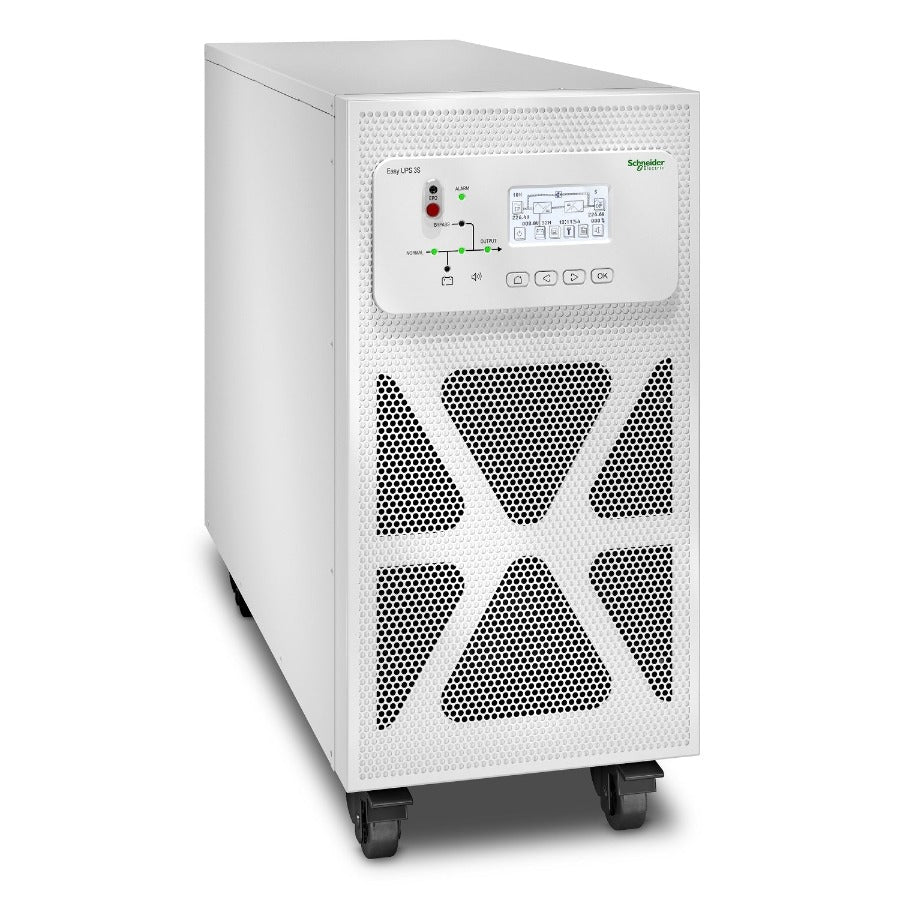

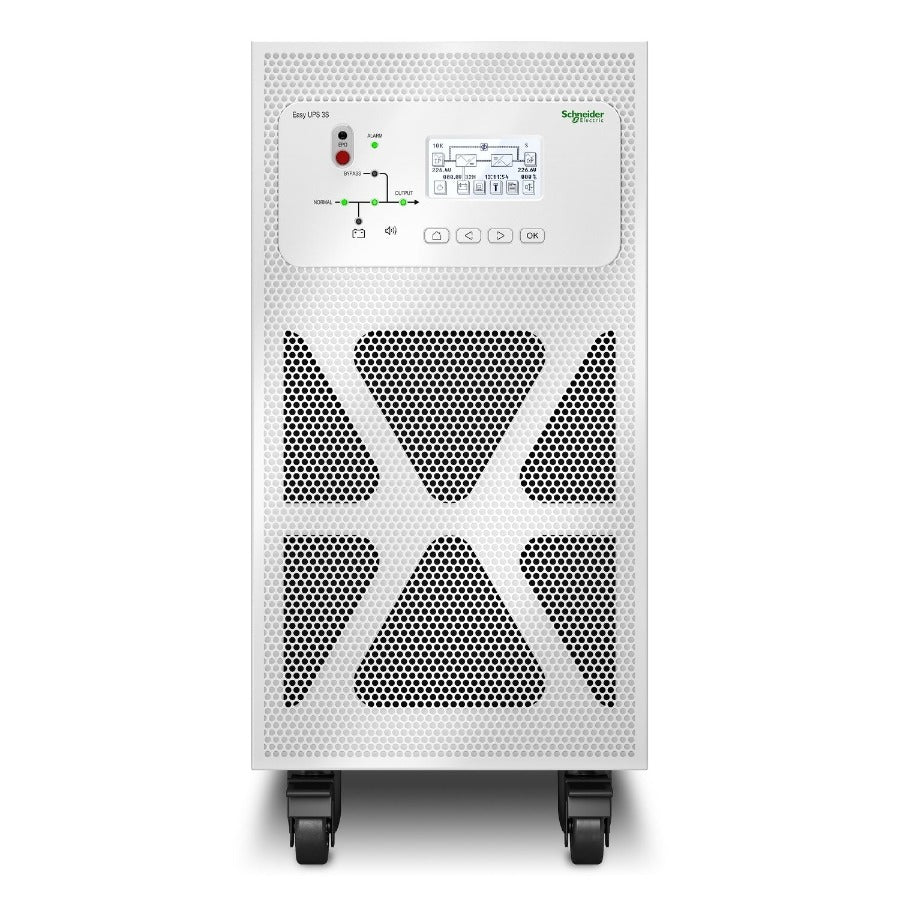

APC Easy UPS 3S 15kVA 15000va 400 V 3:3 UPS For External Batteries (NOT INCLUDED) E3SUPS15KH
17,260,000.00 TZS
Tax included.
Shipping calculated at checkout.
SHIPPING/ PICK-UP DETAILS FOR THIS PRODUCT
Estimated Shipping Widget will be displayed here!
PRODUCT DESCRIPTION
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.
- View advert: Click here to see the product video
- Includes: Dust filter, Installation guide
- Not included: Any input/output cables and or wires NOT INCLUDED
Easy UPS 3S Features & Benefits
Protection
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites.
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Replaceable dust filters
protect the UPS in harsh environments.
Convenience
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
TECH SPECS
Output
- Max Configurable Power (Watts): 15.0kWatts / 15.0kVA
- Output Voltage Distortion: Less than 3 %
- Output Frequency (sync to mains): 50 Hz Sync to mains, 60 Hz Sync to mains
- Other Output Voltages: 380 V, 415 V
- Load Crest Factor: 3 : 1
- Topology: Double conversion online
- Overload Operation: 10 minutes at 125% and 60 seconds at 150%
- Output Voltage THD: < 3% linear load
- Bypass: Built-in maintenance bypass
Input
- Input frequency: 45 - 65 Hz
- Input voltage range for main operations: 304 - 477V
- Other Input Voltages: 380 V, 415 V
- Input Power Factor at Full Load: 0.99
Batteries & Runtime
- Battery type: External battery system
- Maximum Available Short Circuit Current: 10kAmps
- Efficiency: View Efficiency Graph
Communications & Management
- Interface Port(s): E3S_Parallel, E3S_TempSensor
Physical
- Height: 530MM, 53.0CM
- Width: 250MM, 25.0CM
- Depth: 700MM, 70.0CM
- Net Weight: 36.0KG
- Shipping weight: 50.0KG
Environmental
- Operating Temperature: 0 - 40 °C
- Operating Relative Humidity: 0 - 95 (Non-condensing) %
- Operating Elevation: 0 - 1000.05meters
- Storage Temperature: -15 - 40 °C
- Storage Relative Humidity: 0 - 95 (Non-condensing) %
- Storage Elevation: 0 - 14999.8meters
- Audible noise at 1 meter from surface of unit: 60.0dBA
- Online thermal dissipation: 852.0BTU/hr
- Protection Class: IP20
Conformance
- Approvals: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM
Selling terms
- Configuration/Overlooking has to be done by APC technicians (For Dar es salaam only): This UPS requires APC technical configuration when purchased, for warranty to be active. Please note that the buyer has to install the UPS themselves, with an APC technician overlooking the installation. (wirings and accessories not supplied with UPS)
- Standard warranty for Dar es salaam: 1 year on-site repair or replace with factory authorized Start-Up (WARRANTY VALID ONLY IF CONFIGURED/OVERLOOKED) BY APC SERVICE CENTRE AUTHORIZED TECHNICIANS)
- Standard warranty for Tanzania Up-country: 1 year on-site repair or replace with factory authorized Start-Up (WARRANTY VALID ONLY IF CONFIGURED/ OVERLOOKED) BY APC SERVICE CENTRE AUTHORIZED TECHNICIANS. Additional charges for transport/ lodging etc will be incurred by the buyer if machine is for up-country in Tanzania (Charges depends on location)
- Booking of Configuration: Once you purchase it, we will give a time and date when the APC team will be able to come for configuration
- Setup with additional charges(For Up-country Tanzania): Our APC technicians will provide configuration at your site in locations across Tanzania with an additional charge which depends on the location, provided that the buyer installs the UPS themselves and has all wirings and accessories ready (UPS is not supplied with any wires or accessories and have to be purchased separately by the buyer)
