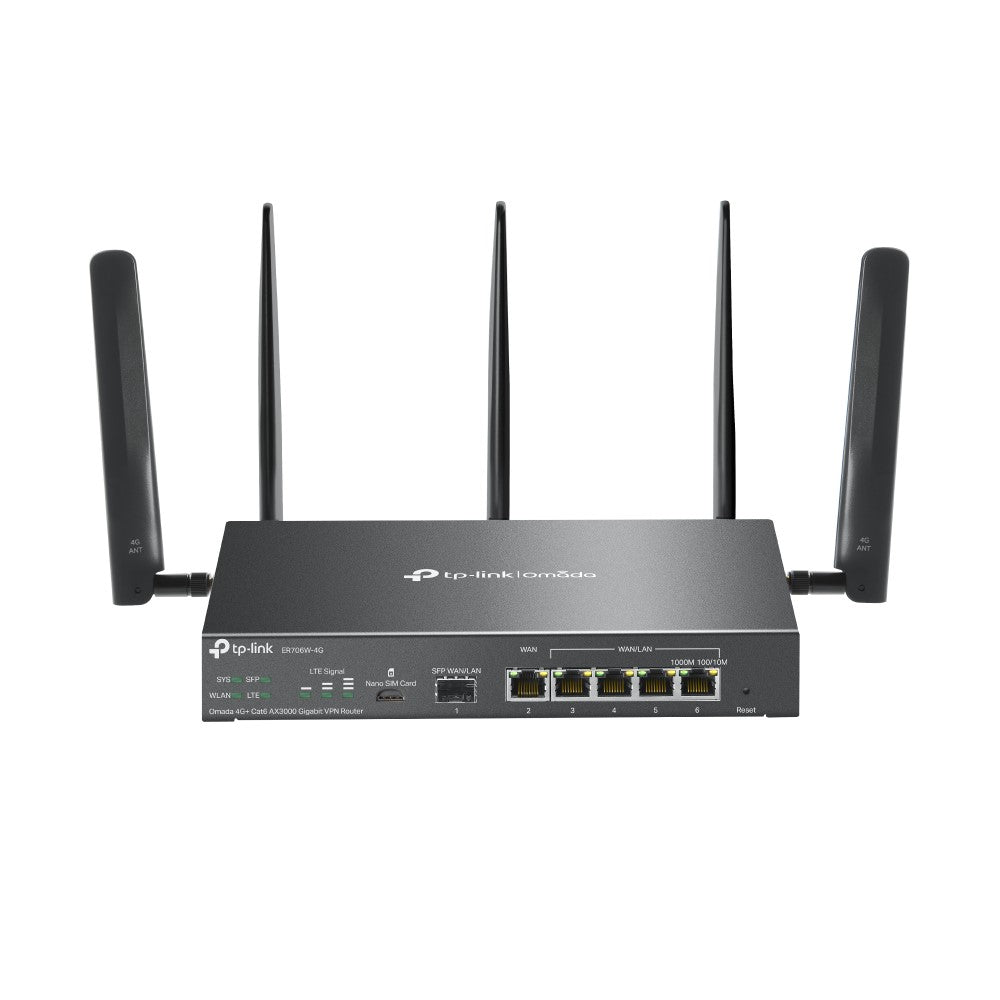

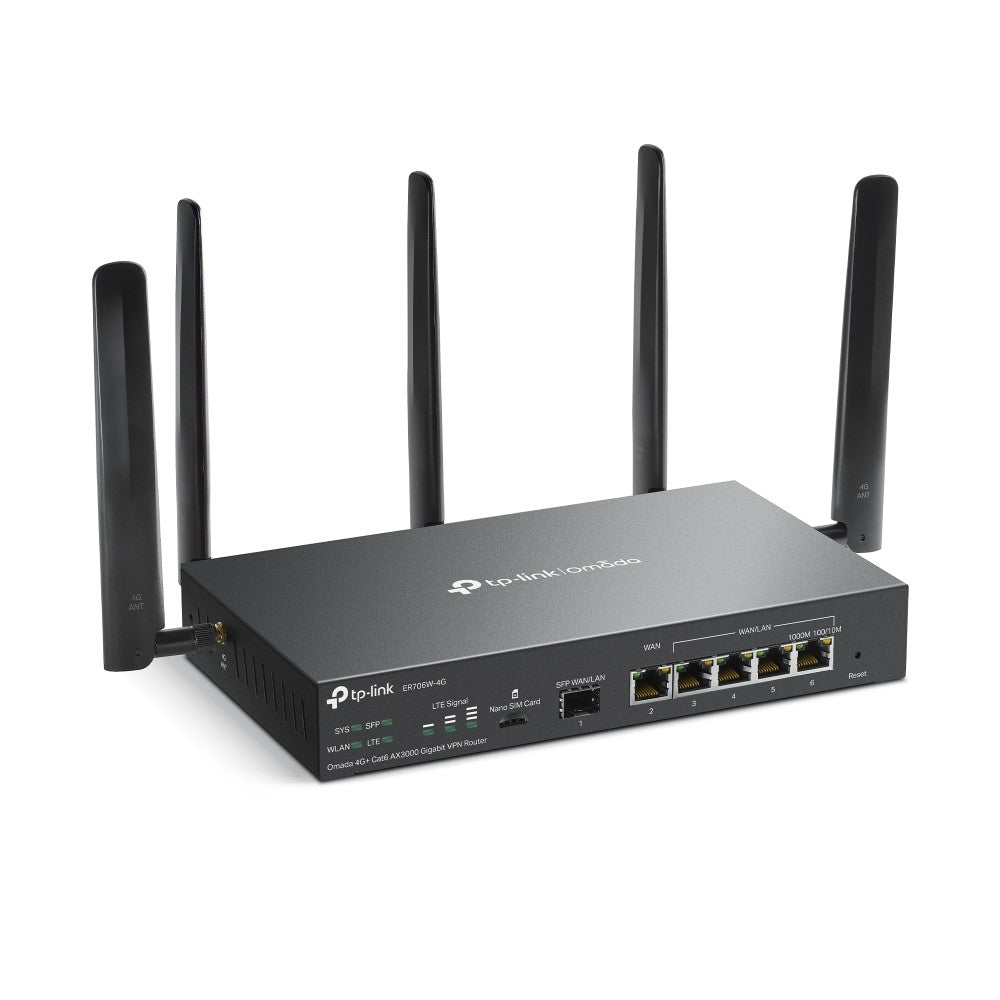

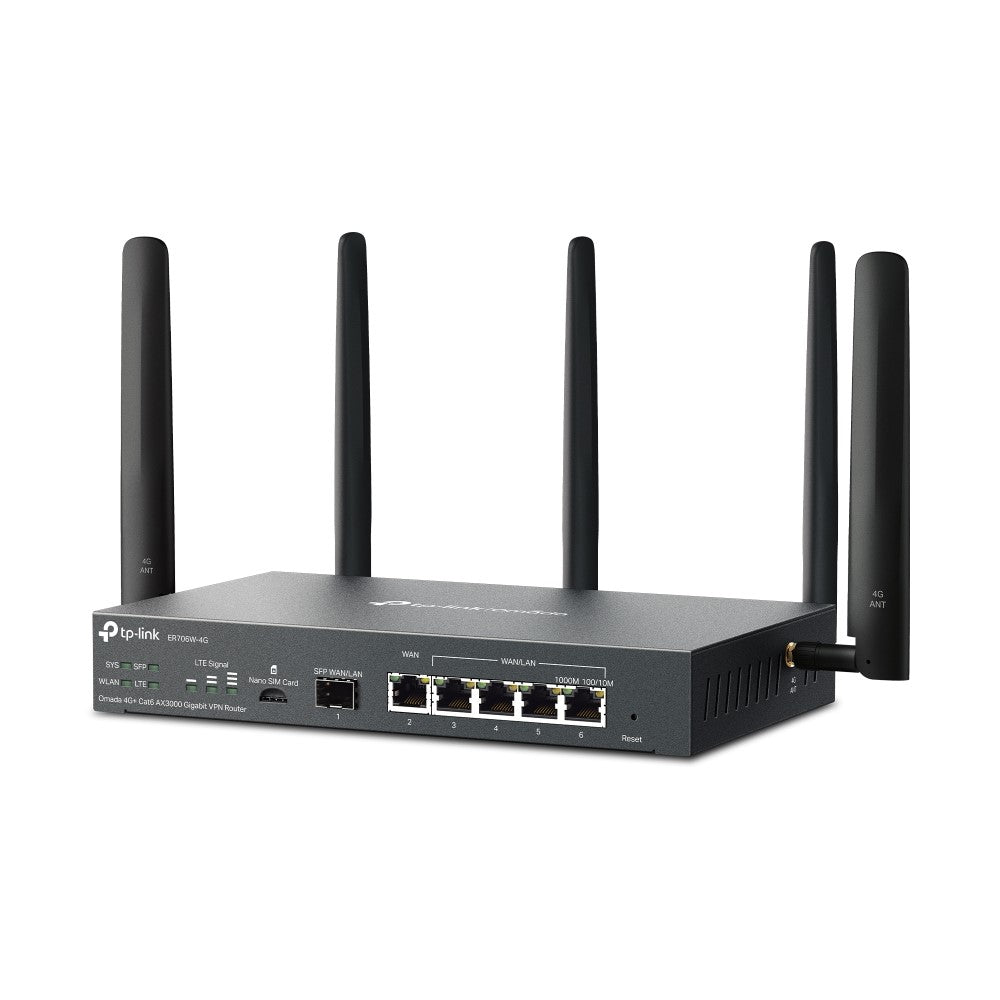

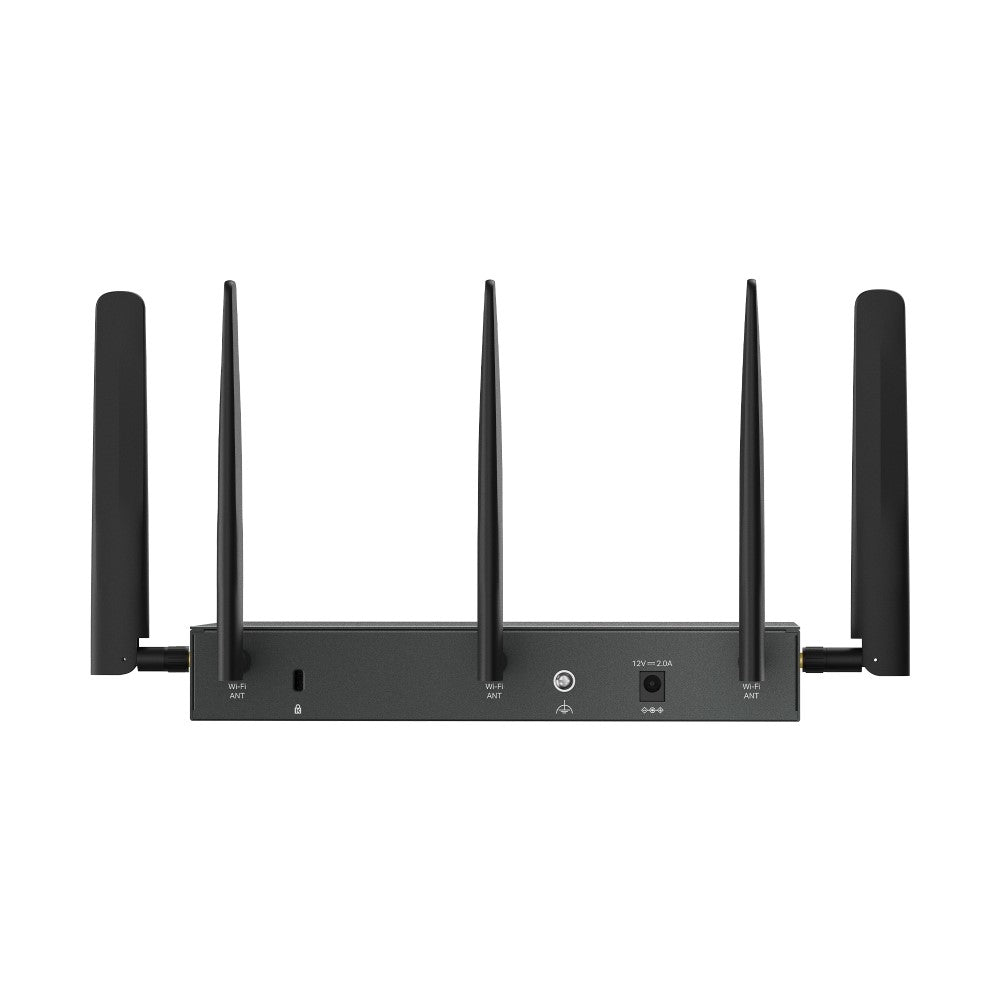

TP-LINK Omada 4G+ Cat6 AX3000 Gigabit VPN Router, ER706W-4G

QUICK FEATURES

• Support 4G+ Cat6: Insert a Nano SIM card to enjoy up to 300 Mbps
• AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
• 6 Gigabit Ethernet Ports: Provide high-speed wired connectivity
• 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals
• Centralized Management: Cloud access and the Omada app for easy management
• Omada Mesh: Seamlessly connects to EAPs that support mesh technology
• High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN

SPECS

4G

• Network Type: 4G LTE-FDD, 4G LTE-TDD, 3G
• SIM Type: 1× Nano SIM Card
• Frequency: Downlink 300 Mbps, Uplink 50 Mbps

SECURITY

• Access Control: Source/Destination IP Based Access Control
• Filtering: WEB Group Filtering, URL Filtering, Web Security
• ARP Inspection: Sending GARP Packets, ARP Scanning, IP-MAC Binding
• Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN

HARDWARE FEATURES

• Interface: 1 Gigabit SFP WAN/LAN Port, 1 Gigabit WAN Port, 4 Gigabit LAN/WAN Ports
• Network Media: 10BASE-T (UTP category 3, 4, 5 cable, Max 100 m), 100BASE-TX (UTP category 5, 5e cable, Max 100 m), 1000BASE-T (UTP category 5, 5e, 6 cable, Max 100 m)
• Button: Reset Button
• Power Supply: 12VDC / 2A Power Adapter
• Wi-Fi Frequency & Signal Rate: 2.4 GHz: 574 Mbps, 5 GHz: 2402 Mbps (HE160)
• Flash: 128 MB NAND
• DRAM: 512 MB DDR4
• LED: SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
• Dimensions ( W x D x H ): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
• Antenna Wi-Fi: Three 5GHz 5.5dBi and 2.4GHz 4.5dBi dual-band detachable antennas
• Antenna LTE: Two 4.0dBi omnidirectional detachable antennas
• Mounting: Desktop/Wall-Mounting
• Max Power Consumption: 17.3W


PERFORMANCE

• GRE: Unencrypted - 545.3Mbps, Encrypted - 282.6Mbps
• WireGuard VPN: 387.7Mbps
• Concurrent Session: 150,000
• New Sessions /Second: 5,100
• NAT (Static IP): 947.1Mbps / 940.1Mbps
• NAT(DHCP): 949.2Mbps / 941.1Mbps
• NAT(PPPoE): 942.6Mbps / 941.1Mbps
• NAT (L2TP): 875.4Mbps / 892.0Mbps
• NAT (PPTP): 881.2Mbps / 895.8Mbps
• OpenVPN: 115.5Mbps
• L2TP VPN Throughput: Unencrypted - 990.0Mbps, Encrypted - 475.0Mbps
• PPTP VPN Throughput: Unencrypted - 1177.9Mbps, Encrypted - 177.4Mbps
• SSL VPN Throughput: 122.5Mbps

WIRELESS FEATURES

• Advanced Functions: Seamless Roaming, Mesh (with EAP that supports Mesh), OFDMA, Beamforming, MU-MIMO, Rate Limit (Based on SSID/Client), Airtime Fairness, Wireless Encryption (WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise), Multiple SSIDs: 16 in total (8 per radio)
• Guest Network Support: Yes


BASIC FUNCTIONS

• WAN Connection Type: Static IP, Dynamic IP, PPPoE (supports MRU Configuration), PPTP, L2TP
• MAC Clone: Modify WAN Address
• DHCP: DHCP Server, DHCPv6 PD Server (only in Standalone Mode), DHCP Options Customization, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP
• IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
• VLAN: 802.1Q VLAN
• IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode


ADVANCED FUNCTIONS

• ACL: IP/Port/Protocol/Domain Name Filtering
• Advanced Routing: Static Routing, Policy Routing, RIP†, OSPF†
• Bandwidth Control: IP-Based Bandwidth Control
• Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup(Timing, Failover), Online Detection
• NAT: One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering†, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
• Session Limit: IP-Based Session Limit


VPN

• GRE: Only in Standalone Mode
• SSL VPN: 50 Tunnels
• IPsec VPN: 100 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive Negotiation Mode, DES, 3DES, AES128, AES192, AES256 Encryption Algorithm, IPsec Failover, IKE v1/v2, MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS)
• PPTP VPN: PPTP VPN Server, PPTP VPN Client (10), 50 Tunnels, PPTP with MPPE Encryption
• L2TP VPN: L2TP VPN Server, L2TP VPN Client (10), 50 Tunnels, L2TP over IPSec
• OpenVPN: OpenVPN Server, OpenVPN Client (5), 55 OpenVPN Tunnels, Certificate +, Account Mode, Full Mode


AUTHENTICATION

• Web Authentication: No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Sever, External Portal Sever, LDAP


MANAGEMENT

• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
• Cloud Access: Yes
• Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
• Maintenance: Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Port Mirroring, CLI (only in Standalone Mode), Syslog Support
  Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller
• Management Features: Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration


OTHERS

• Certification: CE, FCC, RoHS
• Package Contents: ER706W-4G, Power Adapter, Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Operating Humidity: 10% to 90% non-condensing
