TP-LINK Omada 3-in-1 Gigabit VPN Gateway, 8 PoE+ Ports, 4 WAN Ethernet Ports, ER7212PC

Simplify Networking Begins with the 3-in-1 Integrated Gateway

The ER7212PC is a VPN Gateway that integrates 8× PoE+ ports and centralized management capability. Connect to Omada access points and PoE-supported devices with ease.

Easy Centralized Management

Support centralized management for up to 10 Omada access points and 2 Omada switches.

Specs

SECURITY

• Access Control: Source/Destination IP Based Access Control
• Filtering: URL Filtering
• Attack Defense: TCP/ UDP/ ICMP Flood Defense, Block TCP Scan (Stealth FIN/ Xmas/ Null), Block Ping from WAN

HARDWARE FEATURES

• Standards and Protocols: IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/ IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

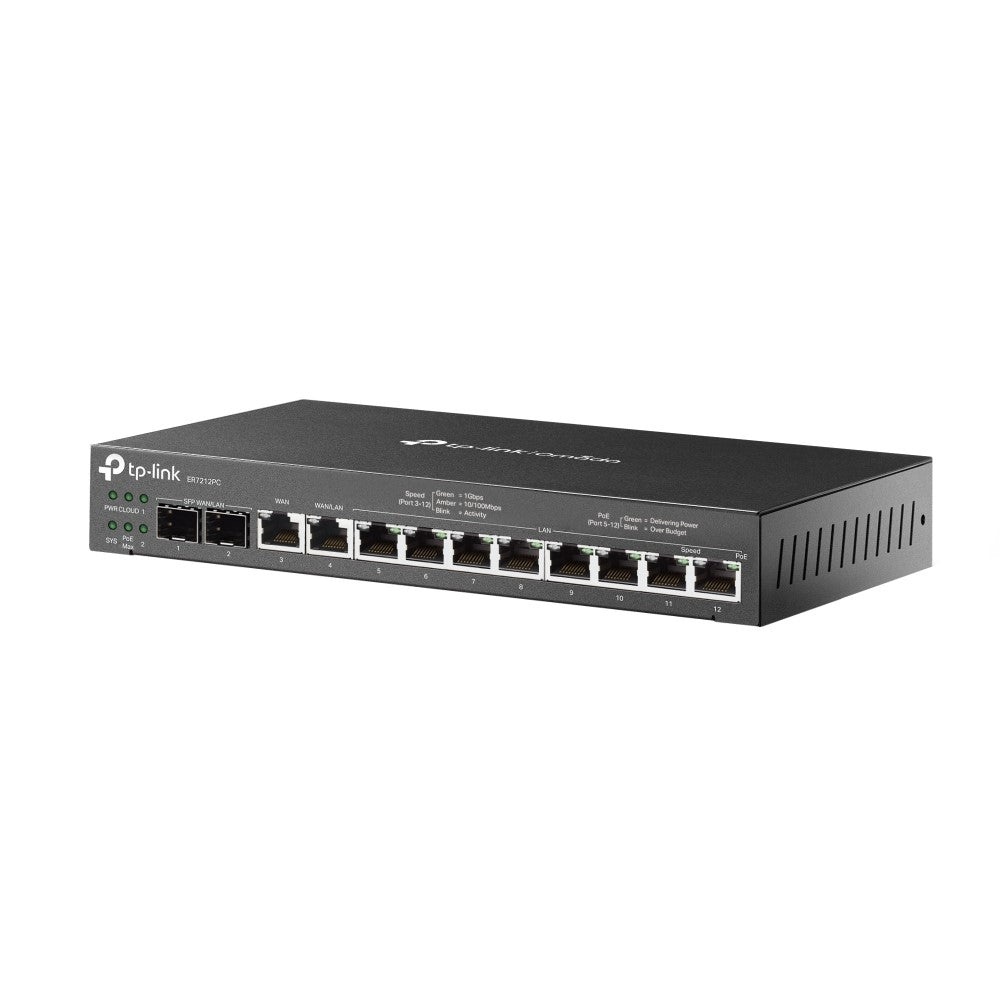

• Interface: 2 Gigabit SFP WAN/LAN ports, 1 Gigabit WAN port, 1 Gigabit LAN/WAN port, 8 Gigabit LAN ports
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), 1000Base-T: UTP category 5, 5e, 6 cable (maximum 100m)
• Fan Quantity: Fanless

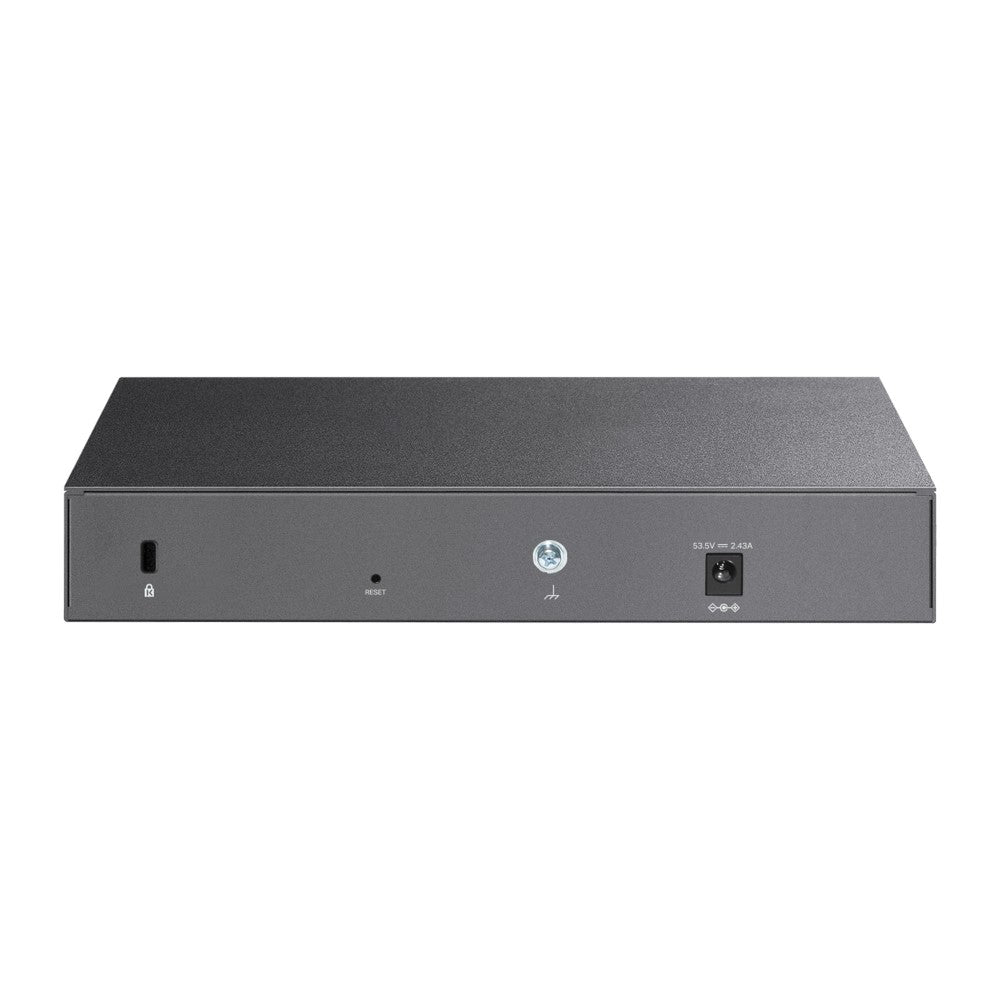

• Button: Reset
• Power Supply: Power Adapter 53VDC/ 2.43A
• PoE Budget: 8 ports PoE+ output, 110 W PoE Budget
• Flash: 8Mb Nor + 4 GB EMMC
• DRAM: 1 GB DDR3

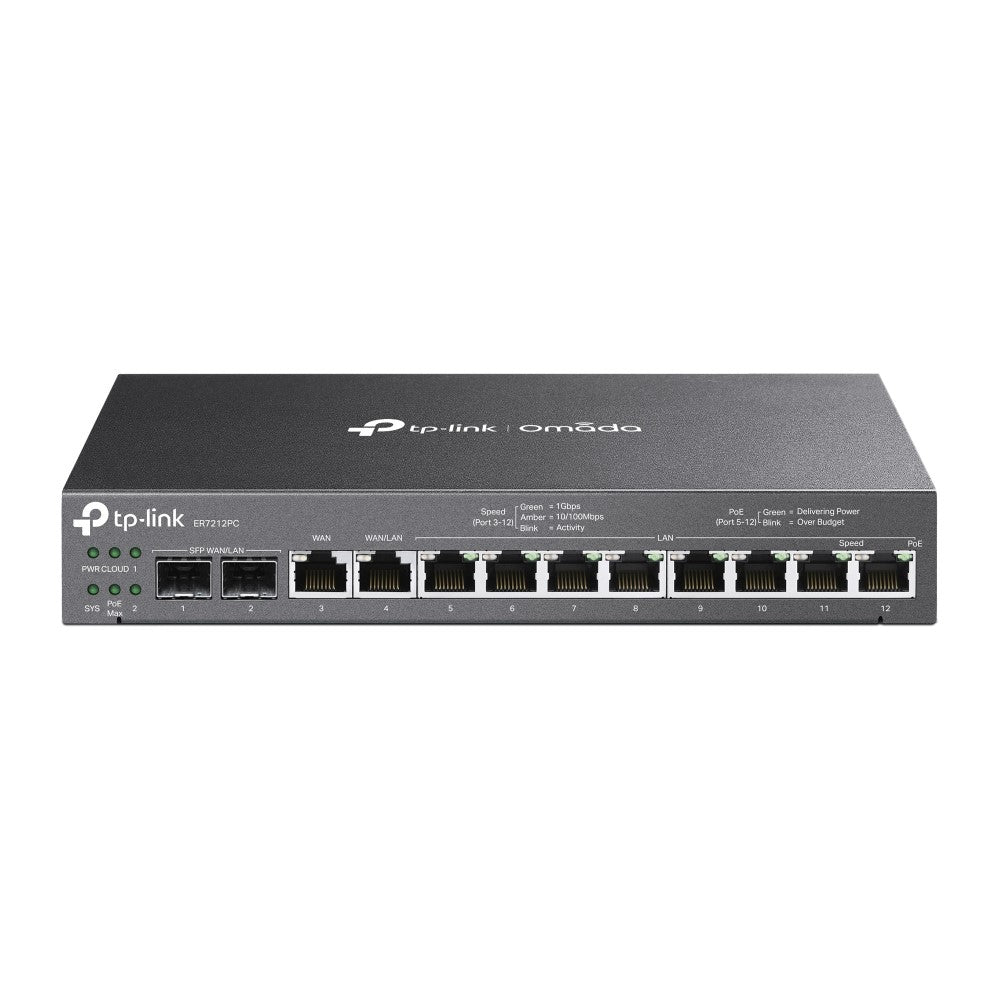

• LED: PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
• Dimensions ( W x D x H ): 226 × 131 × 35 mm
• Protection: 4 kV surge protection

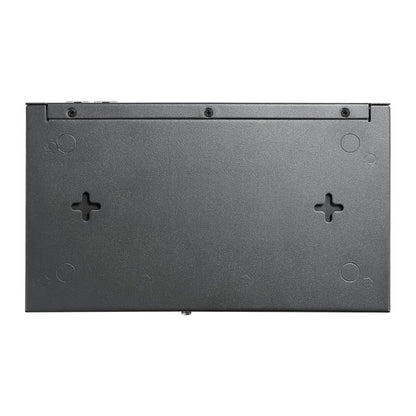

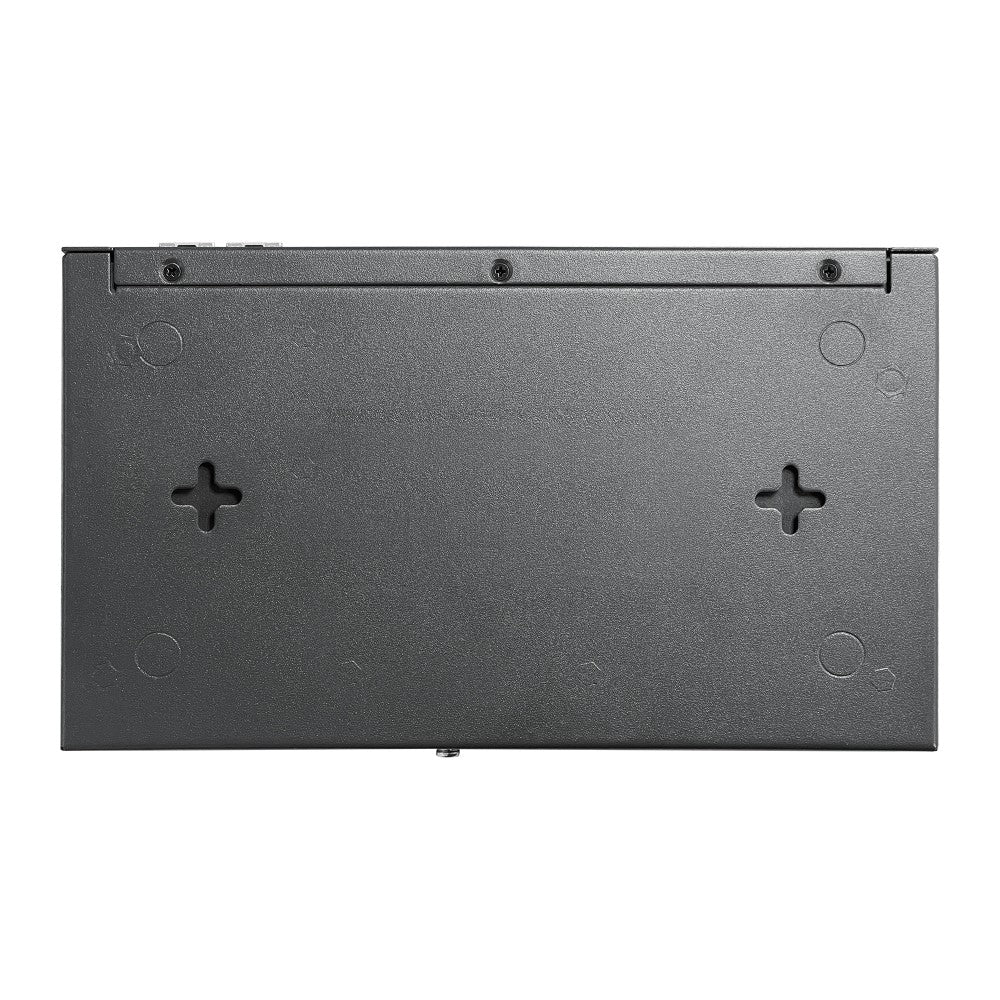

• Mounting: Desktop/Wall-mount
• Max. Power Consumption: 133.2W with PoE Max, 13.88W without PoE

PERFORMANCE

• Concurrent Session: 24,980
• New Sessions /Second: 1,900
• NAT (Static IP): 935.5 Mbps / 942.1 Mbps
• NAT(DHCP): 940.2 Mbps / 941.7 Mbps
• NAT(PPPoE): 913.1 Mbps / 935.2 Mbps
• NAT (L2TP): 545.0 Mbps / 912.7 Mbps
• NAT (PPTP): 523.0 Mbps / 912.8 Mbps
• IPsec VPN Throughput (AES256): 168.5 Mbps
• OpenVPN: 34 Mbps
• L2TP VPN Throughput: Unencrypted: 845.3 Mbps, Encrypted: 333.2 Mbps
• PPTP VPN Throughput: Unencrypted: 1012.6 Mbps, Encrypted: 401.4 Mbps
• 66 Byte Packet Forwarding Rate: 154,069 pps / 156,977 pps
• 1,518 Byte Packet Forwarding Rate: 81,193 pps / 81,193 pps

BASIC FUNCTIONS

• WAN Connection Type: Static IP, Dynamic IP, PPPoE, PPTP, L2TP
• MAC Clone: Modify WAN MAC Address
• DHCP: DHCP Server, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP

• VLAN: 802.1Q VLAN
• IPTV: IGMP v2/v3 Proxy

ADVANCED FEATURES

• Access Control: IP/Port/Protocol/Domain Name Filtering
• Advanced Routing: Static Routing, Policy Routing
• Bandwidth Control: IP/Port-based Bandwidth Control
• Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup, Online Detection
• NAT: Multi-Net NAT, Virtual Server, NAT-DMZ, FTP/ H.323/ SIP/ IPSec/ PPTP ALG, UPnP
• Session Limit: IP-based Session Limit

VPN

• IPsec VPN: 20 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive, Negotiation Mode, AES128, AES192, AES256 Encryption Algorithm, IKE v1/ v2, SHA1, SHA2 Authentication Algorithm, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS)
• PPTP VPN: PPTP VPN Server, PPTP VPN Client (10), 16 Tunnels, PPTP with MPPE Encryption
• L2TP VPN: L2TP VPN Server, L2TP VPN Client (10), 16 Tunnels, L2TP over IPSec
• OpenVPN: OpenVPN Server, OpenVPN Client (10), 16 OpenVPN Tunnels

AUTHENTICATION

• Web Authentication: No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Server, External Portal Server

MANAGEMENT

• Omada App: Yes
• Centralized Management: Management of up to 2 Omada switches, and 10 Omada access points
• Cloud Access: Yes
• Service: Dynamic DNS (Dyndns, No-IP)
• Maintenance: Web Management Interface, Remote Management, Export and Import Configuration, SNMP v1/v2c/v3, Syslog Support
• Zero-Touch Provisioning: Yes, Requiring the use of Omada Cloud-Based Controller
• Management Features: Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration, Management of up to 2 Omada switches and 10 Omada access points

OTHERS

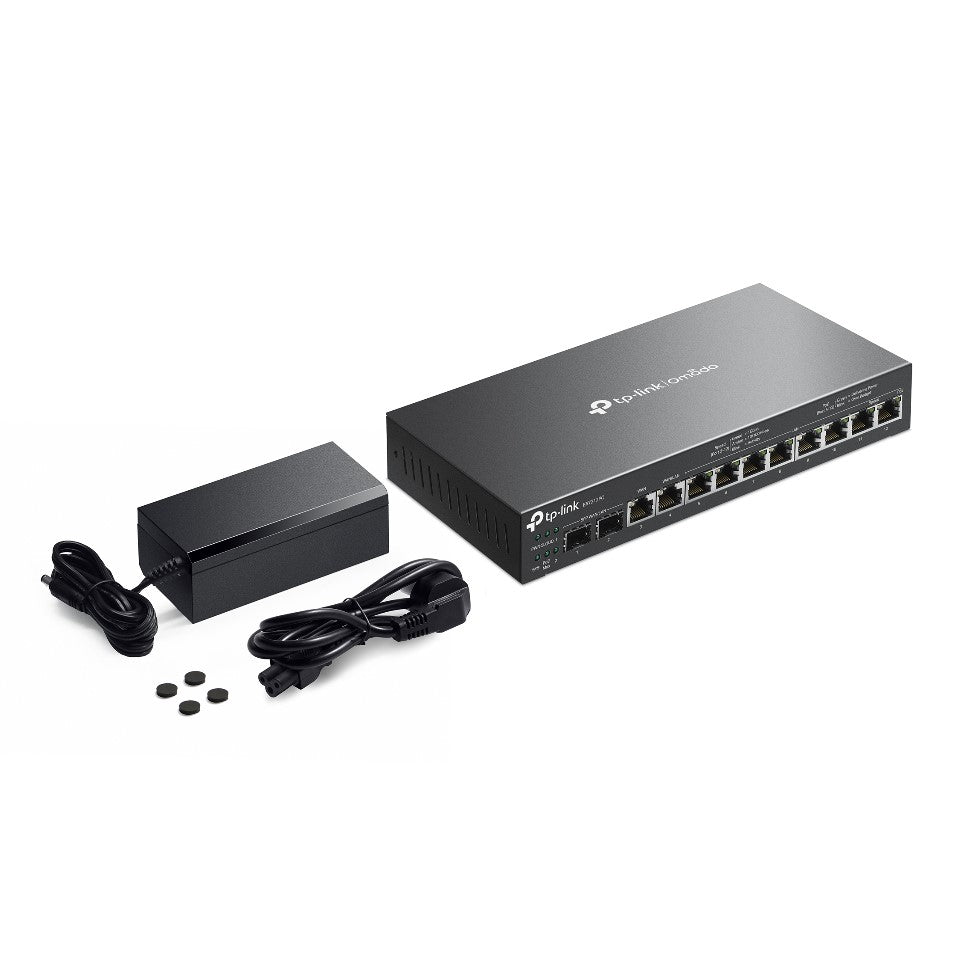

• Package Contents: ER-7212PC, Power Cord, Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows (7/ 8/ 8.1/ 10), MAC OS, NetWare, UNIX or Linux
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Operating Humidity: 10%~90% non-condensing
