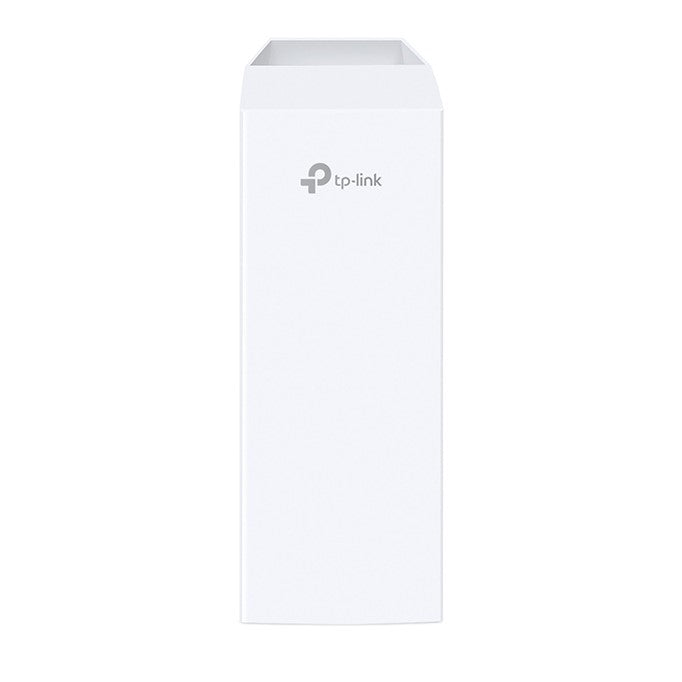

TP-LINK CPE210, 2.4GHz, 300Mbps, 9dBi Outdoor CPE

TP-Link’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.  Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

Enterprise Hardware

With Qualcomm Atheros level chipsets, high gain antennas and high
quality material, specially designed enclosure, and PoE power supply, CPE210 is
specially designed for outdoor use and can operate flawlessly in almost any climate,
with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).

5km+ Wireless Data Transmission

Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

TP-Link MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System

CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

• Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
• Adjustable transmission power from 0 to 25dBm/500mw
• System-level optimizations for more than 5km long-range wireless transmission
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
• Centralized Management System – Pharos Control
• AP / Client / AP Router / AP Client Router (WISP) operation modes
• Passive PoE Adapter supports up to 60 meters (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

SPECS

HARDWARE FEATURES

• Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc
• Memory: 64MB DDR2 RAM, 8MB Flash
• Interface: 1 10/100Mbps Shielded Ethernet Port (LAN/ Passive POE), 1 Reset Button, 1 grounding terminal
• Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
• Voltage range: 16-27VDC
• Power Consumption: 5 W (Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable)
• Dimensions ( W x D x H ): 224 x 79 x 60 mm
• Antenna Gain: 9dBi, 2 x 2 dual-polarized directional antenna
• Antenna Beam-width: 65°(Azimuth), 40°(Elevation)
• Protection: 15KV ESD Protection, 6KV Lightning Protection
• Enclosure Material: Outdoor ASA stabilized plastic
• Weatherproof: IPX5 water proof design

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11 b/g/n
• Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
• Wireless Speeds: Up to 300Mbps (40MHz,Dynamic), Up to 144.4Mbps (20MHz,Dynamic), Up to 72.2Mbps (10MHz,Dynamic), Up to 36.1Mbps (5MHz,Dynamic)
• Frequency: 2.4GHz
• Transmit Power: Max. 25dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES

• Wireless Configurations: Pharos MAXtream TDMA Technology, 802.11b/g/n Modes, Selectable Channel Width: 5/10/20/40MHz, Automatic Channel Selection, Transmission Power Control, Dynamic Frequency Selection (DFS), WDS Enable/Disable, Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption, SSID Broadcast Enable/Disable, Multi-SSID with, VLAN Tagging (AP mode only), Distance/ACK Timeout Setting, Wireless MAC Address Filter
• Management: Discovery and Remote Management via Pharos Control application, HTTP/HTTPS Web-based management, System log, SNMP Agent(v2c), Ping Watch Dog, Dynamic DDNS, SSH Server
• System Tools: Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory, Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP, Spectrum Analyzer, Speed Test, Ping, Traceroute
• System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications, Hardware watch dog

POE ADAPTER FEATURES

• Dimensions(W x D x H): 85.8 x 43.9 x 29.7 mm
• Interfaces: 1 AC Jack with Earth Ground, 1 10/100Mbps Shielded Ethernet Port (Power + Data), 1 10/100Mbps Shielded Ethernet Port (Data)
• Button: Remote Reset Button
• Power Status LED: Green
• Input: 100-240VAC, 50/60Hz
• Output: 24VDC, 0.6A Max: +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

OTHERS

• Package Contents: Outdoor Wireless CPE, 24V 0.6A Passive PoE Adapter, Pole Mounting Straps, AC Power Cord, Installation Guide
• Operating Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
