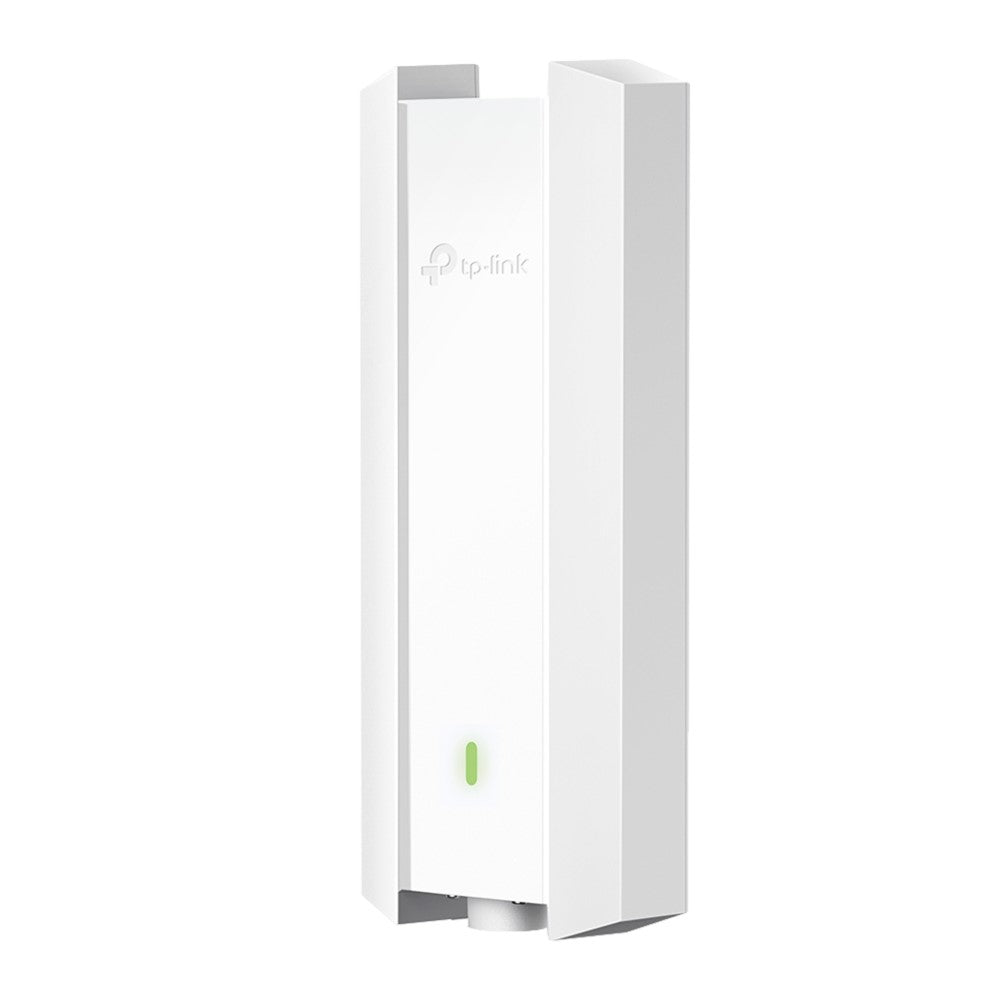

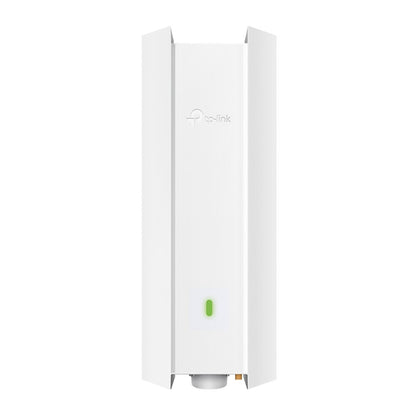

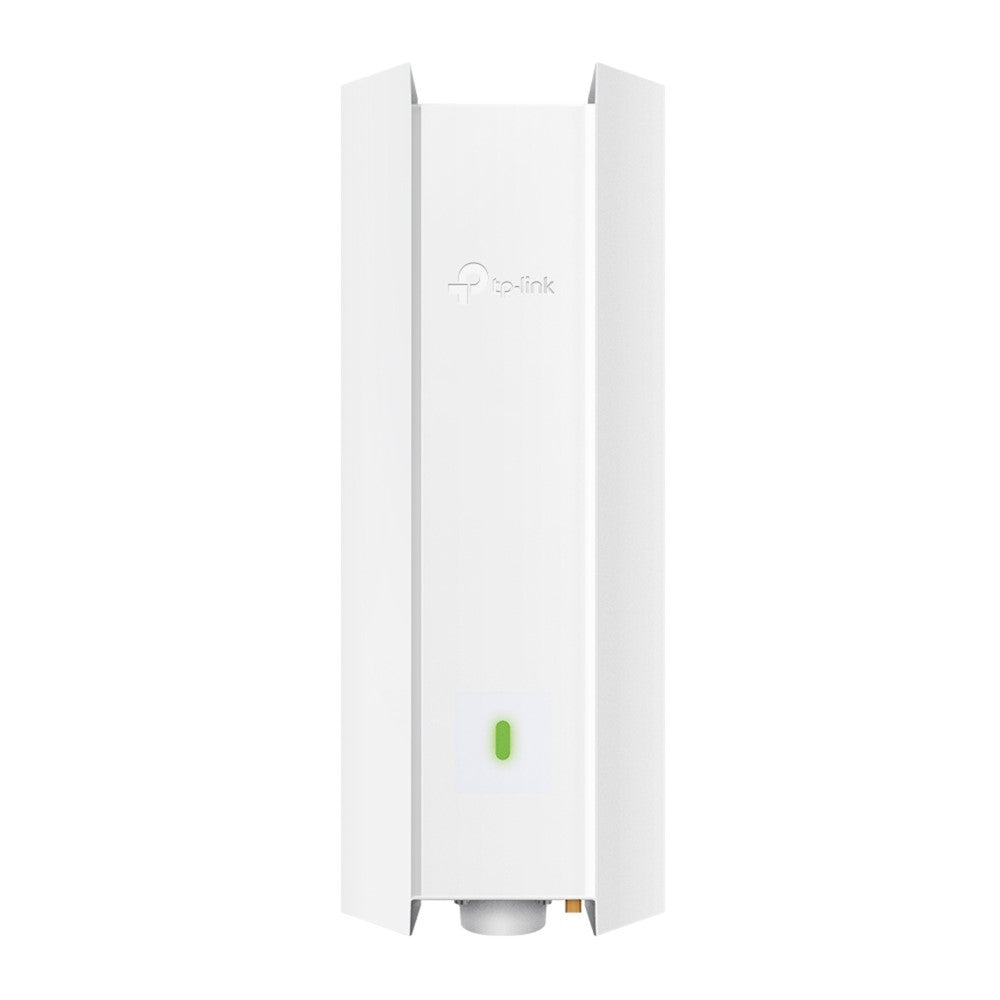

TP-LINK AX3000 Outdoor Wireless Dual Band, Wi-fi 6 Access Point, EAP650-Outdoor

• Superior WiFi 6 Speeds: Delivers dual-band speeds of up to 3.0 Gbps powered by the latest WiFi 6 technology
• Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
• 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160
• Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP68 weatherproof enclosure
• Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment
• Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
• Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management
• PoE Powered: Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation

Dual-Band WiFi 6 Connectivity

Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 3.0 Gbps, providing higher data rates on both 5 GHz and 2.4 GHz bands for demanding multi-user scenarios, such as outdoor swimming pools, cafés, and amusement parks

Experience the Peak of WiFi 6 with Smart Antennas

TP-Link Smart Antenna technology brings lower interference, longer coverage, and higher performance. EAP650-Outdoor is equipped with horizontally polarized antennas and vertically polarized antennas, while its intelligent algorithms automatically select the optimal antennas to ensure the peak WiFi experience ideal for outdoor applications

Long-Range Coverage

Professional antennas equipped with high-power amplifiers utilize WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments. The maximum range reaches up to 200 meters over 2.4 GHz band and 300 meters over 5 GHz band

Connect Numerous Devices

OFDMA and MU-MIMO greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas

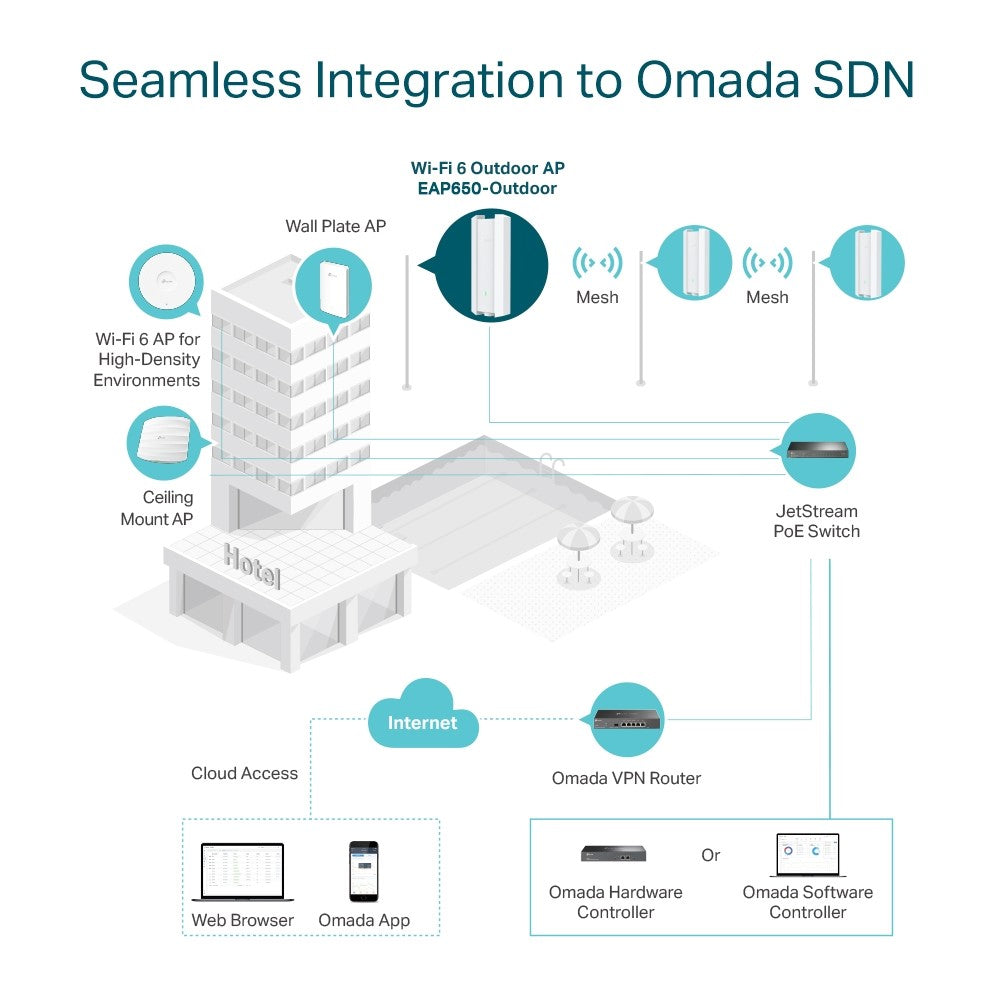

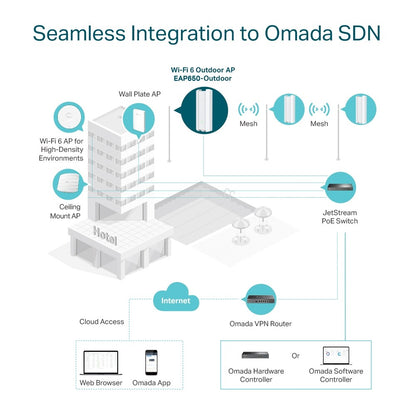

Seamless Integration into Omada SDN Platform

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface

Always Stay Smooth with Fast Roaming

Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal

IP68 Weatherproof Enclosure for Outdoor Environments

EAP650-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments

Multiple PoE Options for Easy Installation

The AP supports both 802.3at PoE+ and Passive PoE power supply. It can be either powered by a PoE switch or the provided PoE adapter for convenient deployment

Easy Management with the Omada App

Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet

SPECS

HARDWARE FEATURES

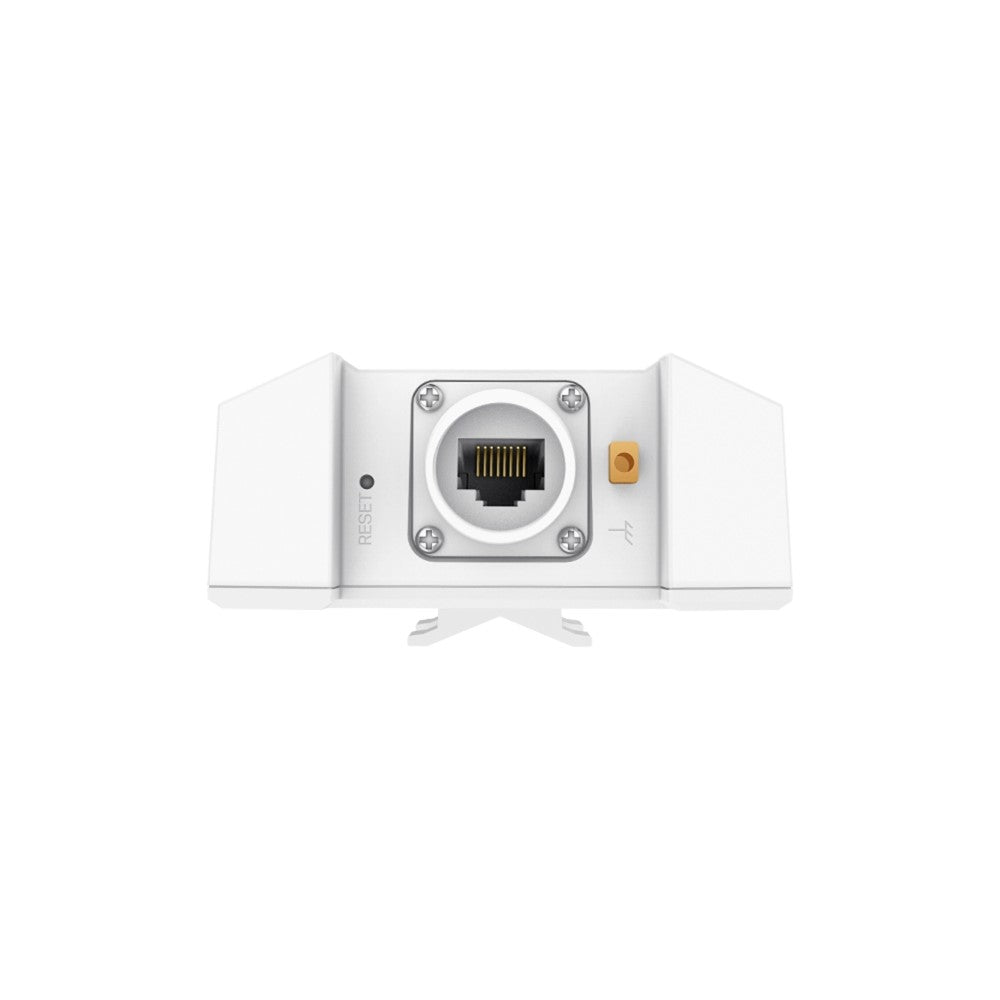

• Interface: 1× Gigabit Ethernet (RJ-45) Port (supports 802.3at PoE and passive PoE)
• Button: Reset
• Power Supply: 802.3at PoE, 48V/0.5A Passive PoE (PoE Adapter Included - For Dry Indoor Use Only)
• Power Consumption: 12.5W (802.3at PoE or Passive PoE)
• Dimensions ( W x D x H ): 280.4×106.5×56.8 mm
• Antenna Type: 2.4 GHz: 2× 4 dBi, 5 GHz: 2× 5 dBi
• Weatherproof Enclosure: IP68

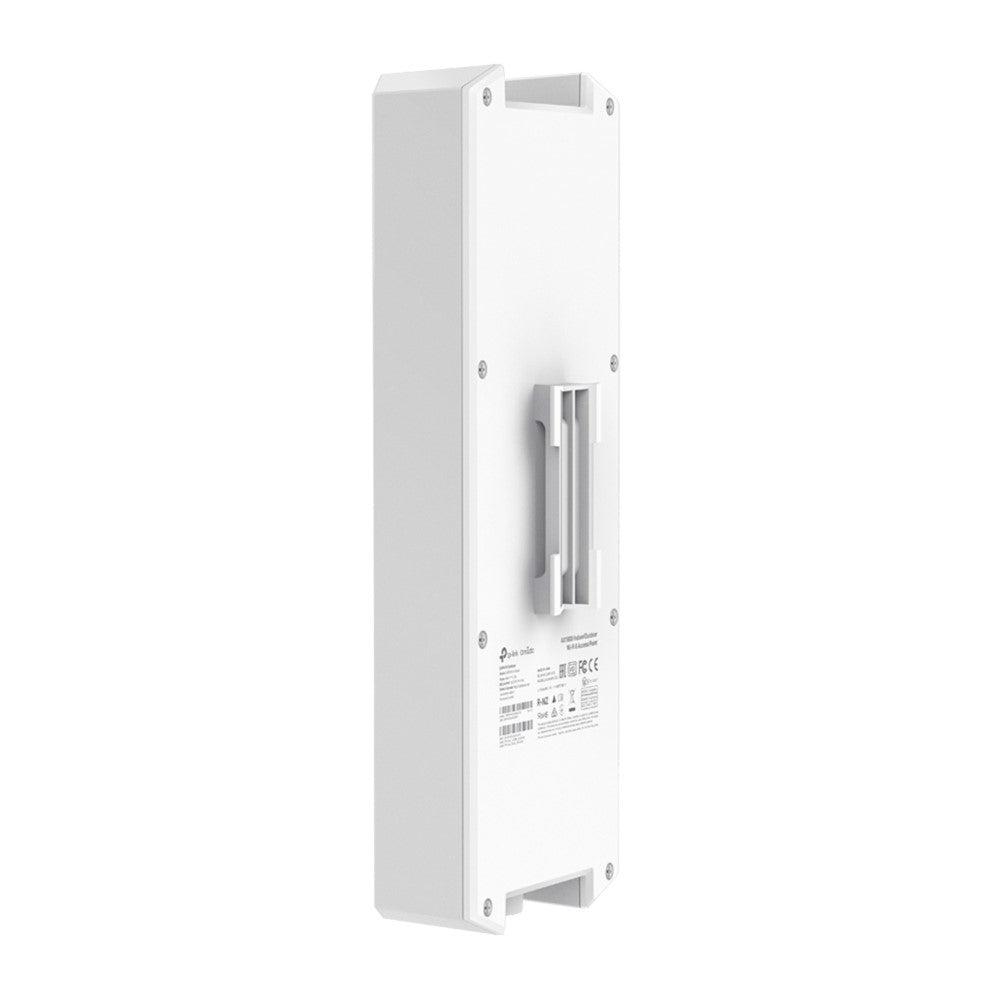

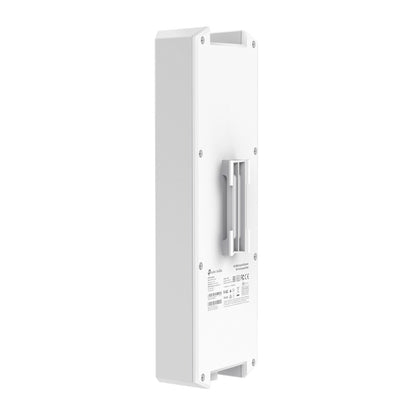

• Mounting: Pole/Wall Mounting (Kits included)

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a

• Concurrent Clients: 250+
• Frequency: 2.4 GHz and 5 GHz
• Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/ Enterprise, WPA2-Personal/ Enterprise, WPA3-Personal/ Enterprise
• Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Transmission Power CE: <20 dBm(2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
• Transmission Power FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)

MANAGEMENT

• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller OC300, Omada Hardware Controller OC200, Omada Software Controller
• Cloud Access: Yes (Through Omada Software Controller), OC200, OC300, Omada Cloud-Based Controller
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1,v2c, v3
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes

OTHERS

• Certification: CE, FCC, RoHS
• Package Contents: EAP650-outdoor, Passive PoE adapter, Power cords, Mounting Kits, Waterproof kits, Waterproof antenna, Installation Guide
• System Requirements: Microsoft Windows 11/10/8/7/Vista/XP, Linux
• Environment Operating Temperature: -30℃~70℃
• Operating Humidity: 10%~90% non-condensing
