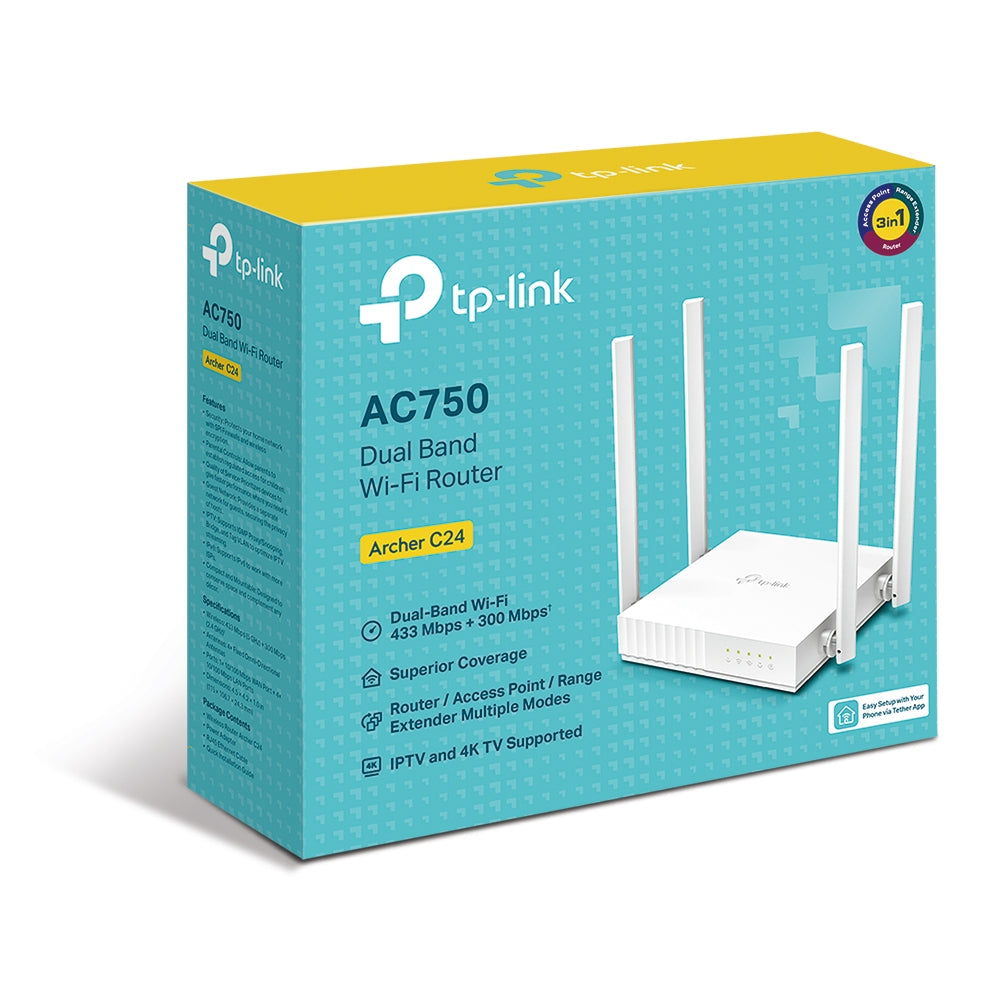

Tp-Link Archer C24 AC750 Dual Band Wi-Fi Router

• High-Speed Wi-Fi: AC750 dual-band is ideal for HD video streaming, high-speed downloading.
• Far-Reaching Coverage: 4× antennas deliver far-reaching Wi-Fi and reliable connections.
• Multi-Mode 3 in 1: Supports Router, Access Point, and Range Extender to add flexibilities.
• Parental Controls: Manages when and how connected devices can access the internet.
• Guest Network: Provides separate access for guests while securing the host network.
• Smooth HD Streaming: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
• IPv6 Supported: Compatible with the IPv6 (the latest Internet Protocol version 6).
• Compact and Mountable: Designed to conserve space and complement any décor.

Doubling Bandwidth with Dual Band

AC Dual-band WiFi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz
band provides a far-reaching, stable connection to the rest of your devices.

Stable and Far-Reaching

Featuring 4× diagonally-distributed antennas, Archer C24 cover more direction and expand the WiFi coverage,
supporting buffer-free surfing and stalling-free downloading.

Versatile Management

Easily manage your home network with versatile built-in tools, including Parental Controls, Guest Network, QoS, and more.

• Parental Controls: Block content, Limit online time
• Guest Network: Use a different password, Secure private network
• QoS: Prioritize devices

As Stable as a Larger One

Archer C24 goes through rigorous repeated testing to ensure a final product reliable under a number of strenuous environments. The final result: 8 randomly selected Archer C24 routers collectively tested for 1,936 hours.

Easy Setup at Your Fingertips

Set up Archer C24 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.

Specs

WIRELESS

• Standards: Wi-Fi 5, IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
• WiFi Speeds: AC750, 5 GHz: 433 Mbps (802.11ac), 2.4 GHz: 300 Mbps (802.11n)
• WiFi Range: 2 Bedroom Houses: 4× Fixed Antennas
• WiFi Capacity: Medium, Dual-Band (Allocate devices to different bands for optimal performance)
• Working Modes: Router Mode, Access Point Mode, Range Extender Mode

HARDWARE

• Processor: Single-Core CPU
• Ethernet Ports: 1× 10/100 Mbps WAN Port, 4× 10/100 Mbps LAN Ports
• Buttons: WPS/Reset Button
• Power: 9 V ⎓ 0.6 A

SECURITY

• WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)
• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
• Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network

SOFTWARE

• Protocols: IPv4, IPv6
• Parental Controls: URL Filtering, Time Controls
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: NO-IP, DynDNS
• Management: Tether App, Webpage

PHYSICAL

• Dimensions (W×D×H): 115 × 106.7 × 24.3 mm
• Package Contents: Wi-Fi Router Archer C24, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide

OTHER

• System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
• WiFi Reception Sensitivity 5GHz: 11a 54M: -76dBm, 11ac VHT20 MCS8: -71dBm, 11ac VHT40 MCS9: -66dBm, 11ac VHT80 MCS9: -62dBm
• WiFi Reception Sensitivity 2.4GHz: 11g 54M: -76dBm, 11n HT20 MCS7: -73dBm, 11n HT40 MCS7: -71dBm
