The Next Wave of Home Connectivity
QUICK FEATURES
-
Gigabit WiFi for 8K Streaming: 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time
-
Fully Featured Wi-Fi 6: Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection
-
Connect More Devices: Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput
-
Extensive Coverage: 6× antennas and Beamforming ensure broad coverage
-
HomeShield: TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection
-
More Vents, Less Heat: Improved vents area unleashes the full power of the whole machine
-

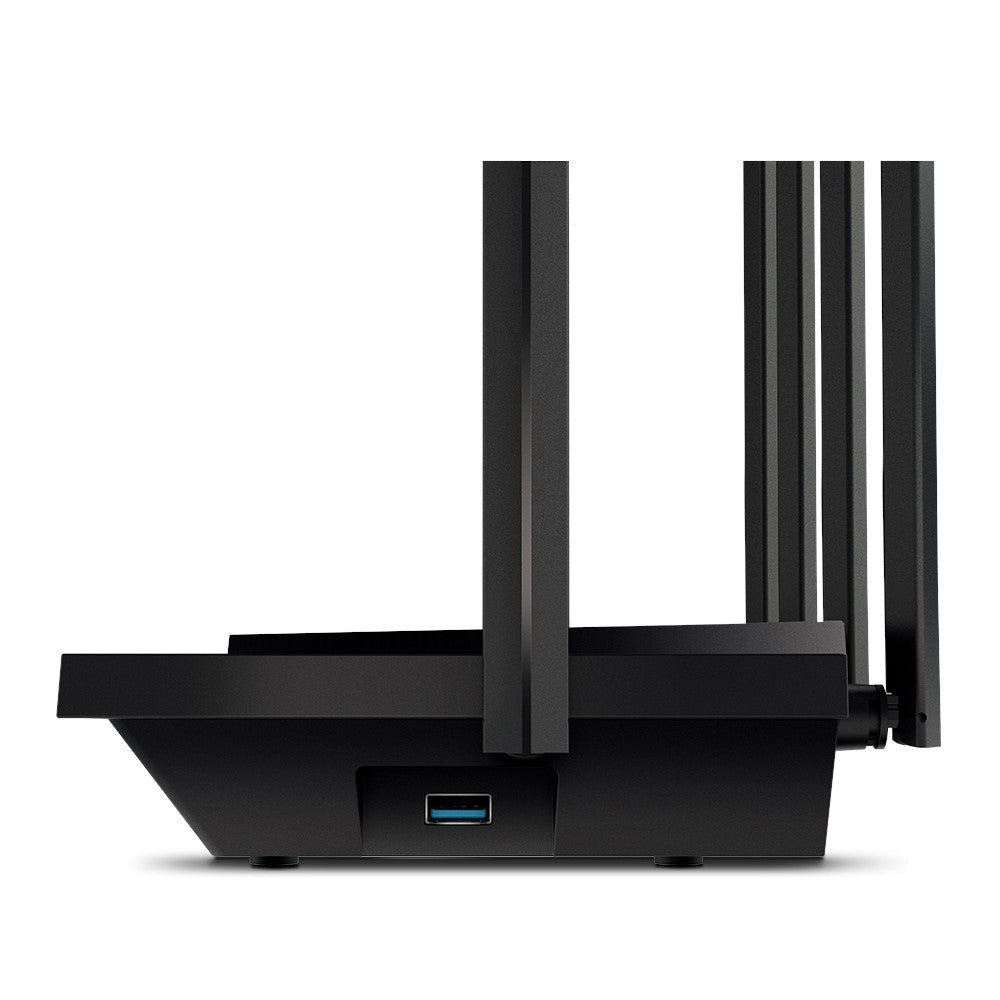

USB Sharing: 1× USB 3.0 port enables easy media sharing and private cloud building
-
Easy Setup: Set up the router in minutes with the Tether app
-
EasyMesh Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh compatible router for seamless whole-home coverage
Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Warp Speed for Smooth 8K Streaming
Drastically improved speeds enable streaming, fast downloading, and gaming, all at the same time. Need to go faster? Hop on 5 GHz with full speed-boosting features, to stream multiple 8K videos without lagging.
Extensive Wi-Fi Coverage with Advanced Technology
Enjoy stable Wi-Fi connections even in the kitchen and bedroom. High-Power FEM, 6× Antennas, Beamforming, and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.
Responsive Processing Powering Stable Network
Equipped with a next-gen high-efficiency 64-bit Qualcomm CPU, Archer AX72 processes data responsively and reduces the latency within the network, delivering a robust yet stable network.
Connect More,-Stay Fast
Easily handle dozens of devices streaming and gaming at the same time — OFDMA and MU-MIMO combine to future-proof your home network by providing greater capacity to connect more devices.

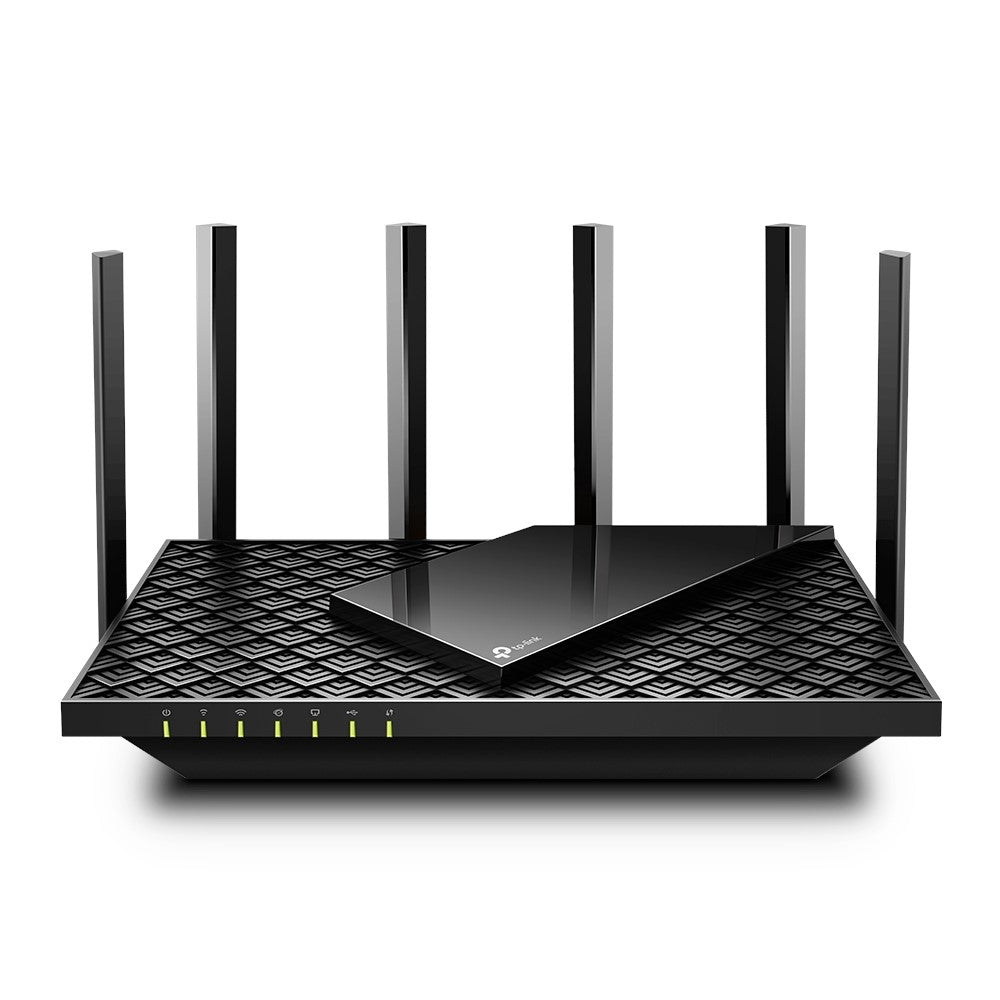

Designed to Be Cool
The slant rectangle atop the scaled armor design provides a contemporary aesthetic. Its 167 cm² (25 in²) area dedicated to heat dissipation, unleashes the full power of the whole machine.
TP-Link HomeShield: Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced security features delivering a safe environment that protects your family and network's data and privacy.
-
Home Network Scanner: Real-time network scanner to detect potential threats and security issues.
-
Parental Controls: Manage time online and block inappropriate content keeping your family safe online.
-
Quality of Service: Assign your favorite devices to have the fastest connections for top performance.
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible devices to further form your whole home mesh WiFi. No more searching for a stable connection.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX53 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.
SPECS
WIRELESS
-
Standards for Wi-Fi 6: IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz
-
WiFi Speeds AX5400: 5 GHz: 4804 Mbps (802.11ax, HE160), 2.4 GHz: 574 Mbps (802.11ax)
-
WiFi Range: Ideal for 3 bedroom houses with 6× fixed high-performance antennas that form a signal-boosting array to cover more directions and large areas
-
Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
-
High-Power FEM: Improves transmission power to strengthen signal coverage
-
4T4R: Multiple streams in the same band strengthen the fault tolerance in transmission
-
WiFi Capacity: Dual-Band, 4×4 MU-MIMO, Airtime Fairness, 6 streams, OFDMA, DFS
-
Working Modes: Router mode, Access Point mode
HARDWARE
-
Power: 12V, 2.5A
-
Processor: 1 GHz Dual-Core CPU
-

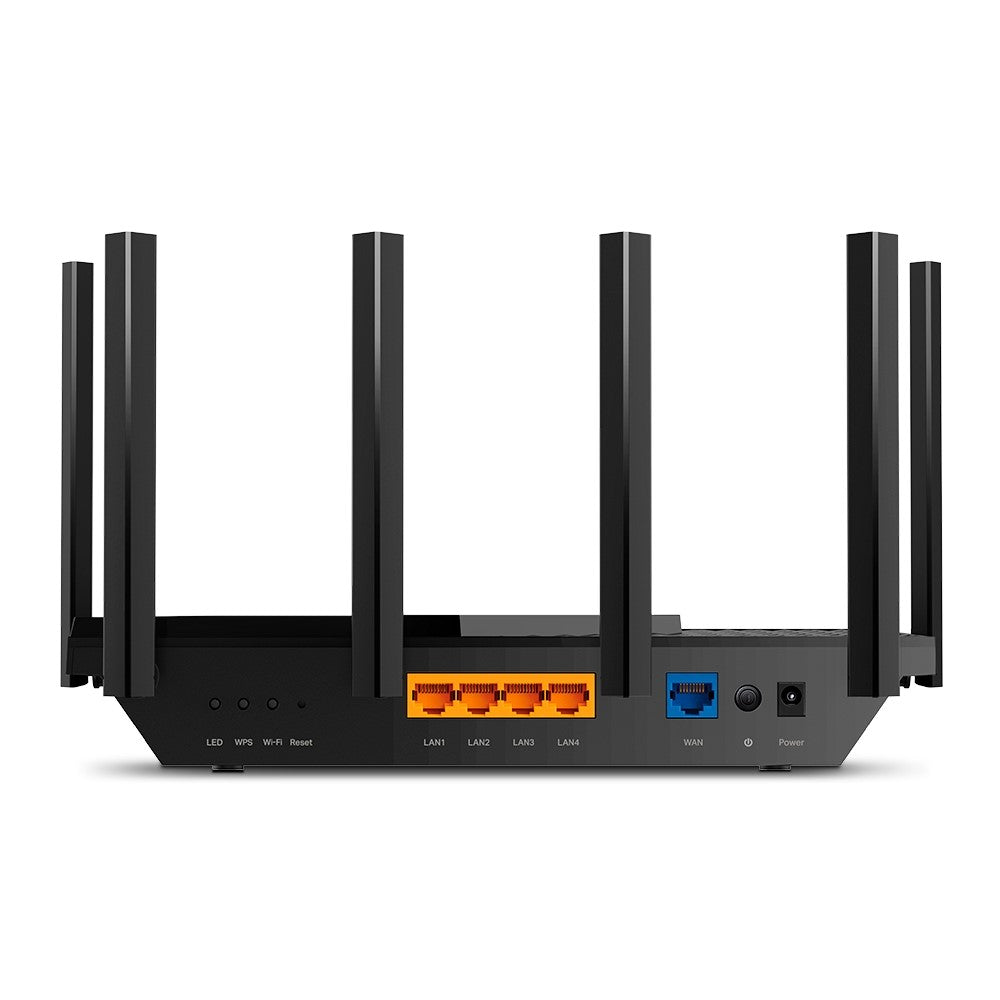

Ethernet Ports: 1× Gigabit WAN Port, 4× Gigabit LAN Port
-
USB support: 1× USB 3.0 Port (Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server)
-
Buttons: WPS, Reset, Power on/off, Wi-Fi on/off
SECURITY
-
Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
-
HomeShield security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner
-
Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
-
WiFi Encryption: WPA,WPA2,WPA3,WPA/ WPA2-Enterprise
-
VPN Server and Client: OpenVPN, PPTP, L2TP
SOFTWARE
-
Protocols: IPv4, IPv6
-
Parental Controls: HomeShield (Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports)
-
OneMesh™: Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products
-
Service Kits: HomeShield
-
WAN Types: Dynamic IP, Static IP, PPPoE/PPTP/L2TP
-
Quality of Service: QoS by Device
-
Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS, OTA Firmware Upgrade
-
NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server
-
IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
-
DHCP: Address Reservation, DHCP Client List, Server
-
Management: Tether App, Webpage
PHYSICAL
-
Dimensions (W×D×H): 272.5 × 147.2 × 49.2 mm
-
Package Contents: Wi-Fi Router Archer AX72, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
OTHER
-
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Microsoft Windows 98SE/ NT/ 2000/ XP/ Vista™/ 7/ 8/ 8.1/ 10/ 11, MAC, Netware, Unix, Linux, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)
-
Certifications: FCC, RoHS
-
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
-
Operating Humidity: 10%~90% non-condensing
