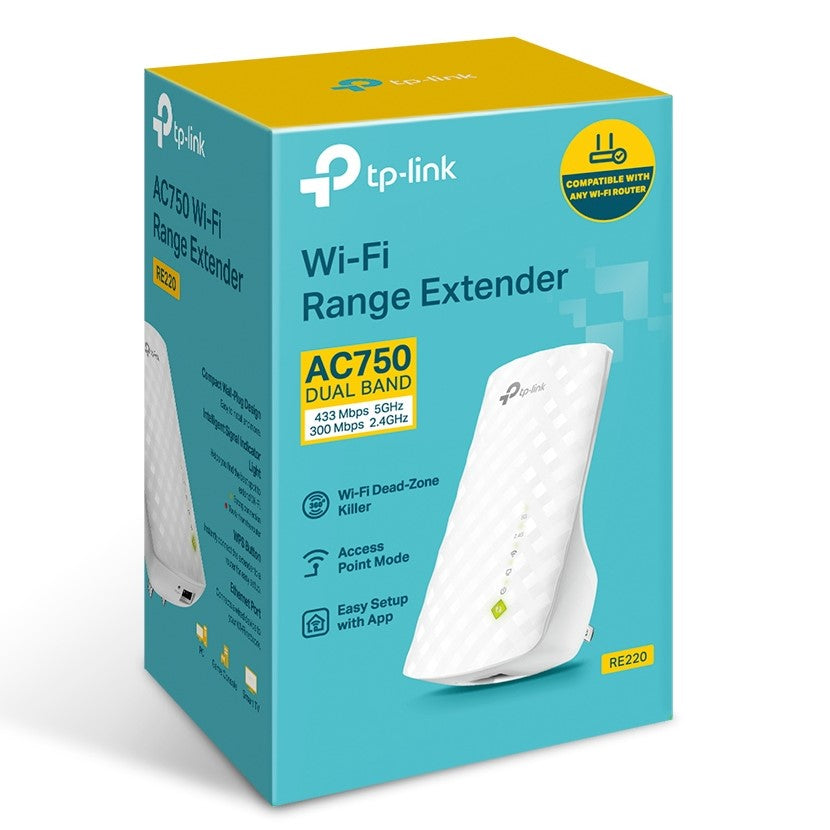

TP-LINK AC750 Wi-Fi Range Extender RE220

Boost Your Wi-Fi Coverage

Place the RE200 between your wireless router and wireless devices, expanding WiFi coverage while eliminating WiFi dead zones. Enjoy a seamless wireless network throughout your home or office. The dual bands WiFi up to 750Mbps not only help extend to 2,000 sq.ft. (185 m2), but also make good use of your high ISP speed — ideal for HD video streaming, online gaming and other bandwidth-intensive tasks

AC750 WiFi for Compatible Connections

The RE200’s Wireless AC technology create stronger WiFi
connections across your home. Work with any standard
router or access point, making it convenient to provide wide, non-dropping Dual Band WiFi to multiple devices.

WiFi keeps Strongest for Unlimited Moving

With TP-Link Mesh Technology, it’s easy to form a Mesh network with a single WiFi name for seamless whole home coverage. Just connect RE220 to a OneMesh™ router. Always enjoy the strongest WiFi when you’re walking around with no need to search around for a stable connection.

Enjoy a Mesh Network with Your Existing Router

Want a Mesh network? Hesitate on whether to replace your existing router and buy a Mesh set? TP-Link OneMesh™ resolves your dilemma.

• 1: Update your existing TP-Link router’s firmware to the OneMesh™ version—no need to replace it.
• 2: Connect the RE220 to the router.
• 3: Enjoy your Mesh network

One Key Connection

Press the WPS button on your router and RE button on your RE220 within 2 minutes to easily connect to the network. Once connected with an existing router, you can simply relocate the RE220 at any location for the best signal strength.

Smart Signal Indicator

Smart signal lights indicate the signal strength received from the existing router. Read the lights to find the best location for your RE220.

Entertainment Adapter

With an Ethernet port, RE220 can function as a wireless adapter to connect wired devices like desktop, gaming consoles, Blu-ray® players, and Internet TVs. At the same time, the device can share the wireless network as well.

 Specs

WIRELESS

• Working Modes: Range Extender/Access Point

HARDWARE FEATURES

• Plug Type: EU, UK, US, AU
• Ports: 1 x 10/100Mbps Ethernet Port (RJ45)
• Buttons: WPS Button, Reset Button
• Input Power: 100-240V~50/60Hz
• Power Consumption: 6.5W
• Dimensions ( W x D x H ): 110.0 x 65.8 x 75.2 mm
• Antennas: 3 Internal Antennas

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency: 2.4GHz & 5GHz
• Signal Rate: 300Mbps at 2.4GHz, 433Mbps at 5GHz
• Reception Sensitivity 5G: 390M: -60dBm, 29.3M: -83dBm, 180M: -64dBm, 13.5M: -87dBm, 78M: -68dBm, 6.5M: -90dBm, 54M: -75dBm, 6M：-90dBm
• Reception Sensitivity 2.4G: 270M: -70dBm, 130M: -70dBm, 108M: -73dBm, 54M: -75dBm, 11M: -86dBm, 6M: -92dBm, 1M: -94dBm
• Wireless Functions: Enable/Disable Wireless Radio, DFS, Access Control, LED Control, Power Schedule, Wi-Fi Coverage
• Wireless Security: 64/128/152-bit WEP, WPA-PSK / WPA2-PSK
• Transmission Power: < 20 dBm (EIRP)

OTHERS

• Package Contents: AC750 Wi-Fi Range Extender RE220, Quick Installation Guide
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% non-condensing
