- Sku: TL-eap225outdoor
- Type: Wireless Access Points
TP-LINK AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point EAP225-Outdoor
SHIPPING/ PICK-UP DETAILS FOR THIS PRODUCT
Estimated Shipping Widget will be displayed here!
PRODUCT DESCRIPTION
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps with 2×2 MIMO technology
- Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
- Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations
- High transmission power and high gain antennas provide a long-range coverage area
- Cloud centralized management and Omada app for ultra convenience and easy management
- Captive portal provides a convenient method for guest authentication
- Facebook Wi-Fi and SMS authentication help to boost your business
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
Omada Mesh Technology
- Intelligent Self-organization: Omada EAPs with Mesh Technology, automatically choose the best route to extend your Wi-Fi further and more flexibly
- Self-healing: If one link has an issue, the system will automatically reroute data via the other Omada devices to make sure you stay online
Superior Wi-Fi Performance and Long-Range Coverage
A dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior Wi-Fi performance and long-range coverage over 2.4GHz and 5GHz wireless bands.
Seamless Roaming
802.11k and 802.11v help client select access point automatically with the best signal to facilitate seamless transitions when move. This allows streaming communication like VoIP and video conferences uninterrupted
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
- Detachable Antennas: EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands
- Multiple PoE Options for Easy Installation: EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter
- Flexible Deployment: EAP225-Outdoor can be easily installed on a wall or to a pole with the mounting kits provided
Cloud Centralized Management - Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
SPECS
HARDWARE FEATURES
- Interface: Gigabit Ethernet (RJ-45) Port×1
- Button: Reset
- Power Supply: 802.3af PoE and 24 Passive PoE(PoE injector included)
- Power Consumption: 10.5W
- Dimensions ( W x D x H ): 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)
- Antenna: 2.4GHz: 2 × 3dBi, 5GHz: 2 × 4dBi
- Weatherproof Enclosure: IP65
- Mounting: Pole/Wall mount (mounting kit included)
WIRELESS FEATURES
- Wireless Client Capacity: 220+
- Wireless Standards: IEEE 802.11a/b/g/n/ac
- Frequency: 2.4GHz, 5GHz
- Signal Rate: 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3), 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40), 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11b: 1, 5.5, 11Mbps, 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Wireless Functions: Multiple SSIDs（Up to 16 SSIDs, 8 for each band), Enable/ Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/ AP/ Client
- Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support
- Transmission Power CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
- Transmission Power FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
MANAGEMENT
- Omada App: Yes
- Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- Management MAC Access Control: Yes
- SNMP: v1,v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS

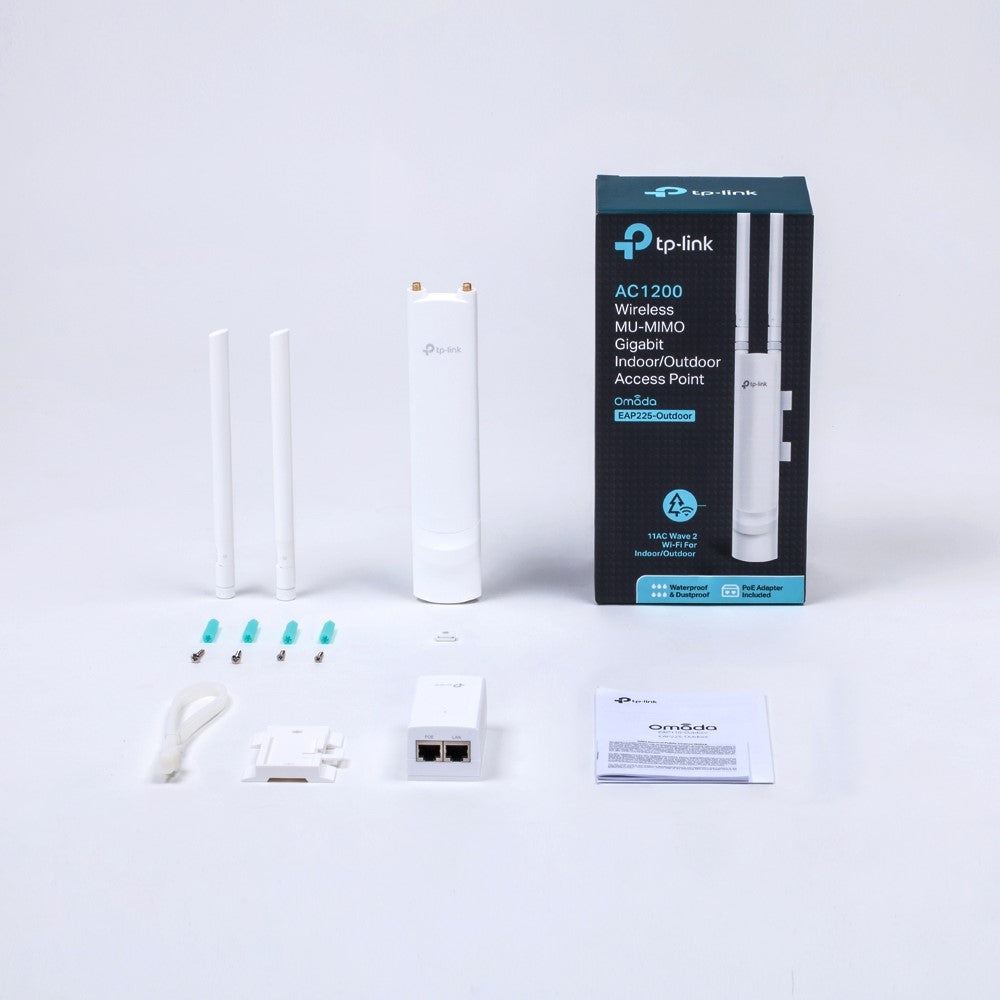

- Package Contents: AC1200 Wireless MU-MIMO Gigabit INdoor/Outdoor Access Point EAP225outdoor, Passive PoE Injector, Power Cord, Waterproof Rubber Insert, Waterproof Antenna, Mounting Kits, Installation Guide
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Widows 11, Linux
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Operating Humidity: 10–90% RH non-condensing
