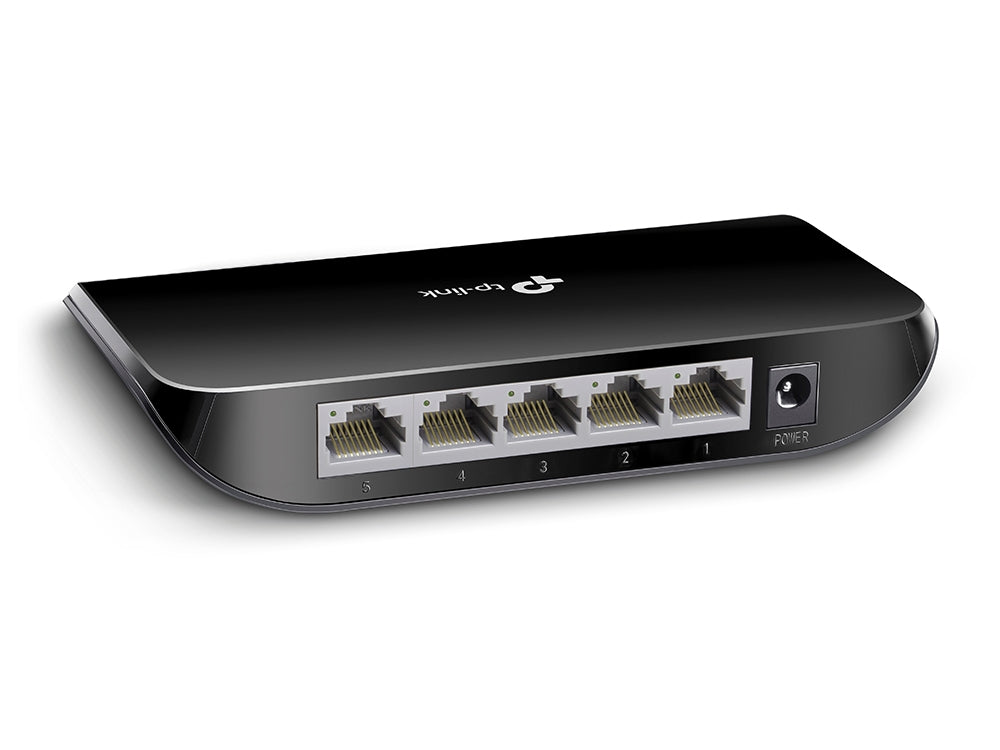

TP-LINK 5-Port Gigabit Desktop Switch TL-SG1005D

• 5 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
• Green Ethernet technology saves on power consumption
• IEEE 802.3x flow control provides reliable data transfer
• Plastic case, desktop or wall-mounting design
• Plug and play, no configuration required

Gigabit Switch

Featured with 5 10/100/1000Mbps ports, TL-SG1005D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

This new generation TL-SG1005D 5-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

• Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1005D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

• Power Budget According to Cable Length

Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Specs

HARDWARE FEATURES

• Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3x
• Interface: 5 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Fan: No
• Physical Security Lock: No
• External Power Supply: External Power Adapter (Output: 5VDC / 0.6A)
• Dimensions ( W x D x H ): 140×88×23 mm
• Max Power Consumption: 3.1W
• Max Heat Dissipation: 10.57 BTU/h

SOFTWARE FEATURES

• Transfer Method: Store and Forward
• MAC Address Table: 4K
• Advanced Functions: Green Technology, saving power up to 80%, 802.3x Flow Control, Back Pressure

OTHERS

• Package Contents: 5-Port Gigabit Desktop Switch TL-SG1005D, Power Adapter, Installation Guide
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Operating Humidity: 10%~90% non-condensing
