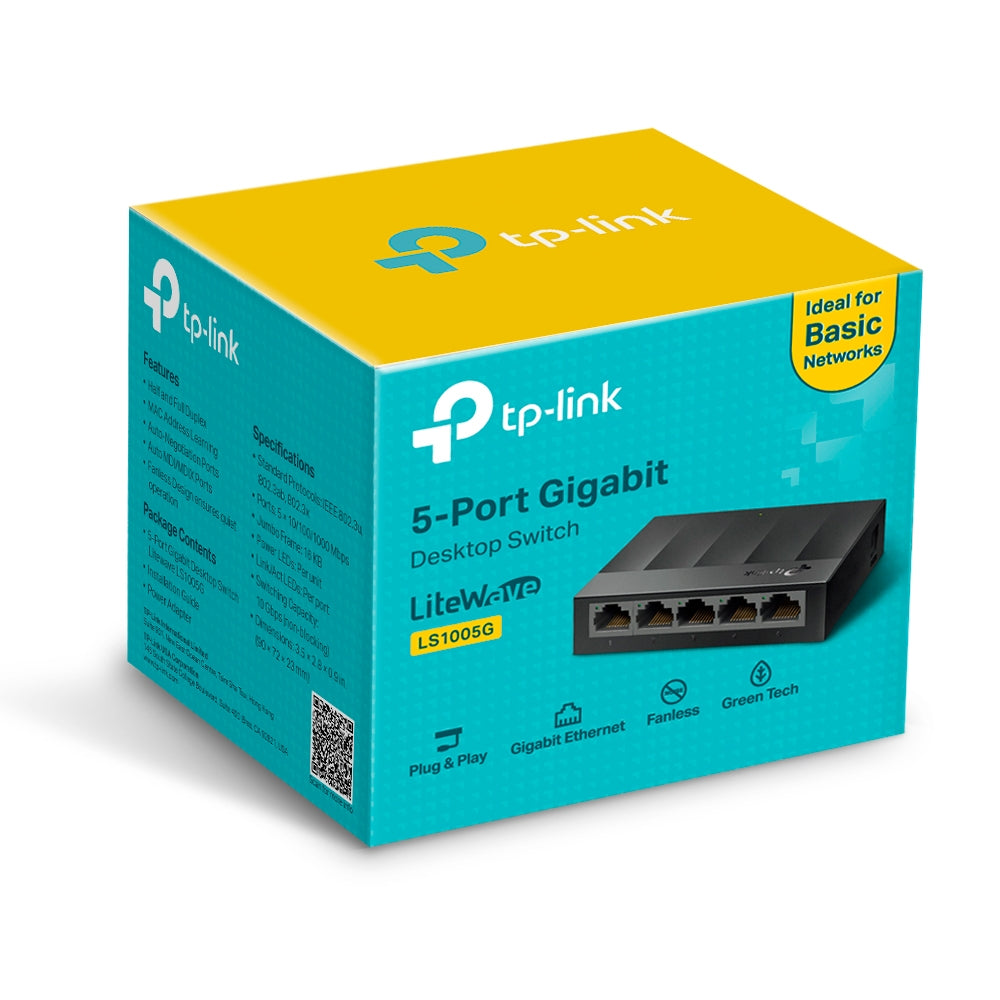

TP-LINK 5-Port 10/100/1000Mbps Gigabit Desktop Switch LS1005G

The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

• 5× 10/100/1000Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
• Green Ethernet technology saves power consumption
• IEEE 802.3X flow control provides reliable data transfer
• Plastic casing and desktop design
• Plug and play, no configuration required
• Fanless design ensures quiet operation

Let LiteWave Bring You Lighter Network Life

The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly.

Go Green with Your Ethernet

The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Gigabit Ports For More Reliable Speeds

Increase the reliability of your connected devices with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Use Where You Need, However You Need

The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Specs

HARDWARE FEATURES

• Interface: 5 × 10/100/1000Mbps Auto Negotiation / Auto MDI/ MDIX Ports
• Fan: No
• Standards and Protocols: IEEE 802.3i/802.3u/802.3x
• External Power Supply: External Power Adapter (Output: 5.0VDC / 0.6A)
• Dimensions ( W x D x H ): 90 × 72 × 23
• Max Power Consumption: 3.75W
• Max Heat Dissipation: 12.6 BTU/h

PERFORMANCE

• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.4 Mpps
• MAC Address Table: 2K
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame: 16 KB

SOFTWARE FEATURES

• Transfer Method: Store and Forward
• Advanced Functions: Green Technology, 802.3X Flow Control, Back Pressure

OTHERS

• Package Contents: 5-Port 10/100/1000Mbps Desktop Switch, Power Adapter, Installation Guide
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Operating Humidity: 10%~90% non-condensing
