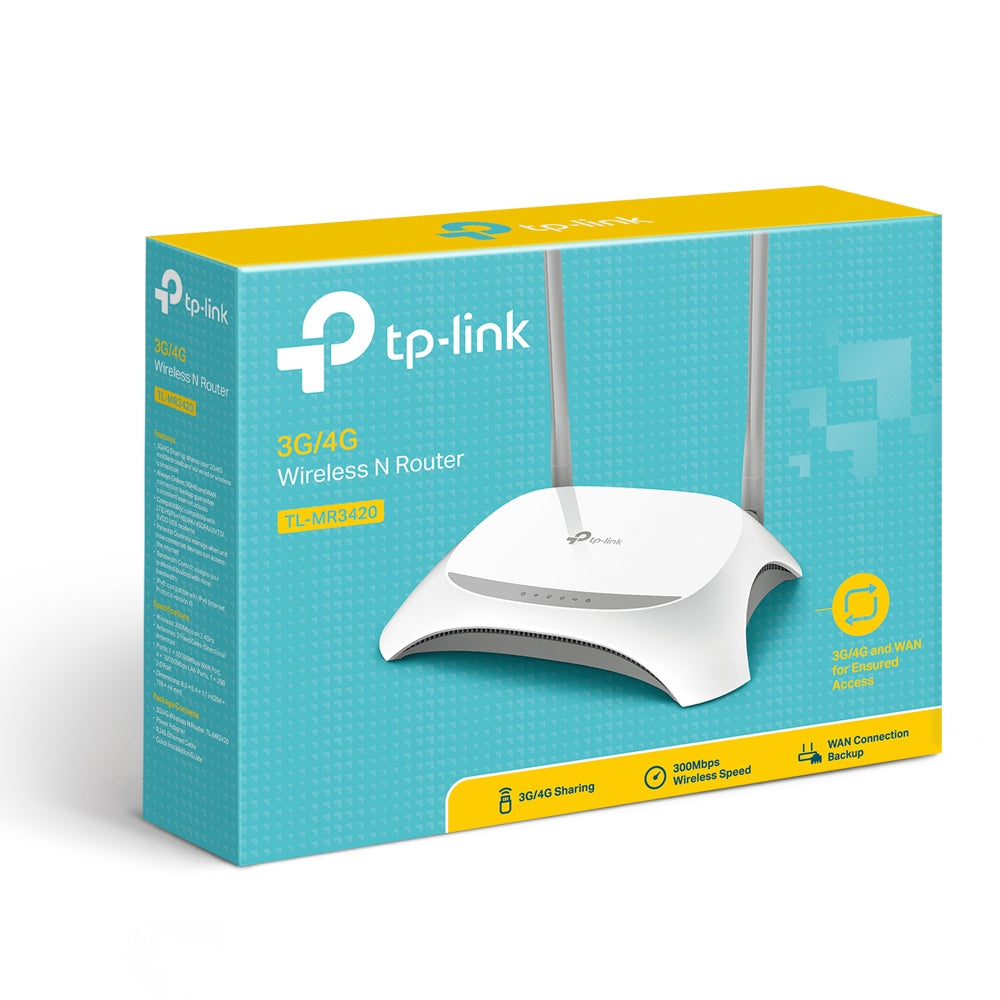

TP-LINK 3G/4G Dongle Modem Wireless N Router TL-MR3420

• Compatible with LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO USB modems, tested in the field
• 3G/4G and WAN connection Backup guarantees an "Always-online" Internet connection
• Local wireless HD video sharing, with speeds up to 300Mbps
• Easy one-touch wireless security encryption with the WPS button
• Bandwidth control allows administrators to determine how much bandwidth is allotted to each PC

Transform 3/4G Signal into Wi-Fi

Connect a 3/4G USB dongle to TL-MR3420 and instantly create your own Wi-Fi hotspot. Share a stable internet connection with your friends and family. TL-MR3420 is compatible with the majority of brands.

Connects More Devices

Struggling to get a fast connection with more devices? TL-MR3420 delivers up to 300Mbps speeds for up to 32 online devices at the same time. Stay connected with your smartphone, laptop, games console and more.

Two Modes,Limitless Possibilities

TL-MR3420 also supports a WAN internet connection via an Ethernet cable. Switch between wired WAN and wireless 3/4G connections as required with this cost-effective all-in-one router.

Easy Setup and Management

Set up the TL-MR3420 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Control your home network whenever and wherever you are.

SPECS

HARDWARE FEATURES

• Interface: 1 USB 2.0 Port for LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO USB Modem, 1 10/100Mbps WAN Port, 4 10/100Mbps LAN Ports, support the auto-Negotiation and auto-MDI/MDIX
• Buttons: WPS/Reset Button, Wireless On/Off Switch, Power On/Off Button
• External Power Supply: 12VDC/1A
• Dimensions ( W x D x H ): 204*138*44 mm
• Antenna: Omni directional, Detachable, Reverse SMA

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
• Frequency: 2.4-2.4835GHz
• Transmit Power: < 20 dBm
• Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,
  Wireless MAC Filtering

SOFTWARE FEATURES

• Security: NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death
• Management: Web Based Configuration(HTTP), Web Based Firmware Upgrade

OTHERS

• Package Contents: 3G/4G Wireless N Router TL-MR3420, 2 Antennas, Power supply unit, Ethernet Cable, Resource CD, Quick Installation Guide
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ Windows 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux.
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
