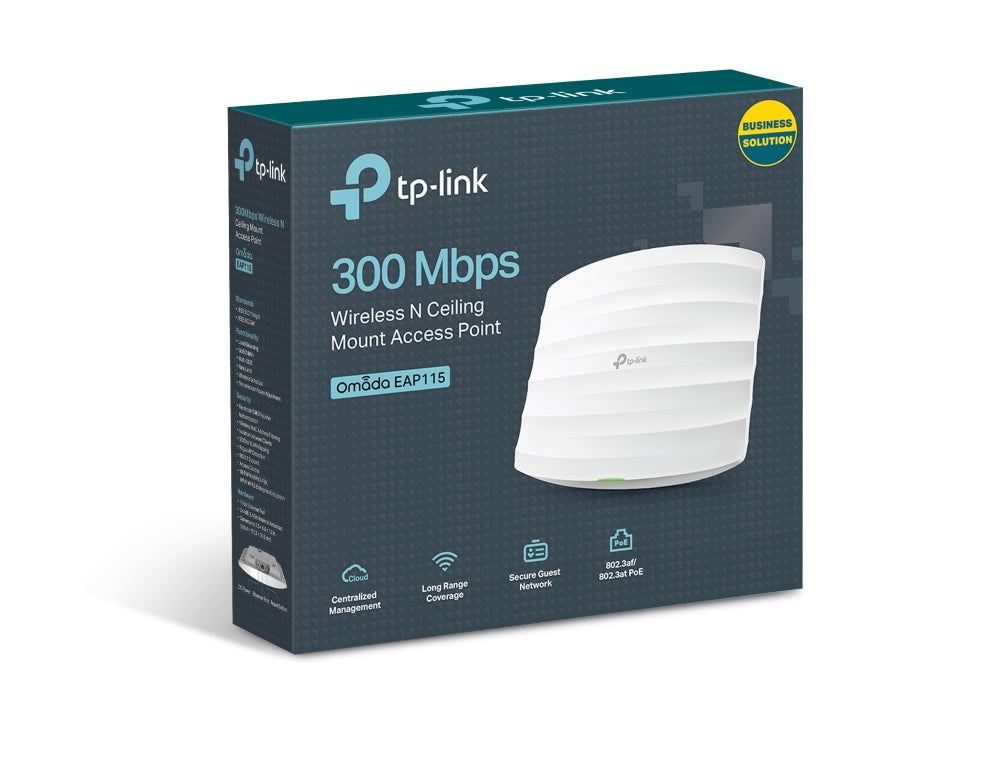

TP-LINK 300Mbps Wireless N Ceiling Mount Access Point EAP115

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• PoE Support: Supports Power over Ethernet (802.3af/at) for convenient deployment.
• Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
• Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Guest Network with Facebook and SMS Support

The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Timesaving and Flexible Deployment

The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

SPECS

HARDWARE FEATURES

• Interface: Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）
• Button: Reset
• Power Supply: PoE or external 9VDC/0.6A power supply
• Power Consumption: 2.8W
• Dimensions ( W x D x H ): 7.5×6.7×1.2 in (189.5×170.5×29.7mm)
• Antenna Type: Internal 2* 4dBi Omni
• Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.4-2.4835GHz
• Signal Rate: 11n: Up to 300Mbps(dynamic), 11g: Up to 54Mbps(dynamic), 11b: Up to 11Mbps(dynamic)
• Reception Sensitivity: 300M: -71dBm@10% PER, 150M: -75dBm@10% PER, 54M: -78dBm@10% PER, 11M: -93dBm@8% PER, 6M: -92dBm@10% PER, 1M: -96dBm@8% PER
• Wireless Functions: Multiple SSIDs (Up to 8 SSIDs), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control （Adjust Transmit Power on dBm), QoS(WMM), Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

MANAGEMENT

• Omada App: Yes
• Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
• Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1,v2c
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes

OTHERS

• Certification: CE, FCC, RoHS
• Package Contents: 300Mbps Wireless N Ceiling Mount Access Point EAP115, Power Adapter, Mounting Kits, Installation Guide
• System Requirements: Microsoft Windows 10/8/7/Vista/XP
• Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
• Operating Humidity: 10%~90% non-condensing
