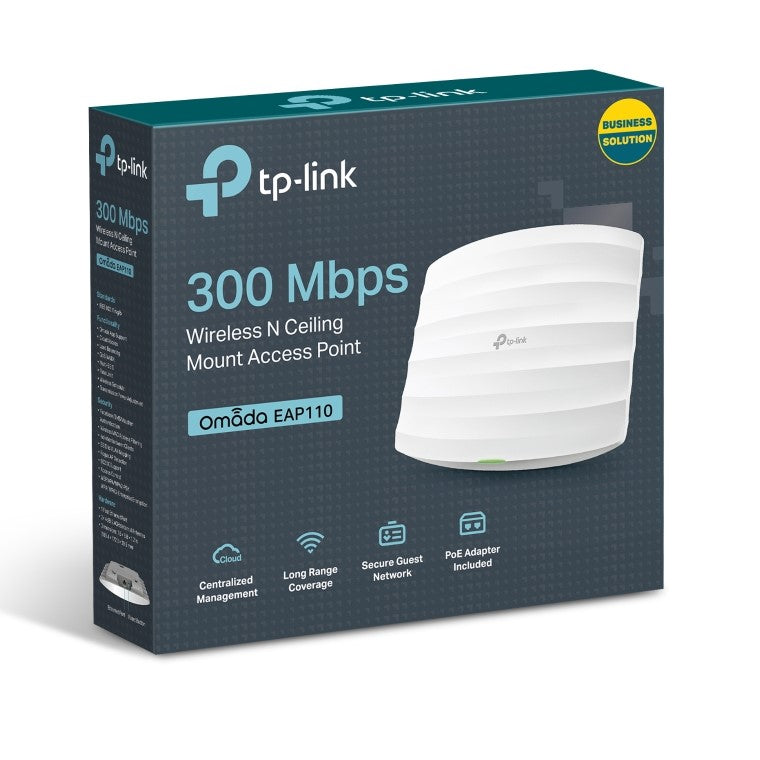

TP-LINK 300Mbps Wireless N Ceiling Mount Access Point EAP110

• Cloud centralized management and Omada app for ultra convenience and easy management
• Supports passive PoE for convenient installation up to 100meters
• Ceiling mounting design with chassis makes it easy to deploy on a wall or ceiling
• The captive portal provides modern and professional user sign-in experience
• Facebook check-in and SMS authentication expands your social exposure with secured technology
• Multi-SSID divides multiple wireless networks for different user groups
• Enterprise class Wi-Fi security help to decrease network security threats
• Supports management VLAN for an enhanced network management

Flexible Placement-Easy mounting design & PoE

The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.

Cloud Centralized Management-Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Captive Portal-Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

SPECS

HARDWARE FEATURES

• Interface: Fast Ethernet (RJ-45) Port x 1（Support passive PoE）
• Button: Reset
• Physical Security Lock: Kensington Lock Slot
• Power Supply: 4V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
• Power Consumption: 2.8W
• Dimensions ( W x D x H ): 7.5×6.7×1.2 in (189.5×170.5×29.7mm)
• Antenna Type: Internal 2* 4dBi Omni
• Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

• Coverage: 60㎡(650ft²)
• Wireless Client Capacity: 100+
• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.4-2.4835 GHz
• Signal Rate: 11n: Up to 300Mbps(dynamic), 11g: Up to 54Mbps(dynamic), 11b: Up to 11Mbps(dynamic)
• Reception Sensitivity: 300M: -71dBm@10% PER, 150M: -75dBm@10% PER, 54M: -78dBm@10% PER, 11M: -93dBm@8% PER, 6M: -92dBm@10% PER, 1M: -96dBm@8% PER
• Wireless Functions: Multiple SSIDs (Up to 8 SSIDs）, Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (adjustable in 1 dBm step), QoS(WMM), Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
• Transmission Power: 21dBm max.

MANAGEMENT

• Omada App: Yes
• Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
• Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1,v2c
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes

OTHERS

• Certification: CE, FCC, RoHS
• Package Contents: 300Mbps Wireless N Ceiling Mount Access Point EAP110, Passive  PoE Power Adapter, Mounting Kits, Installation Guide
• System Requirements: Microsoft Windows 10/8/7/Vista/XP
• Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
• Operating Humidity: 10%~90% non-condensing
