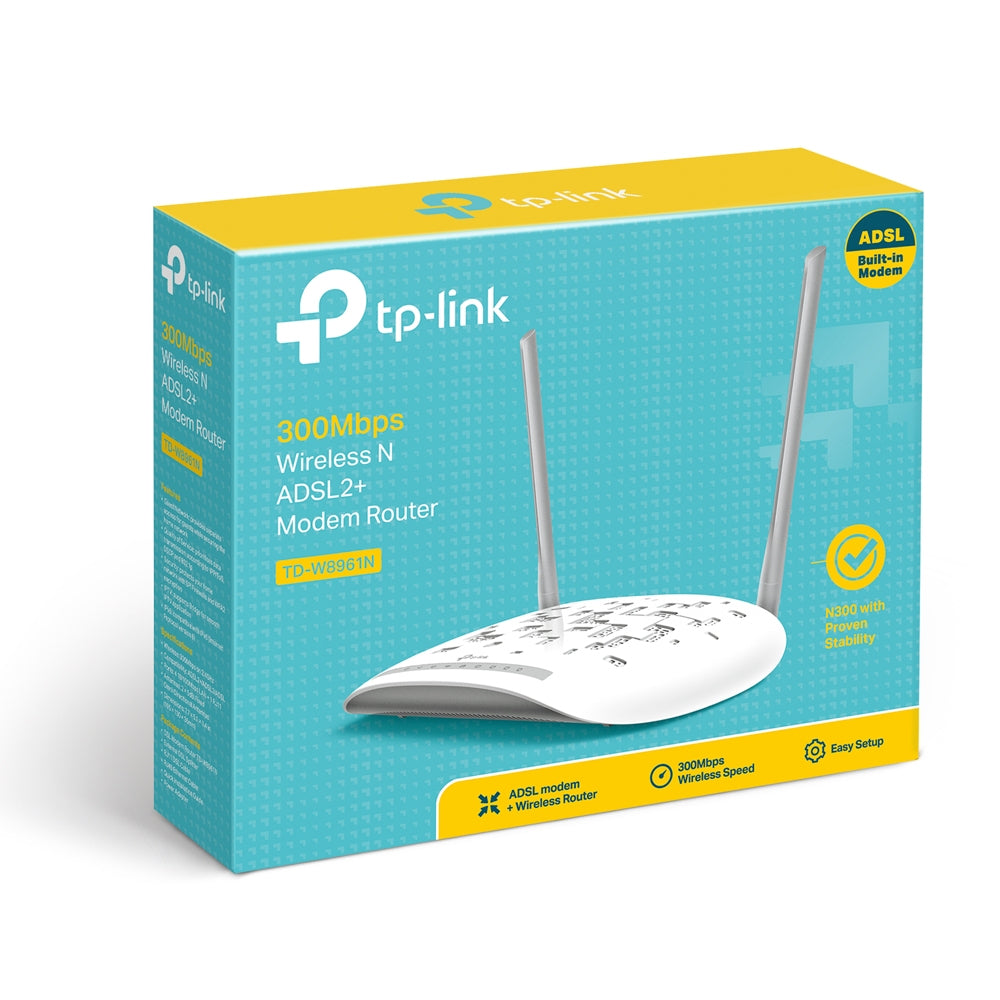

TP-LINK 300Mbps Wireless N ADSL2+ Modem Router TD-W8961N

• All-in-One Device: ADSL2+ Modem, NAT Router, 4-Port Switch and Wireless N Access Point
• Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming
• Easy Setup Assistant with multi-language support provides quick & hassle-free installation
• Easy one-touch wireless security encryption with the ‘WPS’ button and easy Wi-Fi On/Off button

All-in-One Device with Stronger Wi-Fi

Combined with ADSL2+ modem and NAT Router, TD-W8961N is an incredibly robust all-in-one device that provides a full rate of ADSL2+ /ADSL2 /ADSL standard with the superb reliability and a cost-effective solution for home and small business.

Wi-Fi Speed Up to 300Mbps

With 300Mbps wireless speeds on the 2.4GHz band and 4 megabit LAN ports, TD-W8961N is perfect for streaming in HD, online gaming and other bandwidth-intensive applications.

Powerful Antennas

Two external 5dBi high-gain antennas transmit signal to every corner of your home, creating a strong, stable Wi-Fi network.

WPS Button

Instantly connect your devices to the router without entering the password.

Quick Setup and Easy Management

Simply follow the intuitive web interface to get setup done in seconds and manage your home network easily.

Advanced Security

SPI Firewalls and WPA2 encryption ensure your wireless connection is safe from intruders.

SPECS

HARDWARE FEATURES

• Interface: 4 10/100Mbps RJ45 Ports, 1 RJ11 Port
• Buttons: 1 Power On/Off Switch, 1 WPS Button, 1 Wi-Fi On/Off Button
• External Power Supply: 9VDC/0.85A
• Dimensions ( W x D x H ): 195 * 130 * 35 mm
• Antenna: Omni directional, fixed
• Antenna Gain: 2x5dBi
• IEEE Standards: IEEE 802.3, 802.3u
• ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs), ITU-T G.995.1
• ADSL2 Standards: ITU-T G.992.3 (G.dmt.bis),
  ITU-T G.992.4 (G.lite.bis)
• ADSL2+ Standards: ITU-T G.992.5

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11n, 802.11g, 802.11b

• Frequency: 2.4-2.4835GHz
• Transmit Power: < 20 dBm
• Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering

SOFTWARE FEATURES

• Quality of Service: QoS Remarking based on IPP/ToS, DSCP and 802.1p
• Security: NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death
• Management: Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools
• Port Forwarding: Virtual Server, DMZ, ACL(Access Control List)
• VPN Pass-Through: PPTP, L2TP, IPSec Pass-through
• ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC - Up to 8 PVCs
• Advanced Features: Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Mapping, VLAN, 802.1P, Static Routing,  DNS Relay, DDNS, IGMP snooping V1/2, IGMP Multicast, UPnP

OTHERS

• Package Contents: TD-W8961N, External Splitter, RJ-11 Telephone Cable, RJ-45, Ethernet Cable, Quick Installation Guide, Power Adapter
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ ，Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
