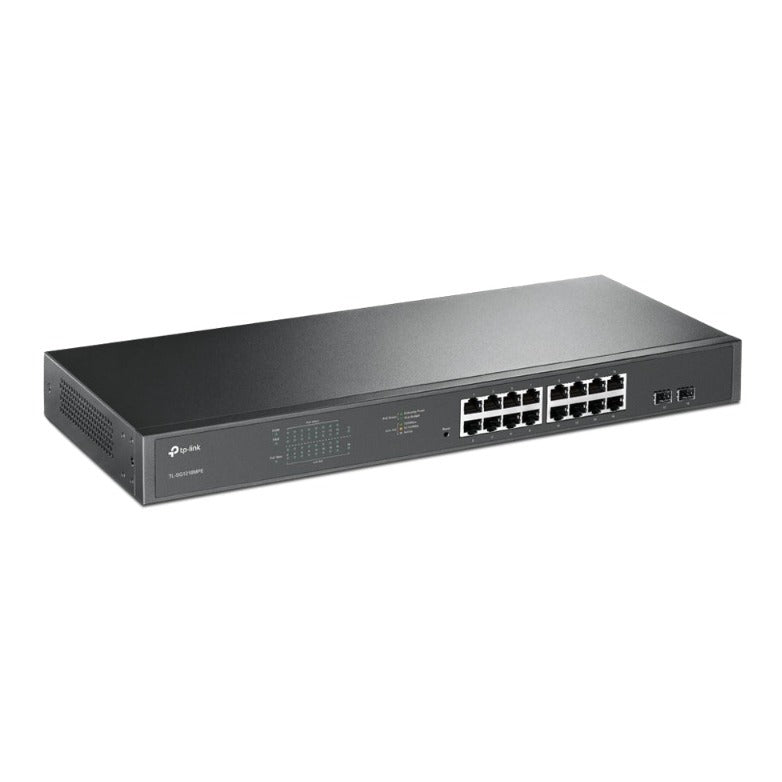

TP-LINK 18-Port Gigabit Easy Smart Switch with 16-Port PoE+ TL-SG1218MPE

Making Management Easy

TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management to Prevent Power Overload

Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.

Great Compatibility with PD Detection

Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios

The TL-SG1218MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

• Surveillance: Works with IP Cameras
• Conference: Call Works with IP Phones
• Wi-Fi Coverage: Works with Omada EAPs
• Wired Connections: Works with PCs and Printers

Specs

HARDWARE FEATURES

• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
• Interface: • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), • 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), • 2× Combo Gigabit SFP Ports
• Network Media: • 10BASE-T: UTP category 3/4/5 cable (maximum 100m), • EIA/TIA-568 100Ω STP (maximum 100m), • 100BASE-TX: UTP category 5, 5e cable (maximum 100m), • EIA/TIA-568 100Ω STP (maximum 100m), • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), • EIA/TIA-568 100Ω STP (maximum 100m), • 1000BASE-X MMF, SMF
• Fan Quantity: 2 Fans
• Physical Security Lock: Yes
• Power Supply: 100–240V AC, 50/60 Hz
• PoE+ Ports(RJ45): • Standard: 802.3at/802.3af compliant, • PoE+ Ports: Ports 1–16, • Power Supply: 250 W
• Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
• Mounting: Rack Mountable
• Max Power Consumption: • 21.4 W (220/50Hz. no PD connected), • 296.3 W (220/50Hz. with 250 W PD connected)
• Max Heat Dissipation: • 72.97 BTU/h (no PD connected), • 1010.38 BTU/h (with 250 W PD connected)

PERFORMANCE

• Switching Capacity: 36 Gbps
• Packet Forwarding Rate: 26.78 Mbps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 10 KB

SOFTWARE FEATURES

• Quality of Service: • Support Port-based 802.1p/DSCP priority, • Support 4 priority queues, • Rate Limit, • Storm Control
• L2 Features: • IGMP Snooping V1/V2/V3, • Static Link Aggregation, • Port Mirroring, • Cable Diagnostics, • Loop Prevention, • PoE Auto Recovery
• VLAN: • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs), • MTU/Port/Tag VLAN
• Management: • Web-based GUI, • Easy Smart Configuration Utility
• Transmission Method: Store-And-Forward

OTHERS

• Package Contents: • TL-SG1218MPE, • Power Cord, • Installation Guide, • Rackmount Kit, • Rubber Feet
• Operating Temperature: 0–50 °C (32–122 °F)
• Operating Humidity: 10–90% RH non-condensing
